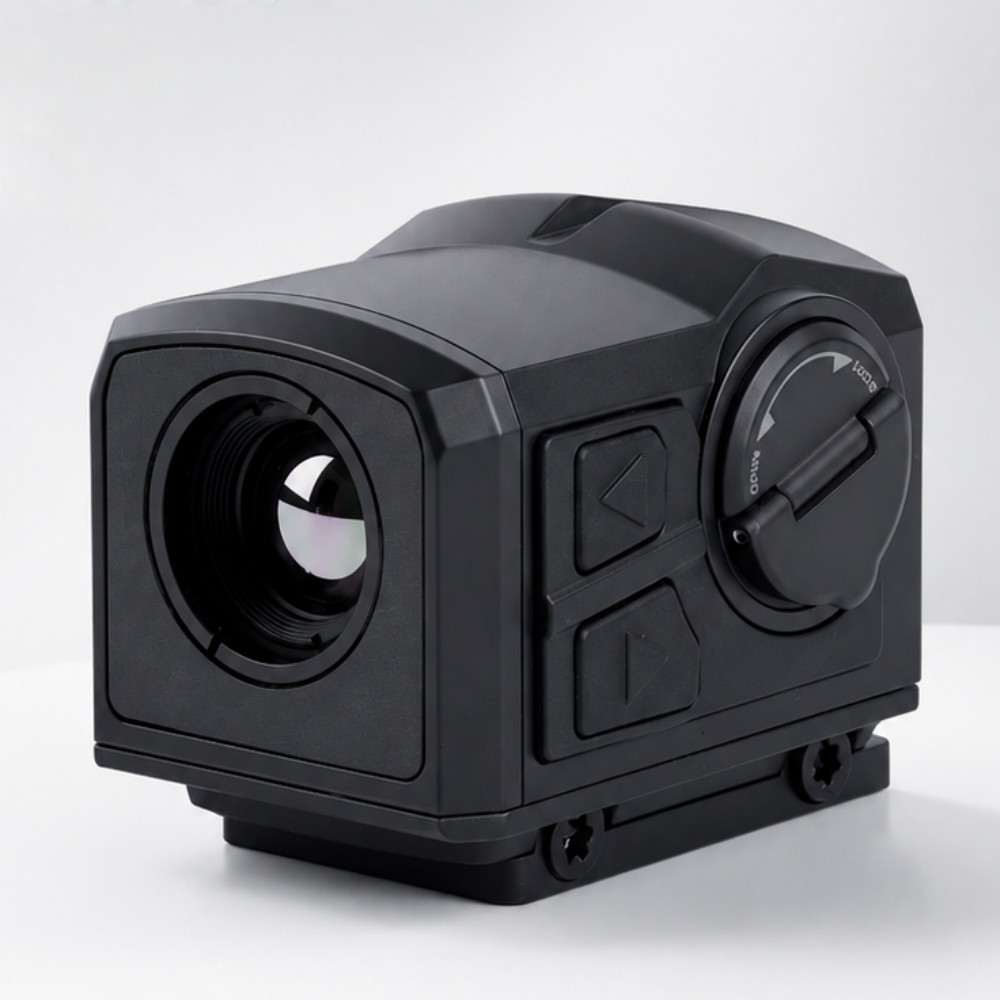

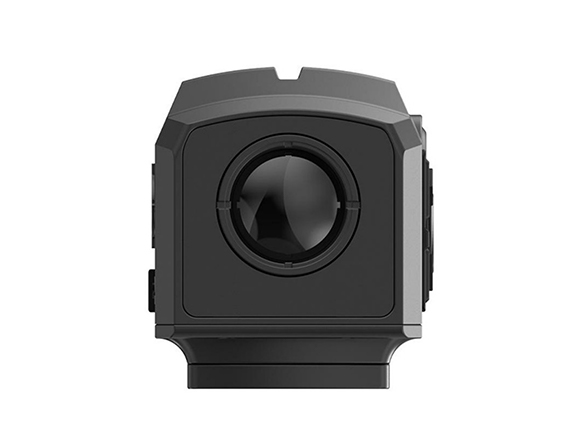

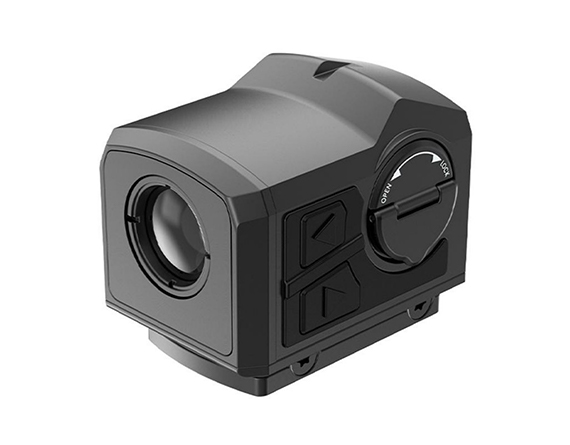

TMPR2 Thermal Imaging Device

TMPR2 Thermal Imaging Sight 12µm Pixel Pitch 60Hz Screen 100 Yards Detection Range IP66 Waterproof Compact Thermal Optical Scope

Section1
Section2
Section3
Section4
Top

Product introduction

PR2 is an advanced thermal imaging optical sight, designed to offer critical advantages in low visibility conditions. It is specifically tailored for combat personnel who need to maintain reliability and clear imaging in dark or obstructed environments.

Powered by an integrated gyro and accelerometer, the system instantly activates upon motion without pressing any buttons, enabling faster response and saving battery life

Core Capability – Thermal Imaging: It features a 256×192 resolution thermal sensor with a 12µm pixel pitch and a NETD of ≤25 mK, delivering a clear thermal signature of targets. This is displayed on a 1.4-inch 360×300 screen with a smooth 60Hz refresh rate, crucial for tracking moving targets.

Operational Durability: Engineered for demanding field use, the PR2 is IP66 rated waterproof, meaning it can be submerged up to 33 feet (10m). It’s also built to withstand recoil up to 1200g and has been tested to endure drops from 5 feet. The housing is constructed from AL7075-T6 material.

User-Centric Interface: Operations such as zeroing, switching between multiple color palettes and reticle options, and other adjustments are managed through simple touch screen controls.

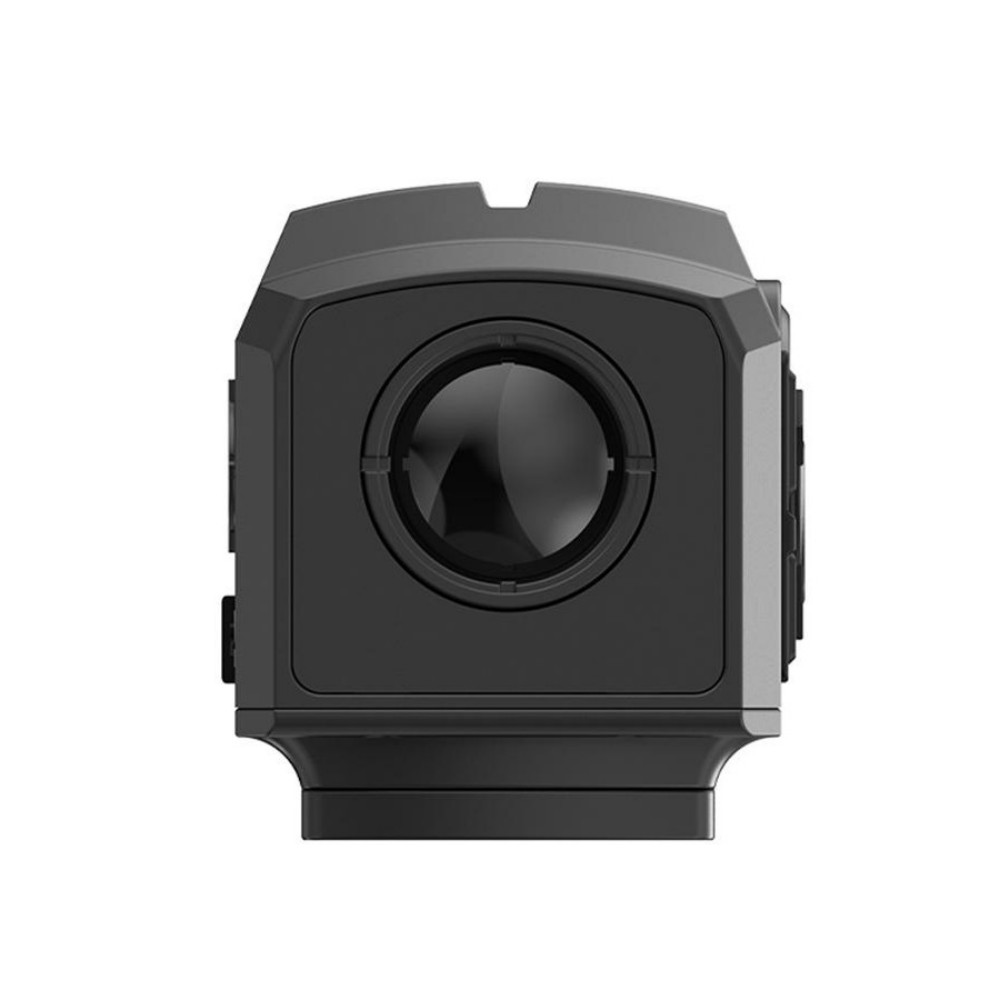

Optical Performance: It is equipped with a 13mm F1.0 objective lens. It offers a thermal detection range of approximately 100 yards, though this can vary with environmental conditions.

Ultra-Compact & Lightweight: Weighs a mere 113g and measures just ≤2×1.5×1.7′′, ensuring unhindered weapon maneuverability and operator comfort.

13.5°×10.1° Wide Field of View：Wide, dead-angle-free coverage for fast capture of moving targets without losing sight, ideal for close-range aiming scenarios.

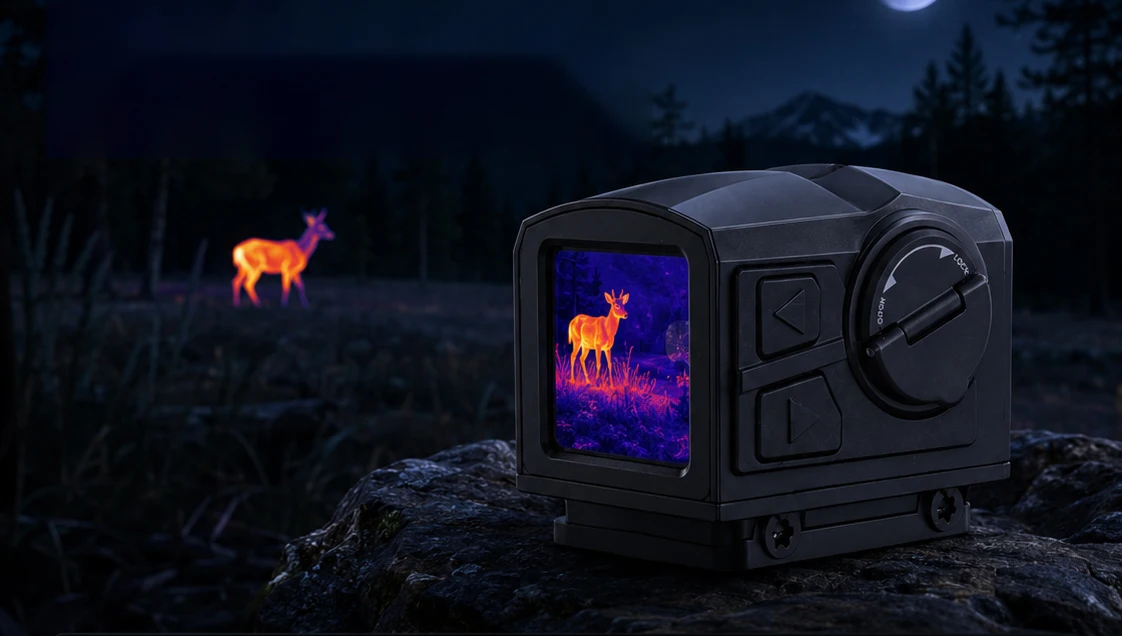

4 Thermal Imaging Color Palettes：Seamlessly switch between White Hot / Black Hot / Red Hot / Rainbow modes for clear target identification in complex day/night environments.

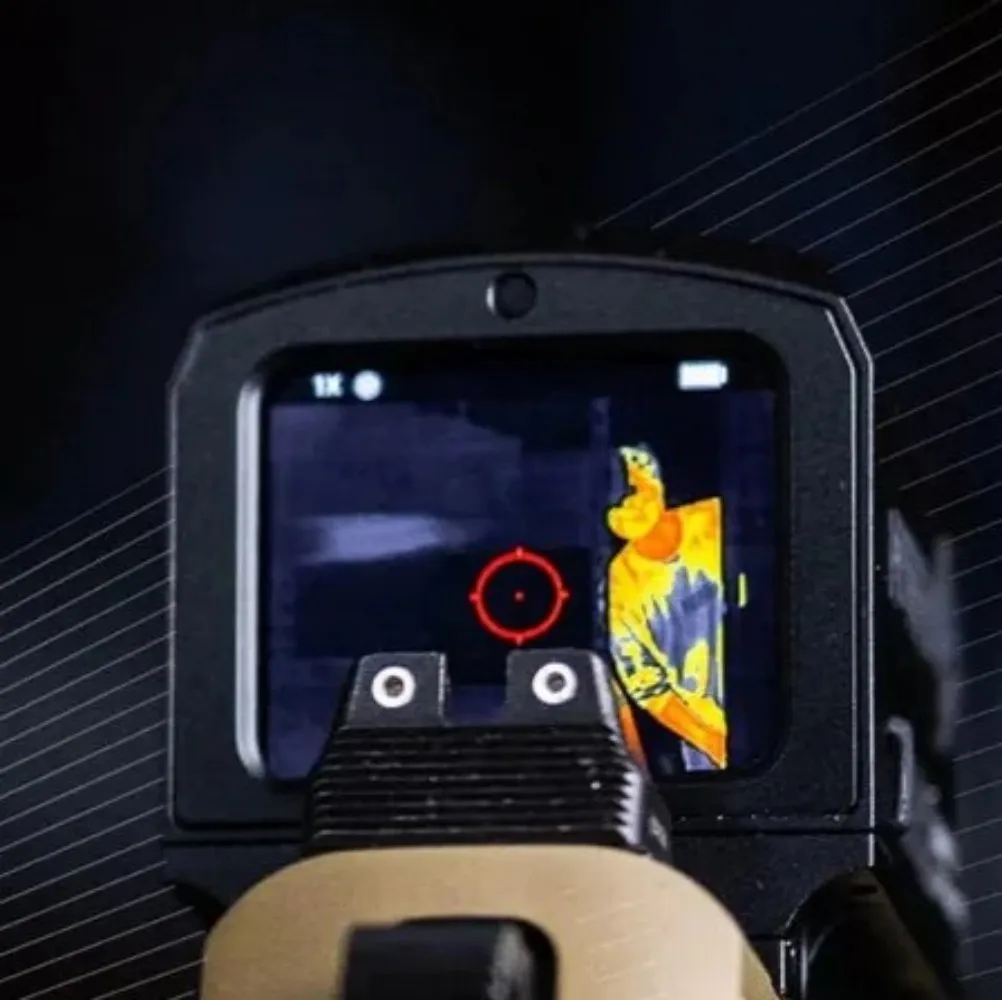

3 Reticle Types + 4 Reticle Colors：Multiple reticle styles paired with high-contrast Black/White/Red/Green options for interference-free aiming in both bright and low-light conditions.

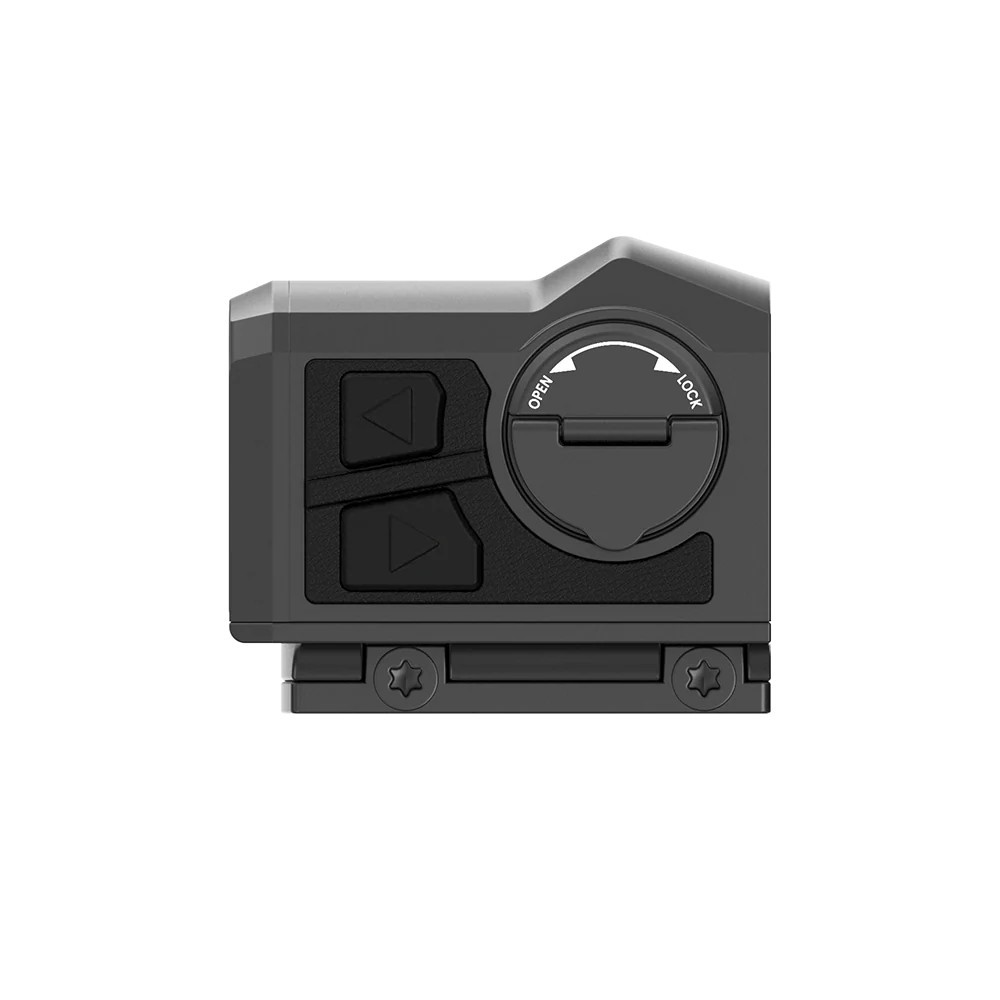

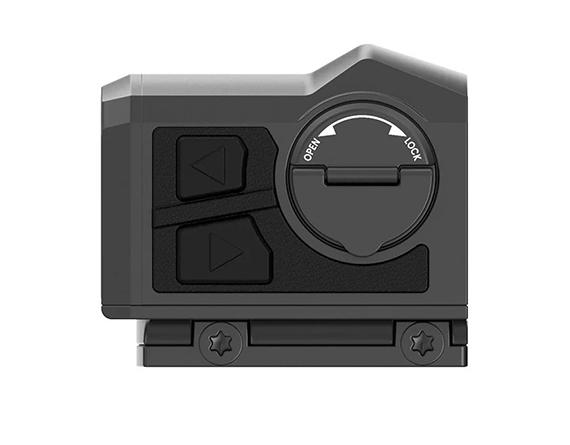

Ergonomic Blind Operation Design：Non-slip buttons and calibrated adjustment dial enable easy operation even with gloves, eliminating the need for distracted adjustments during use.

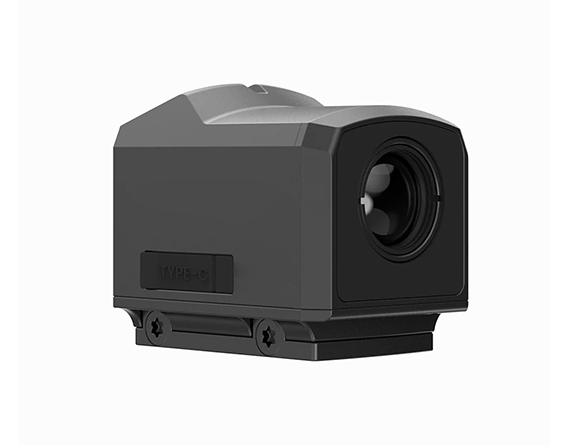

Power Solutions: Long Battery Life Up to 5,000 Hours (CR2 Battery). It also features a Type-C USB port for connecting an external power supply, which will be prioritized over the internal battery. Note that the internal battery will not charge via the USB-C port. Battery life can be affected by ambient light conditions due to an ambient light sensor that adjusts display brightness

All-Terrain Versatility：Universal compatibility for hunting, shooting sports, and outdoor use, combining fast aiming and reliable performance to meet all-scenario operational demands.

Specification

Tab1

Resolution	256×192 / 12 μm
Frame Rate	60 Hz
NETD	≤25 mK
Objective Lens	13 mm / F1.0
Magnification	0.5 x
Digital Zoom	1x, 2x
Field of View	13.5°×10.1°
Focus Range	2 yds – ∞
Display	1.4 inch, 360×300
Window Size	26 mm × 20 mm
Color Palettes	White Hot, Black Hot, Red Hot, Rainbow
Reticle Types	3
Reticle Colors	Black, White, Red, Green
Battery	1 × CR2 Rechargeable
Max. Operating Time	5 h* (at temp. = 71.6 °F)
External Power Supply	5V (USB Type-C)
Max. Recoil	200 g/s²
Operating Temperature	-20 °C ~ 50 °C
IP Rating	IP66
Weight	≤ 2.8 oz (80 g) (Without Replaceable Battery)
Dimension	≤ 2 × 1.5 × 1.7″ (50 × 38 × 44 mm)
