TMG10PRO Night Vision Monocular

TMG10 PRO helmet thermal imaging night vision monocular with five image modes thermal camera scope for hunting 640X512(50HZ)

※50Hz High Frame Rate
※Adopting the most advanced uncooled sensor+passive IR thermal Imaging Tech
※15.5°X12.4° Super Large Field of Angle
※IPX67 nitrogen filled waterproof

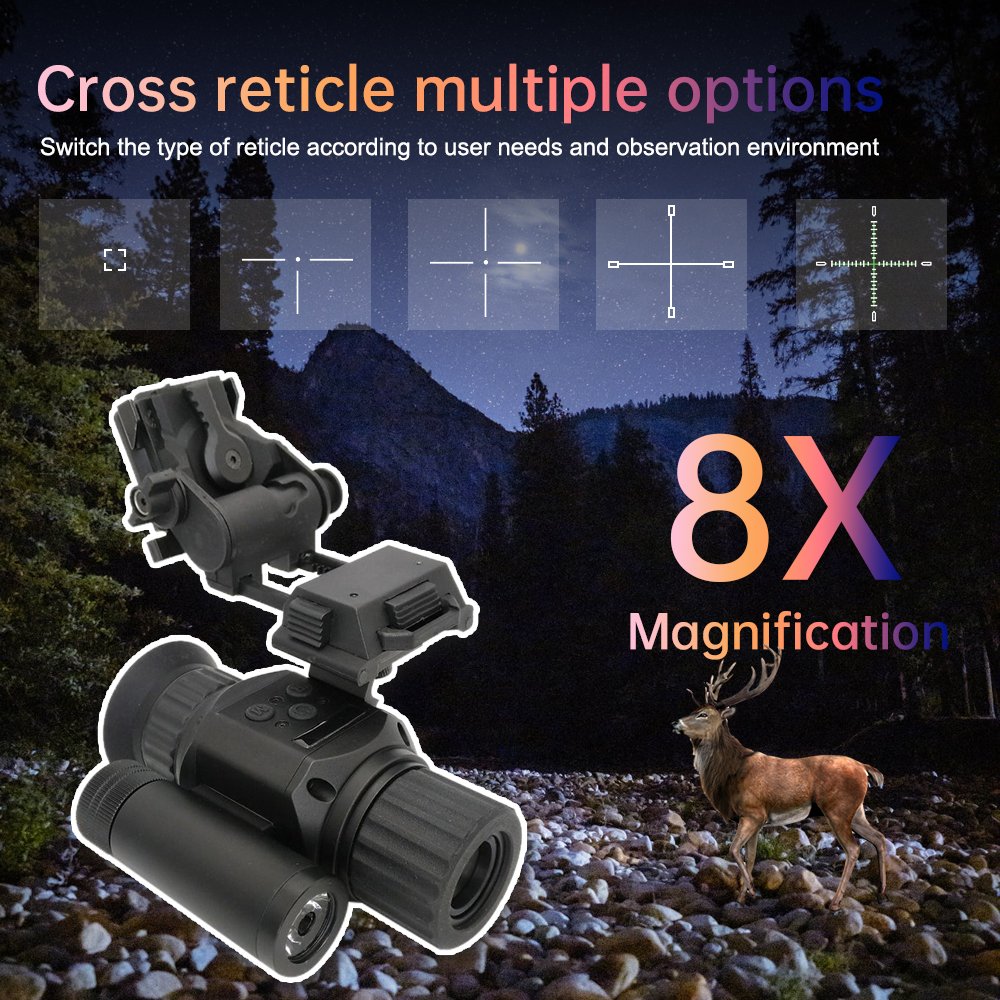

※Cross reticle multiple options
※Magnification:1x optical magnification & 8x digital zoom
※Display screen: 1920X1080 OLED screen resolution, high-frequency sensitivity detector
※Five image modes: Fusion/Red Hot/White Hot/Black Hot/Green Hot
※WIF connection,Support taking pictures,APP,Support video
After downloading the APP, connect your phone to watch the effect in real time.
※High-definition vision and field of view: Clear vision, high-definition imaging and large field of view
※Lens coating: Ultra-broadband infrared anti-reflection coating

PRODUCT DETAILS

Send Your Inquiry

Section1
Section2
Section3
Section4
Top

Product introduction

Vehicle detection distance ≥3000m
Human detection distance ≥1500m
Vehicle recognition distance ≥1500m
Person recognition distance ≥700m

Specification

Tab1

Detector resolution	640X512
Pixel size	12㎛
Operating band	8–14㎛
MRTD	≤40MK
Lens focal length	25mm
Lens magnification	1X
Eyepiece magnification	16X
Eyepiece exit pupil distance	20mm
Field Angle	12.5°X10°
focusing	2m-∞
display	0.39′ OLED
Visibility control	±5°
Detection range for vehicles	3800m
Human detection range	1500m
Identification distance to vehicle	1800m
Human identification distance	700m
Image polarity	White heat, black heat, green heat, false color, red heat
Azimuth Angle	have
Pitch Angle	have
Angle of inclination	have
Blow up	1~4 X
Internal memory	32G
Brightness control	have
Contrast control	have
support	have
battery	1 18650# rechargeable battery
Endurance time	6hour
Data interface	TYPE-C
Working environment	‐30°~＋50°
Class of protection	IP67
Size (mm)	170X67X55
Weight (including battery)	360g

Product Description

Vehicle detection distance ≥3000m
Human detection distance ≥1500m
Vehicle recognition distance ≥1500m
Person recognition distance ≥700m

RECHARGEABLE & ENVIRONMENTALLY FRIENDLY

The infrared night vision is equipped with a rechargeable lithium battery. The battery can be charged via connecting a 3350 mAh 18650 lithium battery adapter or connecting the computer through the USB cable. Easily view photos, videos and real-time shooting on the PC. With the extra 256GB memory card, store about 3 hours of 720P video or about 10,000

LIGHTWEIGHT & MULTIPLE FUNCTION

The mini thermal night vision device uses the international standard guide rail standards outdoor activities/patrol detection/security surveillance/search & rescue; such as hunting, hiking, bird watching.
