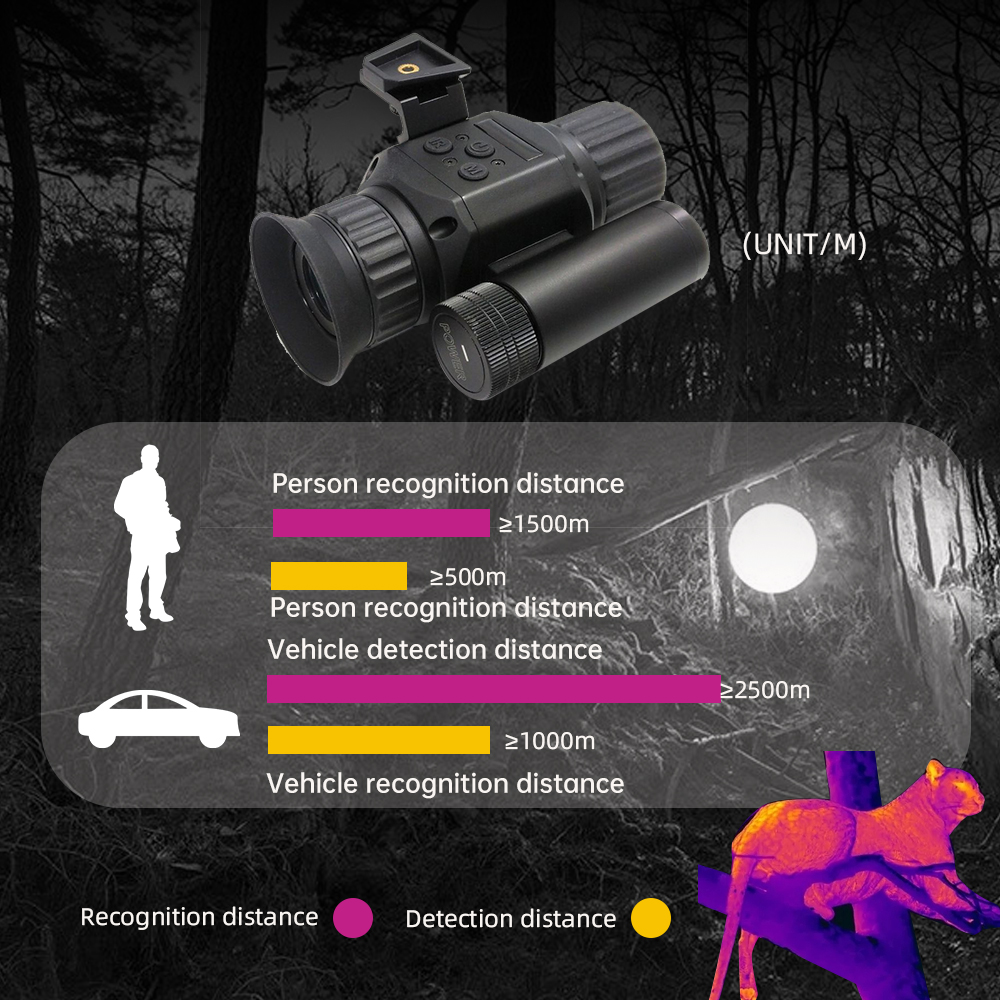

TMG10 Pro (Standard) Night Vision Monocular

TMG10 PRO Thermal Imaging Monocular for Hunting ,Both Day and Night, Five Image Modes 384×288 (50 Hz)

※Detector with 384×288 resolution for clearer field of view. (640×512 Detector is also available)
※High frame rate of 50Hz
※State-of-the-art uncooled sensors and passive infrared thermal imaging technology
※10.5°X8° large viewing angle
※IPX67 waterproof design, nitrogen filled
※Crosshair with a wide range of options
※Magnification: 1x optical magnification & 4x digital zoom
※Display: 1920X1080 OLED screen resolution, high frequency sensitivity detector
※Five image modes: Fusion/Red Hot/White Hot/Black Hot/Green Hot
※WiFi connection, support photography, APP, support video. After downloading the APP, connect your mobile phone to watch the effect in real time.
※HD field of view and field of view range: clear field of view, HD imaging and wide field of view
※Lens coating: Ultra-wideband infrared anti-reflective coating

PRODUCT DETAILS

Send Your Inquiry

Section1
Section2
Section3
Section4
Top

Product introduction

Vehicle detection distance ≥2500m
Human detection distance ≥1000m
Vehicle recognition distance ≥1500m
Person recognition distance ≥500m

Specification

Tab1

Detector resolution	384×288
Pixel size	12㎛
Operating band	8–14㎛
MRTD	≤40MK
Lens focal length	25mm
Lens magnification	1X
Eyepiece magnification	16X
Eyepiece exit pupil distance	20mm
Field Angle	10.5°X8°
focusing	2m-∞
display	0.39′ OLED
Visibility control	±5°
Detection range for vehicles	2500m
Human detection range	1000m
Identification distance to vehicle	1500m
Human identification distance	500m
Image polarity	White heat, black heat, green heat, false color, red heat
Azimuth Angle	have
Pitch Angle	have
Angle of inclination	have
Blow up	1~4 X
Internal memory	32G
Brightness control	have
Contrast control	have
support	have
battery	1 18650# rechargeable battery
Endurance time	6hour
Data interface	TYPE-C
Working environment	‐30°~＋50°
Class of protection	IP67
Size (mm)	170X67X55
Weight (including battery)	360g

Product Description

Vehicle detection distance ≥2500m
Human detection distance ≥1000m
Vehicle recognition distance ≥1500m
Person recognition distance ≥500m

RECHARGEABLE & ENVIRONMENTALLY FRIENDLY

The infrared night vision is equipped with a rechargeable lithium battery. The battery can be charged via connecting a 3350 mAh 18650 lithium battery adapter or connecting the computer through the USB cable. Easily view photos, videos and real-time shooting on the PC. With the extra 256GB memory card, store about 3 hours of 720P video or about 10,000

LIGHTWEIGHT & MULTIPLE FUNCTION

The mini thermal night vision device uses the international standard guide rail standards outdoor activities/patrol detection/security surveillance/search & rescue; such as hunting, hiking, bird watching.
