The Cameras are equipped with three passive infrared sensors, which enable the camera to trigger instantly in 0.2s of detecting movement. You will never miss any of the action going on night or day!

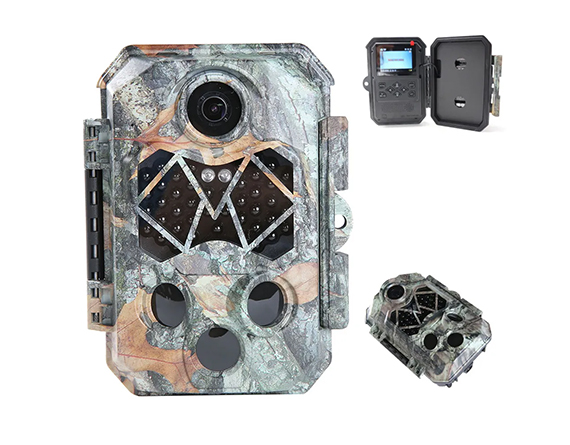

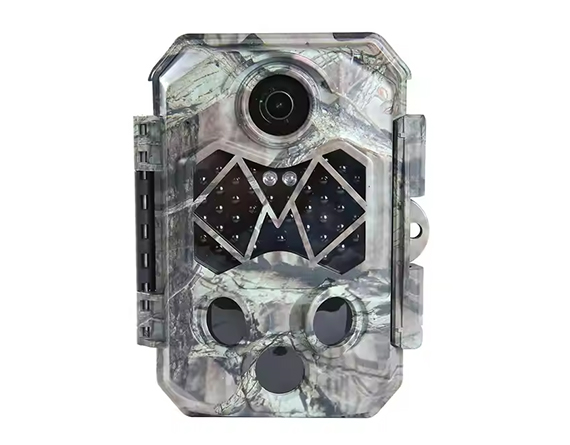

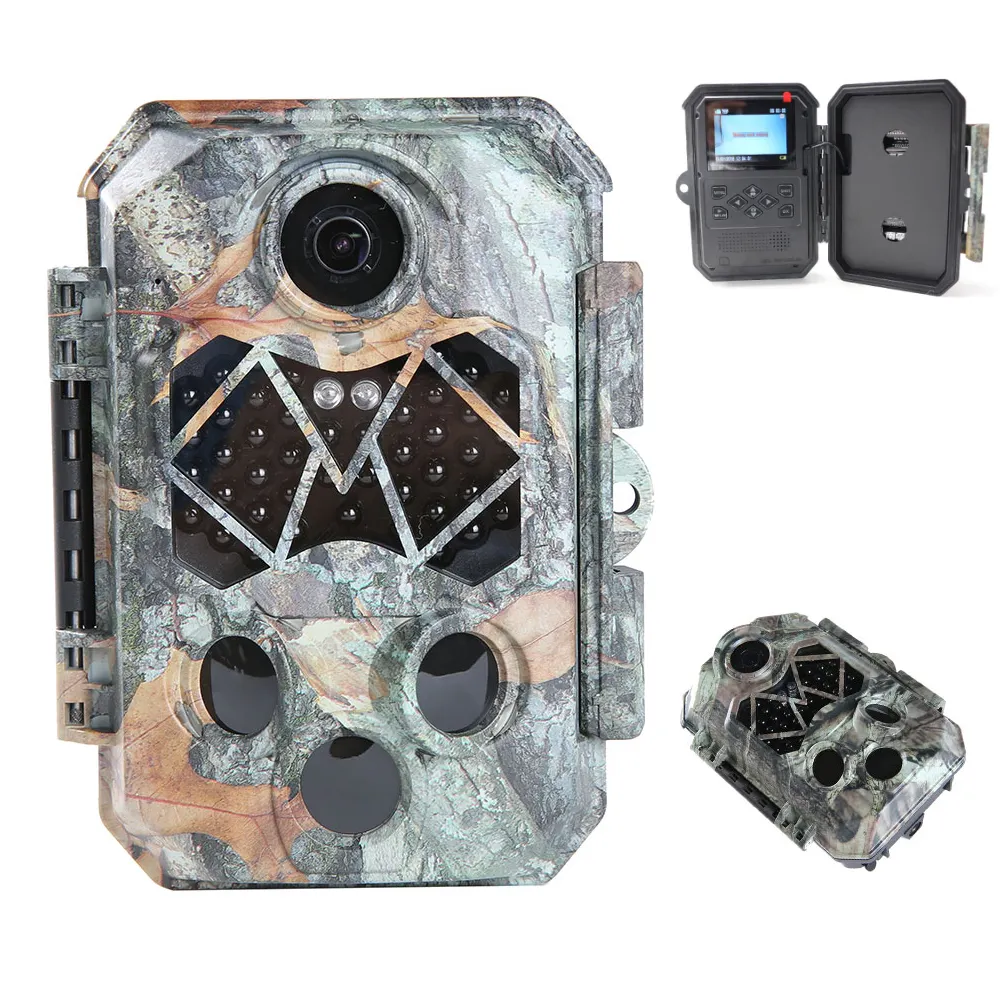

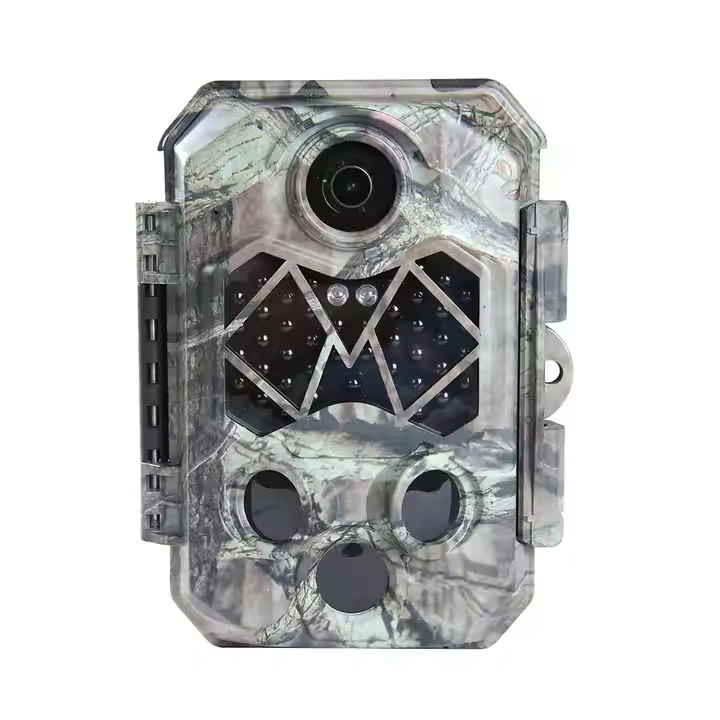

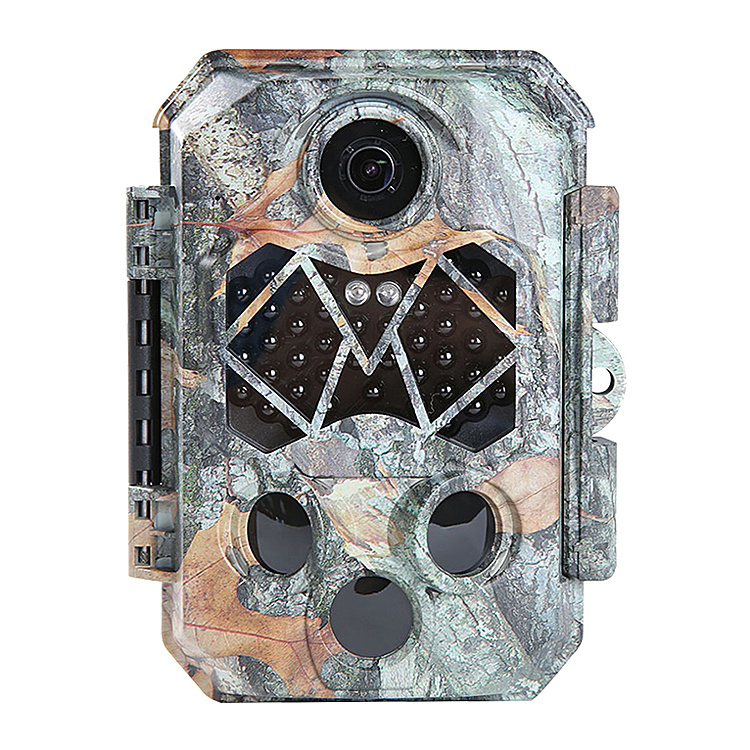

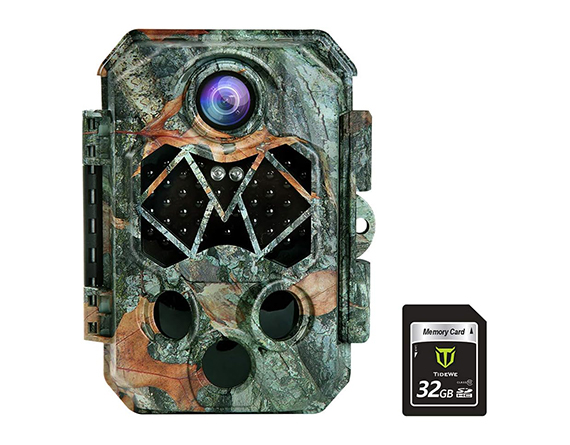

PH770-5S Hunting Camera
32MP 4K Hunting Camera with 3 PIR 120° Range Night Vision 45 LEDs Waterproof Scouting Camera for Observe Animals Home Security
Trigger Speed
32MP Clear Image & 4K Video Resolution
Excellent Night Vision
120° Wide Angle Range
User-friendly
Product introduction
【Trigger Speed】The Cameras are equipped with three passive infrared sensors, which enable the camera to trigger instantly in 0.2s of detecting movement. You will never miss any of the action going on night or day!
【32MP Clear Image & 4K Video Resolution】Cameras capture 32MP images and 4K videos, providing a clear and exciting visual.
【Excellent Night Vision】With 45 advanced infrared LEDs, the hunting camera can catch any moment even In the dark. 950nm upgraded infrared technology emits no light at night, while supporting incredible clear night vision photos without disturbing animals.

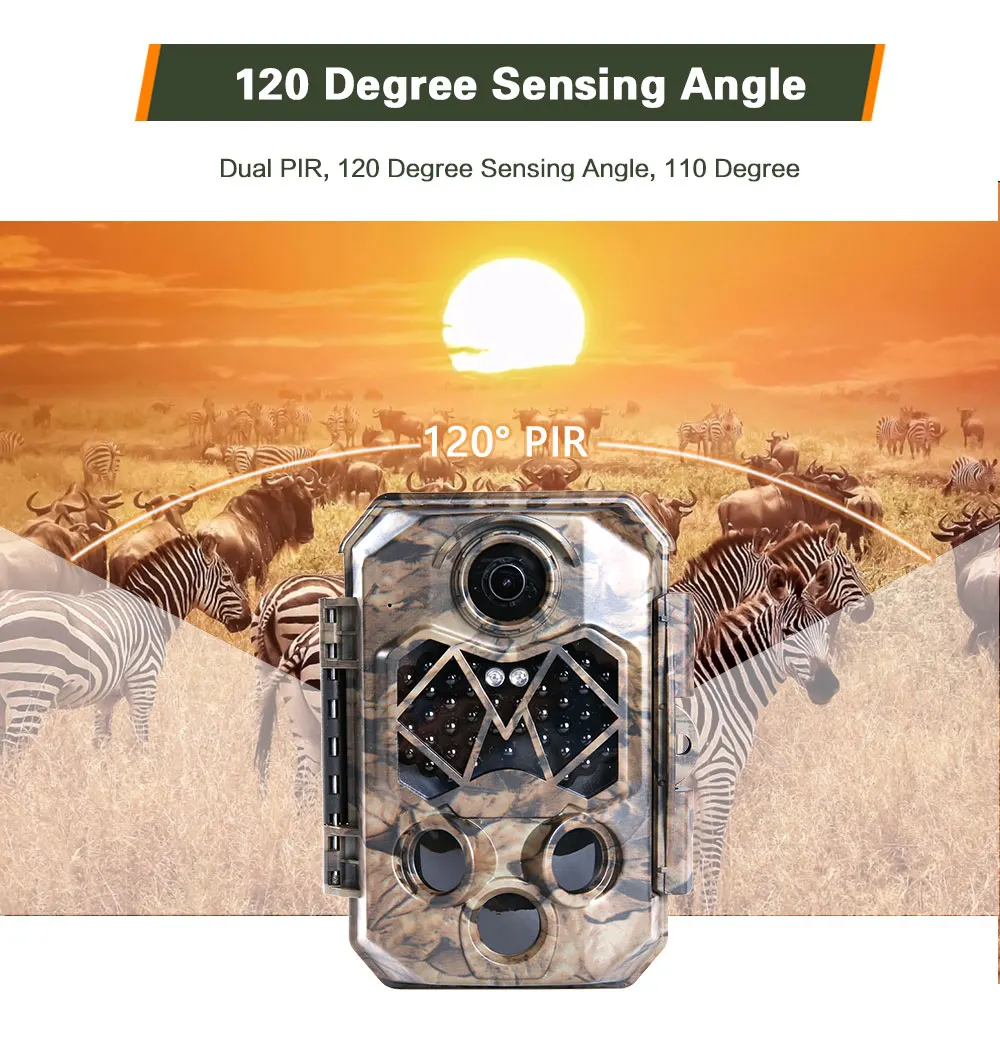

【120° Wide Angle Range】Hunting camera is designed with 120° Wide angle range. It will offer broader shooting views, and record any movements within the camera’s range.
【User-friendly】IP66 waterproofing offers ultimate protection and, enables you operate the camera in any weather. The vivid tree and leaf design increases its concealment, without disturbing wildlife.
Specification
- Tab1
|
Key Features
|
|
|
Image Sensor
|
1/2.7-Inch 5-Megapixel(2592*1944) CMOS
|
|
Stand-by Time
|
Approx 8 months
|
|
Range of IR Flash
|
120 degree,Range of IR flash 20M
|
|
Trigger Times
|
0.2-0.6 sec super fast trigger times
|
|
HD Quality
|
32MP 4K high quality images & videos
|
|
Black Low Glow 940NM IR LED/ 940NM
|
45 pieces The ‘Black No Glow’ covert infrared flash LED provides a 65 feet flash range in the dark, which makes it a stealthy unit
that does not intrude into the natural habitat. |
|
Specification
|
|
|
Image sensor
|
1/2.7-Inch 5Megapixel(2592*1944) CMOS Sensor
|
|
Lens
|
Focal Length=4mm F/NO=2.0 View Angle=98°
|
|
Storage Media
|
SD Card, up to 512GB
|
|
Mode
|
Video Photo*Video |
|
Photo resolution
|
32.0 Mega pixels
24.0 Mega pixels 20.0 Mega pixels 16.0 Mega pixels 12.0 Mega pixels 8.0 Mega pixels 5.0 Mega pixels |
|
Photo Series
|
1Photo
2 Photo in series 3 Photo in series |
|
Video resolution
|
4K: 3840*2160
2.7K: 2688*1520 1080P：1920*1080 720P： 1280*720 D1： 720*480 VGA: 640*480 |
|
File format
|
JPEG/AVI(H.264)
|
|
IR Filter
|
Full Automatic IR Filter
|
|
TFT LCD Display Screen
|
48×35.69mm (2.36″);480(RGB)*234DOT; 16M color
|
|
Main PIR sensor angle
|
40°
|
|
Side PIR sensor angle
|
L：30° R：30°
|
|
Dual PIR sensor angle
|
120°
|
|
PIR Sensing Distance
|
65ft/20 meters
|
|
Number of IR LED
|
45 IR LEDs
|
|
Max Night Vision Lighting Distance
|
65ft/20 meters
|
|
Trigger Times
|
0.2-0.6 sec super fast trigger times
|
|
Low Battery Auto Power Off
|
support
|
|
Triggering Interval
|
5second ~ 60mins (default 60 sec)
|
|
Date Time Imprint
|
Yes
|
|
Moon Phase Imprint
|
Yes
|
|
Ambient Temperature Imprint
|
Yes
|
|
Serial NO. Imprint
|
Yes
|
|
Exposure
|
Auto
|
|
Pass Word Set
|
4 bit， Digits and 26 alphabet set by yourself
|
|
Device Serial No. Set
|
4 bit， Digits and 26 alphabet set by yourself
|
|
Time Switch
|
support
|
|
Periodic shot
|
0Second~24Hours
|
|
Stand-by current
|
Lower than 0.2mA
|
|
Stand-by Time
|
Approx 8 months
|
|
Buit-in MIC
|
Yes
|
|
Bult-in Speaker
|
Yes
|
|
Interface
|
External：TV out (NTSC/PAL,MiniUSB); MiniUSB; SD Card Holder; 6V DC Power Jack
|
|
Fix Method
|
Bandage，Iron Bracket （1/4 Inch Standard Interface ）
|
|
Operation Temperature
|
-20 – 60°C
|
|
Operating humidity
|
5% ~ 90%
|
|
Power Source
|
4-8 AA Battery DC :6V-1.5A
|
|
Water proof Standard
|
IP66
|
|
Language
|
English/Deutsch/Dansk/Suomi/Svenska/Espanol/
Francais/Italiano/Nederlands/Portugues/Chinese |
|
Security authentication
|
CE, FCC,ROHS,WEEE,MSDS
|
|
Packing list
|
|
|
Product size
|
141.8x 108.5 x 72.6mm
|
|
Color box size
|
180*120*110mm
|
|
Net weight
|
650g
|
|
Carton size
|
20pcs/ctn 38.5*32.5*46 cm
|
|
Accessories
|
Mini USB Cable, Strap, User Manual, Wall Mount, Screws
|
Product Description
Trigger Speed
120° Wide Angle Range
Hunting camera is designed with 120° Wide angle range. It will offer broader shooting views, and record any movements within the camera’s range.
User-friendly
IP66 waterproofing offers ultimate protection and, enables you operate the camera in any weather. The vivid tree and leaf design increases its concealment, without disturbing wildlife.
32MP Clear Image & 4K Video Resolution
Cameras capture 32MP images and 4K videos, providing a clear and exciting visual.
Picture display
