The CMOS sensor offers clear view up to 5X magnification, premium glass lens with multiple coatings provides high quality images even in dark night with low light.
NVP540 Night Vision Scope
40mm Night Vision Monocular 5X Digital Infrared Monocular scope with Rechargeable Save Photos Videos
※ High Night Vision Camera
※ Adjustable & Comfortable
※ Digital Infrared Night Vision Monocular Hunting
※ Multi-Function IR Digital Telescope
※ Black and Camouflage Color Schemes Infrared Night Vision Monocular for You
Product introduction
High Night Vision Camera — The CMOS sensor offers clear view up to 5X magnification, premium glass lens with multiple coatings provides high quality images even in dark night with low light.
Adjustable & Comfortable — The eyepiece hood is made of environmental material, soft and pliable, it fits people wear or don’t wear glasses, and the adjustment ring can adjust the distance of exit pupil for comfortable use. Objective Adjustment Range: -1~+1 diopter.
Digital Infrared Night Vision Monocular Hunting — Infrared illuminator allows up to 200 meter viewing distance in the dark.with auxiliary lighting for clearer photo shooting and video recording.
Multi-Function IR Digital Telescope — It is easy to operate and the recording and other functions are easy to navigate. Camouflage surface is suitable for hunting, bird watching, shooting;scouting;security and surveillance;camping;exploring;nighttime navigation;night fishing;wildlife observation;hiking,travelling;scenery, etc.
Black and Camouflage Color Schemes Infrared Night Vision Monocular for You — With various accessories for equipment and easy storage and carrying.
Specification
- Tab1
|
Item
|
Value
|
|
Optical Zoom
|
5X
|
|
Digital Zoom
|
8X
|
|
Objective Lens Diameter
|
φ40mm
|
|
Eyepiece
|
Made of rubber，unfoldable，rotating focusing
|
|
Field of View
|
5°×3.75°
|
|
Diopter Arrange
|
±1º
|
|
Focal Length Adjustment
|
Focusing by rotating objective lens
|
|
Minimum Focal Length
|
1m
|
|
Eye Relief
|
20mm
|
|
Lens Coating
|
Ultra wideband infrared anti-reflection film
|
|
Camera Type
|
CMOS
|
|
Camera Pixel
|
300000 pixels
|
|
CMOS Size
|
1/3″
|
|
Infrared Illumination Wavelength
|
850nm
|
|
Visible Distance in Dim Light
|
2.5m～∞(naturall starlight）
|
|
Visible Distance in Total Darkness
|
2.5m～200m（external auxiliary infrared light）
|
|
Spectrum Range
|
400-1000nm
|
|
Dynamic Range
|
58dB
|
|
Minimum Illumination
|
0.01Lux
|
|
Infrared Power
|
1W
|
|
Infrared Illumination Adjustment
|
9 levels
|
|
Display Resolution
|
750×560
|
|
White Balance
|
Automatic
|
|
DayNight Switch
|
Automatic
|
|
Operating Temprature
|
-10℃ – 50℃
|
|
Operating Humidity
|
Max. 80%
|
|
Operating Voltage
|
3.5V – 4.2V
|
|
Battery
|
3.7V 750MAH(14500 CE)
|
|
Charging Sourse
|
5V 2A/110-220v adapter
|
|
Battery Durability After Fully Charged
|
2-3h
|
|
SD Card
|
8GB TF card，supporting 4-32GB
|
|
Video Output
|
YES
|
|
Waterproof
|
IPX4
|
|
USB Interface
|
Mini USB interface
|
|
Tripod Mount
|
1/4″
|
|
Camera Interface
|
NO
|
|
Anti-viberation
|
NO
|
|
Photo Mode
|
YES
|
|
AV Record Mode
|
YES
|
|
Screen Brightness Adjustment
|
YES
|
|
IR Illumination Adjustment
|
YES
|
|
Playback & Deletion
|
YES
|
|
Time Set
|
YES
|
|
Body Material
|
ABS+PC
|
|
Color Schemes
|
black/camouflage
|
|
Dimention(mm)
|
200×86×56
|
|
Weight
|
345g
|
Product Description
High Night Vision Camera
Adjustable & Comfortable
The eyepiece hood is made of environmental material, soft and pliable, it fits people wear or don’t wear glasses, and the adjustment ring can adjust the distance of exit pupil for comfortable use. Objective Adjustment Range: -1~+1 diopter.
Digital Infrared Night Vision Monocular Hunting
Infrared illuminator allows up to 200 meter viewing distance in the dark.with auxiliary lighting for clearer photo shooting and video recording.
Multi-Function IR Digital Telescope
It is easy to operate and the recording and other functions are easy to navigate. Camouflage surface is suitable for hunting, bird watching, shooting;scouting;security and surveillance;camping;exploring;nighttime navigation;night fishing;wildlife observation;hiking,travelling;scenery, etc.

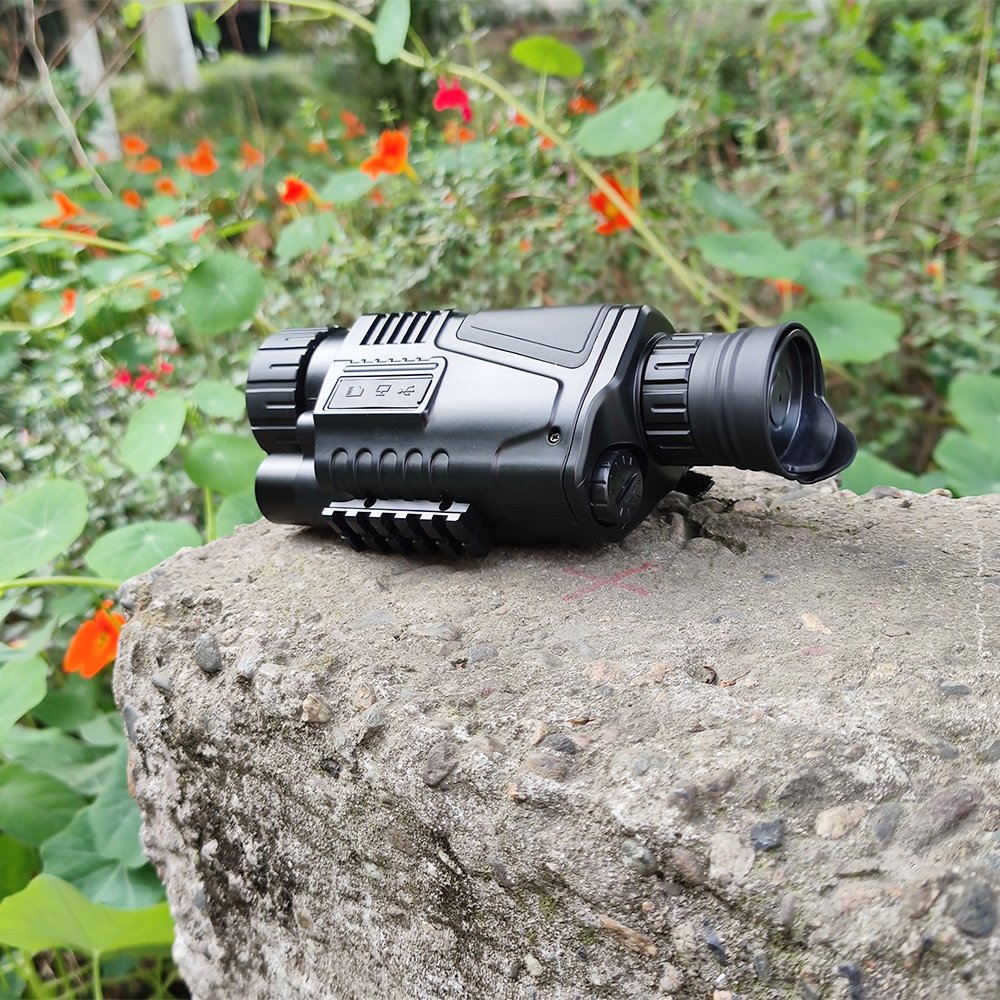

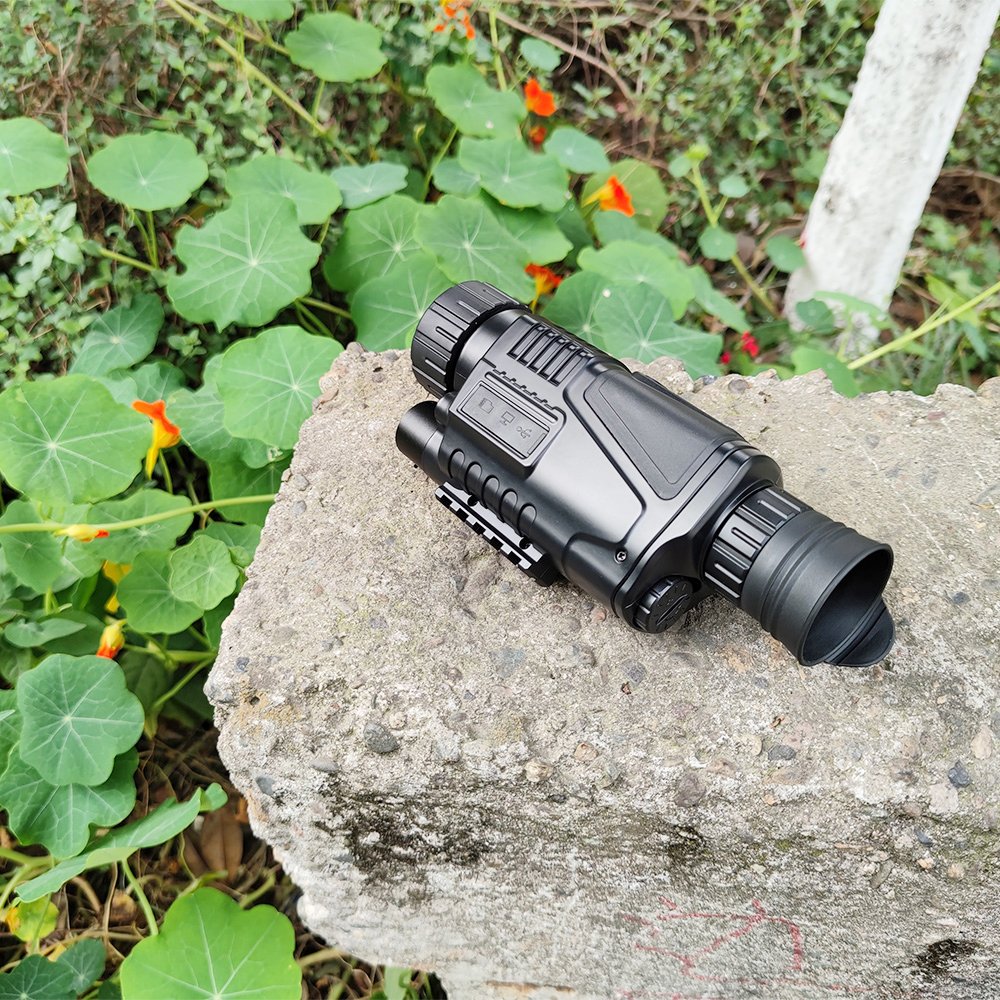

Picture display
