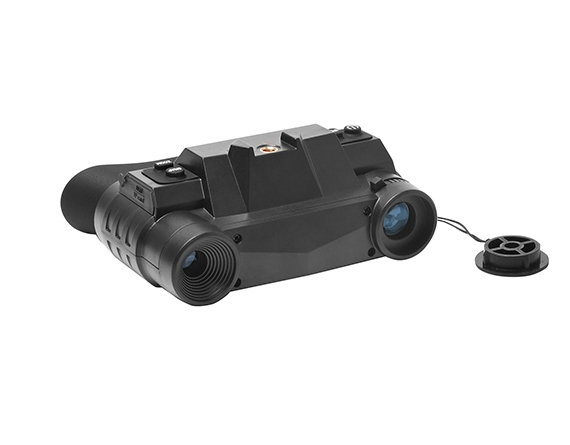

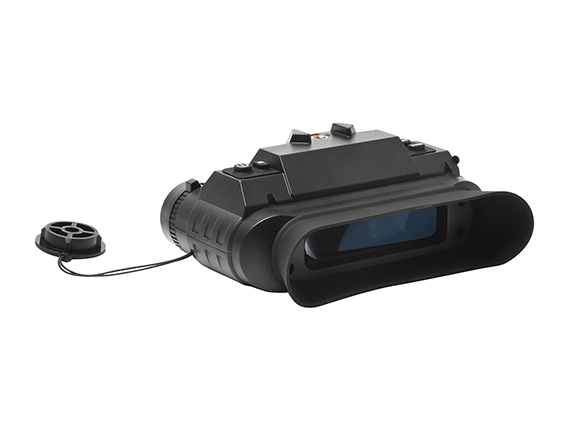

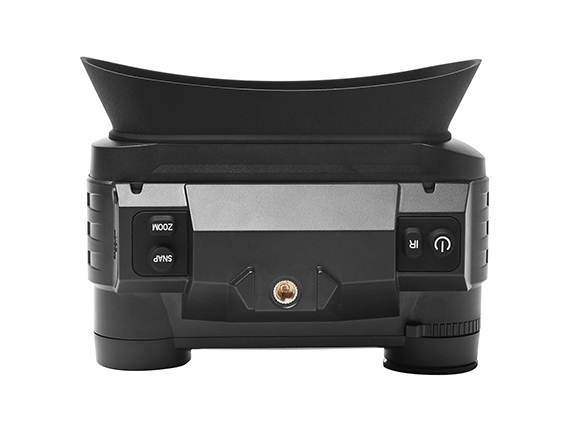

NVG-G1 Night Vision Binoculars

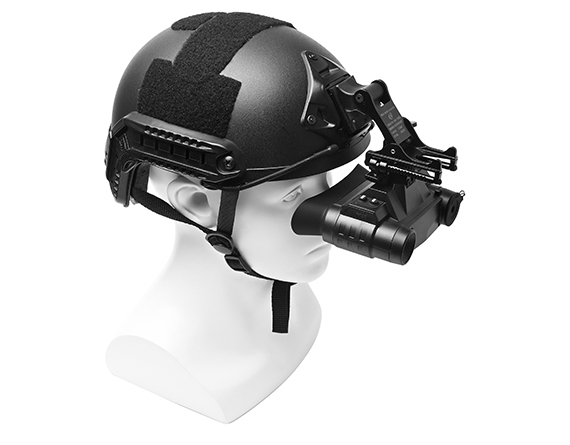

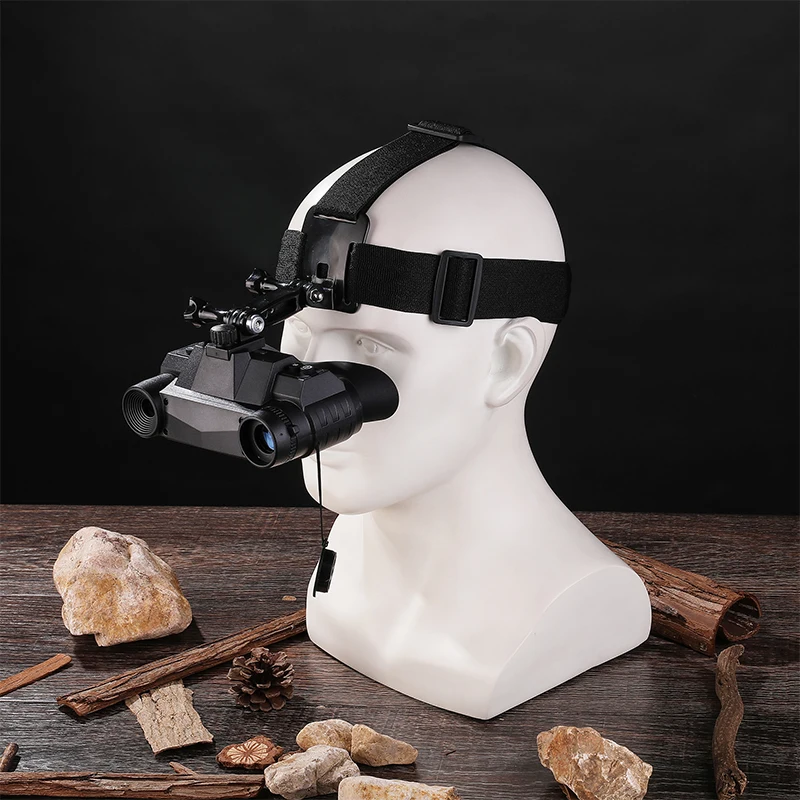

NVG-G1Digital Infrared Helmet Night Vision Goggles Rechargeable Head Mounted Tactical Night Vision Binoculars
Product introduction
Photo Resolution: 1920X1080 resolution
Resolution: 240×536 resolution AMOLED
200m~250m full black observation distance,1m~infinity low light observation distance
3.5x magnification window TF display，Inner screen is 1/2.8” 1920X1080 Resolution,7-level brightness adjustmentfree switching between single and double screens,
IR LED:3W,940nm strong infrared spotlight,7 grades infrared adjustment.
Fully independent binocular technology, can independently adjust the vision compensation of left and right eyes(refractive adjustment range +/-3, both myopia farsightedness 300 adjustment compensation)
F1.4 larger aperture,f=25mm，FOV 10° Auto power off:1 min/3 min/ 5 min/ 10 min/ OFF
3.7V,3000MAH lithium battery, 6 hours working time with IR off
Day/Night use, no fear of darkness: Dual day/night modes provide differentiated effects in different environments, providing an enhanced night vision experience.
Combined with photo taking, video recording, and playback: Capture every moment. Supports HD photo taking, video recording, and recording of surrounding sounds, time and date, with direct playback, allowing you to capture every moment happening around you.
USB data transfer and file export and viewing: Recorded videos and photos can be exported to a computer via a data cable, or synced with a computer for viewing anytime.
The weight is only 350g,Compact and lightweight is easy to carry, and its sturdy design ensures it feels effortless when worn.
Specification
- Tab1
|
Catalog
|
Function Description
|
|
Optiacal performance
|
Magnification power (1-3.5)X15
|
|
Digital Zoom magnification, Max 3.5x
|
|
|
Angle Of View 22°
|
|
|
Objective Aperture 15mm
|
|
|
Exit Pupil Distance 40mm
|
|
|
F# for Objective lens 1.3
|
|
|
Video Output
|
240×536 resolution AMOLED
|
|
OSD menu display
|
|
|
Imager
|
CMOS High-sensitivity Sensor
|
|
Size 1/2.8”
|
|
|
Resolution 1920X1080
|
|
|
IR LED
|
3W Infared LED with 940nm
|
|
TF Card
|
Support SDHC 4GB~128GB TF Card
|
|
Operation
|
Preview
|
|
Record MOV file in TF card storage
|
|
|
Playback media file from TF card storage
|
|
|
Power
|
External power supply – TypeC 5V/2A
|
|
2pcs CR123A battery 4V-6V / 16340 Li battery 6.2V-8.2V
|
|
|
Battery life: 6 hours working time with IR off
|
|
|
Low battery warning
|
|
|
System
|
3modes ( Video, Playback,Menu)
|
|
Video Record
|
|
|
Playback Video
|
|
|
Delete Video
|
|
|
5 levels IR switch for USB power,3 levels IR switch for battery.
|
|
|
Auto Power Off (Off/3min/ 5min/10min)
|
|
|
Language: 简体中文/English / Français/ Deutsch/ Italiano/ Espanol/ Svenska/ Polski/ русский/9 LANGUAGES
|
|
|
Night mode (green phos/Monochrome/ Red Cast)
|
|
|
Light Freq. 50/60HZ
|
|
|
Format
|
|
|
OLED Brightness 4 Levels
|
|
|
Version
|
|
|
Size
|
size 140mmx105mmx58mm
|
|
Weight 300g (without battery)
|
|
|
package
|

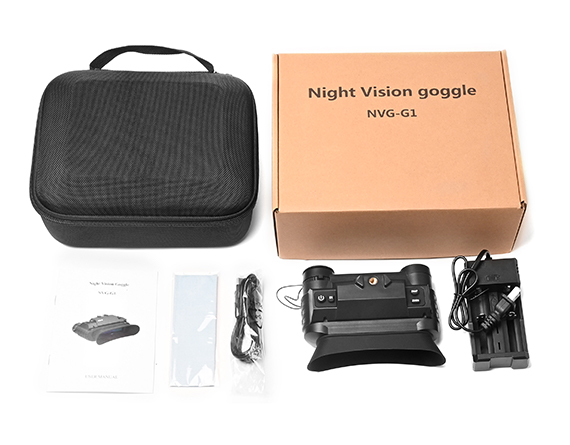

USB cable/ AV cable/TF card/ Bag/Manual/Head Strap
|
Product Description
Photo Resolution: 1920X1080 resolution
Resolution: 240×536 resolution AMOLED
200m~250m full black observation distance,1m~infinity low light observation distance
3.5x magnification window TF display，Inner screen is 1/2.8” 1920X1080 Resolution,7-level brightness adjustmentfree switching between single and double screens
3.7V,3000MAH lithium battery, 6 hours working time with IR off
Day/Night use, no fear of darkness: Dual day/night modes provide differentiated effects in different environments, providing an enhanced night vision experience.
Combined with photo taking, video recording, and playback: Capture every moment. Supports HD photo taking, video recording, and recording of surrounding sounds, time and date, with direct playback, allowing you to capture every moment happening around you.
Picture display
