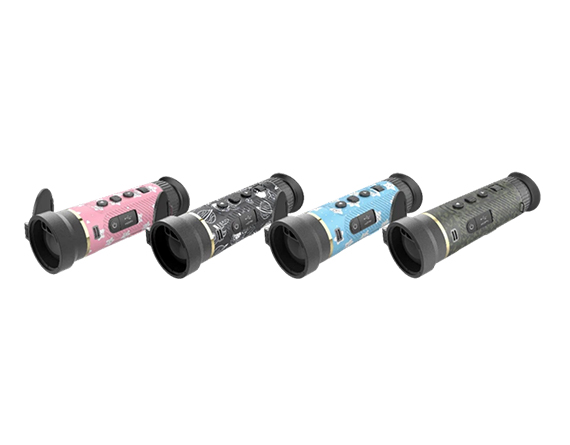

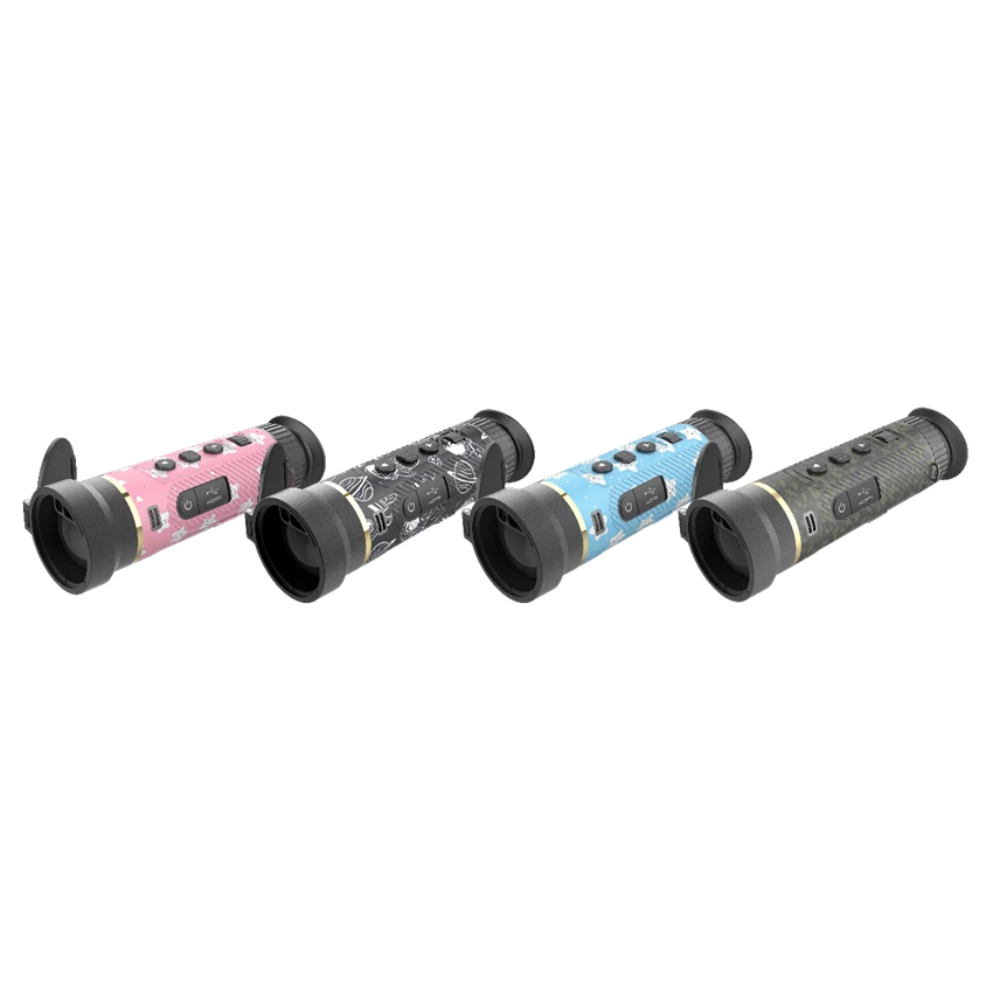

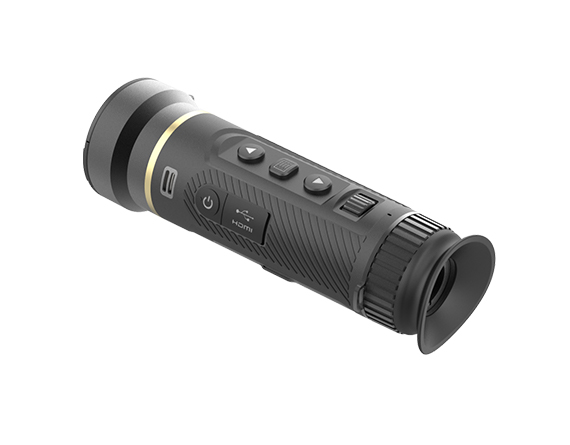

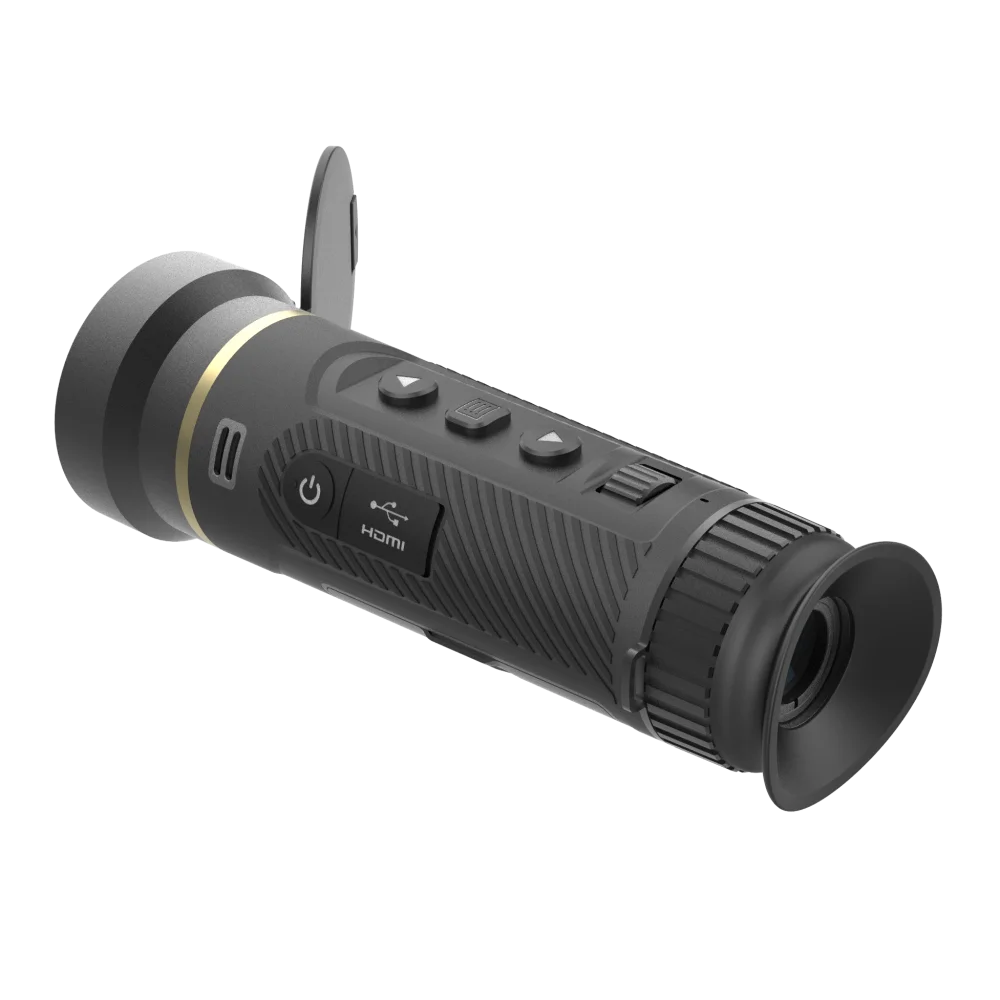

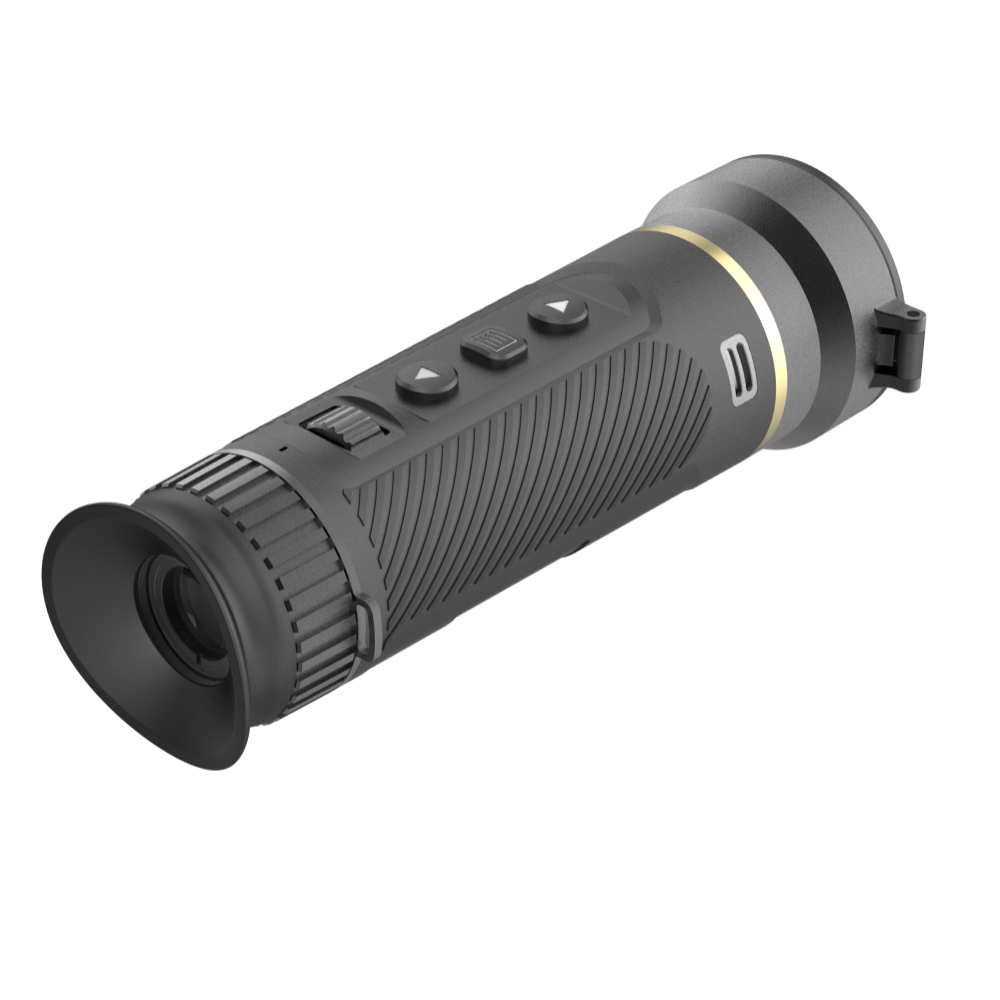

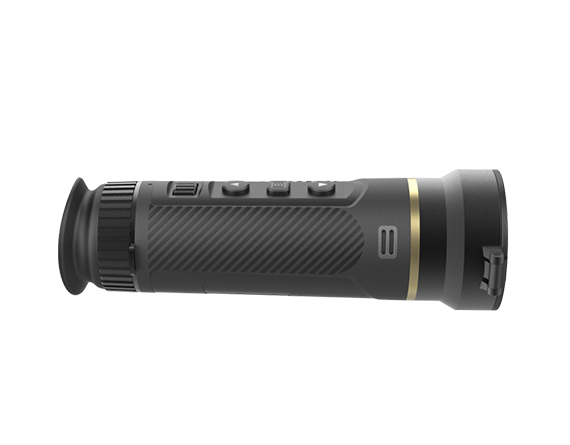

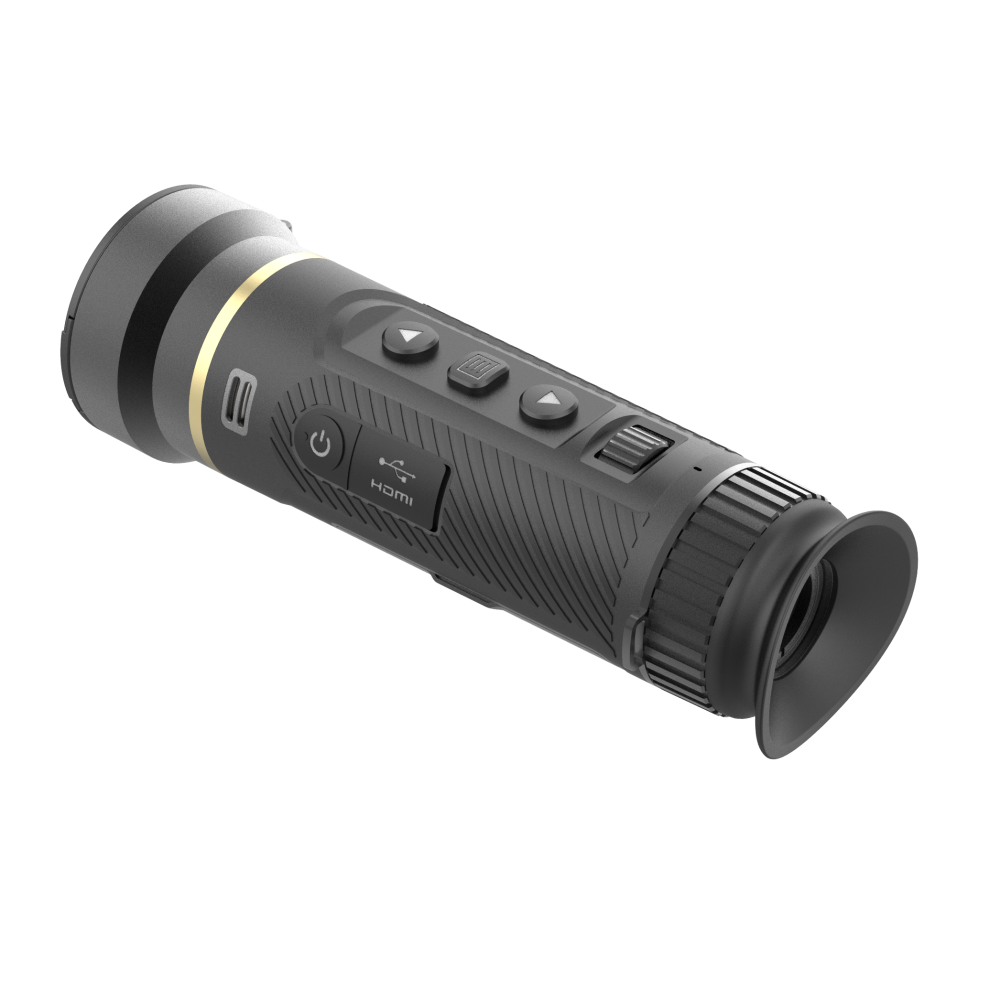

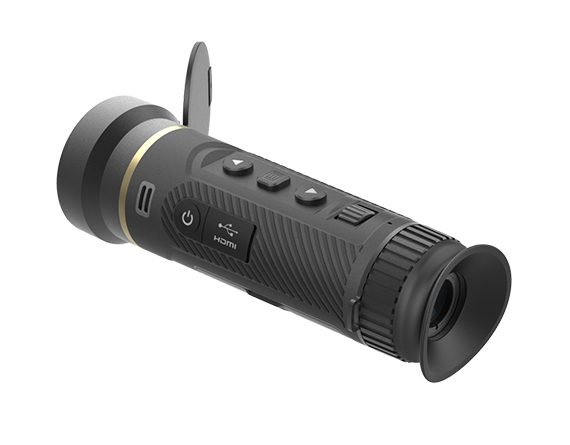

Discoverer650-LRF-Pro/ Discoverer650 Thermal Imaging Device

Handheld Thermal Imaging Monocular for Hunting 0.39 AMOLED Touchscreen Thermal Monocular 640×512(50Hz) 12um Outdoor Camping

Product introduction

The Discoverer650 Handheld Thermal Monocular is a high-performance device designed for those who require exceptional thermal imaging in a compact and user-friendly form. Equipped with a 640×512 thermal sensor, a 12μm pixel pitch, and a NETD of <20mK, the Discoverer650 offers stunning image clarity and the ability to detect heat signatures from a distance of up to 3500 meters. Its 50mm f0.9 objective lens enhances the device’s performance, capturing even the smallest temperature variations with precision. Whether you are tracking wildlife, conducting surveillance, or engaged in outdoor activities, this monocular ensures that no heat source goes unnoticed.
*12um uncooled infrared detector, NETD≤20mk;
*1024×768 resolution with 0.39 inch AMOLED display;
*AI-based automatic target recognition function
*Stable and reliable automatic target tracking function
*Color Palette:White Hot/Black Hot/Red Hot/Fusion/Golden Hot etc.
*Equipped with an electronic compass for real-time orientation awareness;
*Support Attitude sensor
*Intelligent ballistic function
*Storage Built-in EMMC (32GB);

High Resolution Thermal Imaging Scope

The thermal imaging scope is equipped with a 640*512 VOx uncooled detector and a 50 mm F0.9 lens, Frame rate 50Hz,A large field of view of 8.7°x7.0°,providing ultra-clear and detailed infrared thermal images for both day and night use. The detection range for humans is 3500 m, and the recognition range is 590 m., this thermal scope ensures users can spot and identify targets at long distances with confidence.

Low-Profile LRF

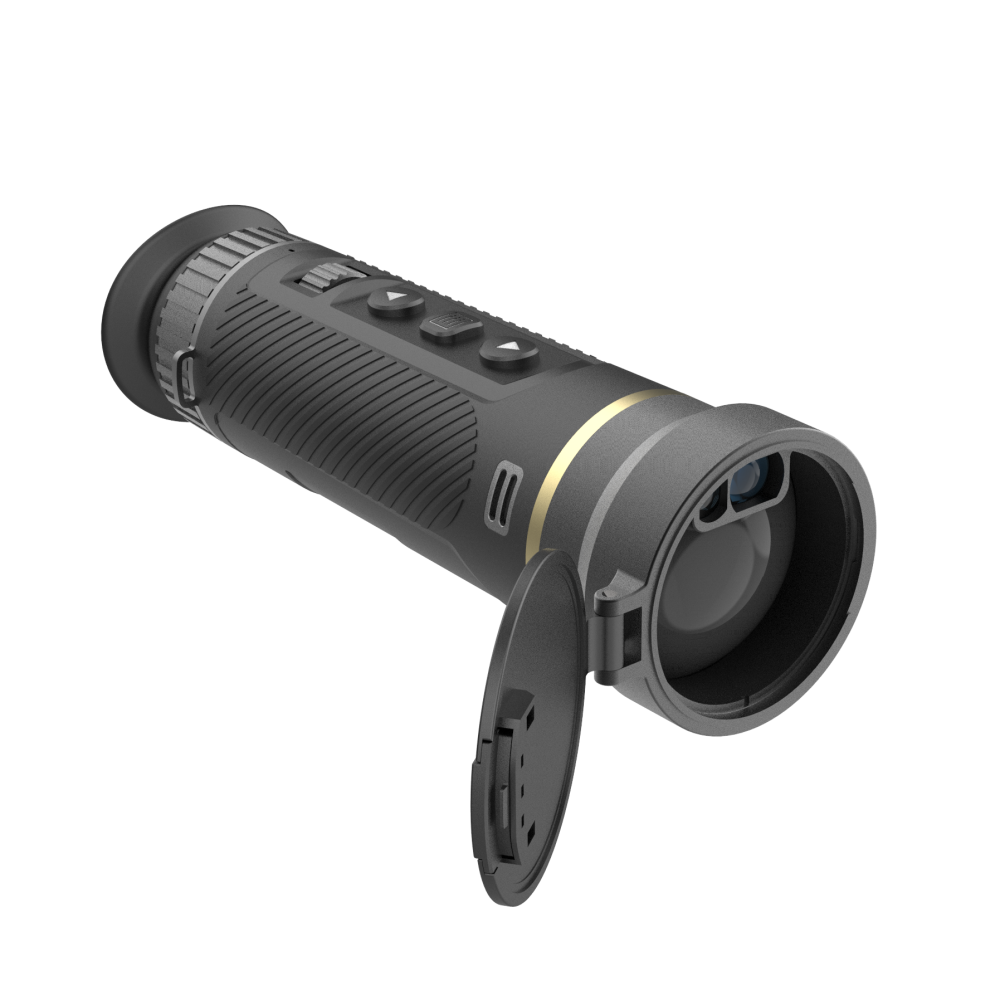

Discoverer650 905nm laser rangefinder is built directly into the lens, not added as a separate module. This specific design keeps the scope compact and balanced with no extra bulk on the housing. The integrated LRF delivers accurate distance readings out to 1,000 meters, giving you precise range data without affecting handling or field of view. You get a clean, streamlined scope that measures distance while maintaining a natural shooting position.

Smart Thermal Scope Functions & Advanced Features

The supports digital zoom 1x/2x/4x, multiple color palettes (White Hot/Black Hot/Red Hot/Fusion/Golden Hot etc.). With WiFi transmission, video & audio recording, snapshots, this thermal scope also works as a thermal monocular and thermal imaging camera for outdoor adventures.

Rugged & Lightweight Thermal Scope Design

Built for demanding environments, the features IP67 waterproof housing, <=1000 g shock resistance, and works in minus 20℃ to plus 50℃. Its compact <=630g body ,1 Lithium battery 21700(5000mah)>=4 h battery life make it portable for camping, hiking, wildlife observation,farm inspection, and search & rescue missions.

Knob Focus

Discorverer’s focus is controlled by a single knob placed for easy reach. Direct and does not interfere with your view or grip, a setup lets you fine-tune the image quickly without breaking your shooting position.

Specification

Item category
Discoverer650-LRF-Pro
Discoverer650
Thermal Module
Image Sensor
UFPA (VOx)
UFPA (VOx)
Resolution
640×512
640×512
Pixel Pitch
12µm
12µm
Frame Rate
50Hz
50Hz
NETD
≤20mk
≤20mk
Spectral Range
8-14µm
8-14µm
Optical Parameter
Focal length / Aperture
50mm; F0.9
50mm; F0.9
Field of View
8.7°×7.0°
8.7°×7.0°
Focusing Mode
Focus Roller
Focus Roller
Eye Relief / Exit Pupil
15mm / 6mm
15mm / 6mm
Diopter
+5D to -5D
+5D to -5D
Detection Range
3.5km (Human; 2pixels)
3.5km (Human; 2pixels)
Recognition Range
590m (Human; 12pixels)
590m (Human; 12pixels)
Image Display
Screen
AMOLED, 0.39 inch
AMOLED, 0.39 inch
Resolution
1024×768
1024×768
Brightness Adjustment
Support
Support
Contrast Adjustment
Support
Support
Image Denoising
Support
Support
Image enhancement
Support
Support
Color Palette
White Hot/Black Hot/Red Hot/Fusion/Golden Hot etc.
Digital Zoom
1×; 2×; 4×
1×; 2×; 4×
Power Supply
Battery type & Number
1 Lithium battery
1 Lithium battery
Battery Parameter
21700(5000mah)
21700(5000mah)
External Power Supply
DC 5V (USB Type-C)
DC 5V (USB Type-C)
Power Consumption
≤2.2W(25℃)
≤2.2W(25℃)
Battery Operating Time
≥9h (25℃)
≥9h (25℃)
Peripheral
Electronic Compass
Support
Support
Attitude Sensor
Support
Support
WIFI / Bluetooth
Support; 2.4G
Support; 2.4G
Storage
Built-in EMMC (32GB)
Built-in EMMC (32GB)
Distance Measurement
Laser,905nm
Ranging Distance & Accuracy
1Km; ±1m
General
Video Output Interface
Micro HDMI (Type D)
Micro HDMI (Type D)
Data Transmission Interface
USB (Type-C)
USB (Type-C)
Protection Level
IP67
IP67
Operating Temperature
-20°C to +50°C
-20°C to +50°C
Max. Recoil
1000g/0.4ms
1000g/0.4ms
Weight(without battery)
≤660g
≤635g
Dimension
198×66.5×66.5(mm)
198×66.5×66.5(mm)

Picture display
