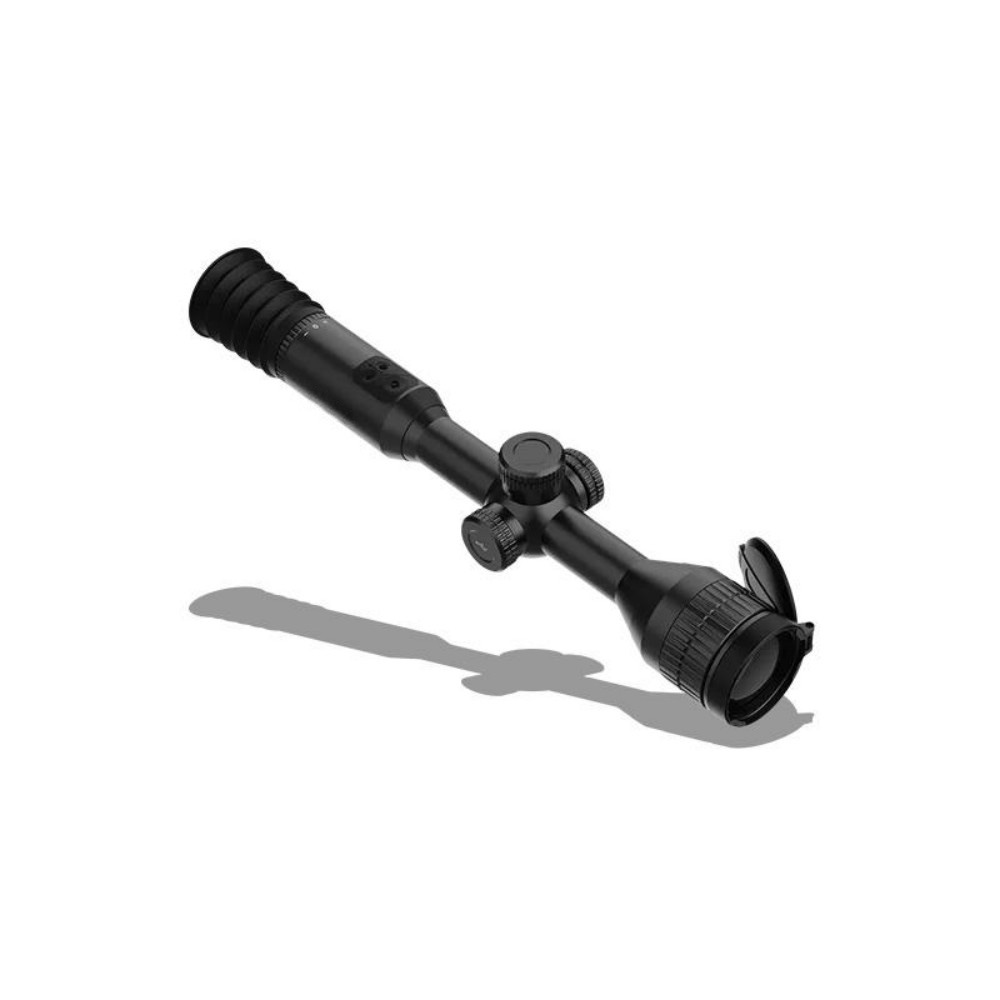

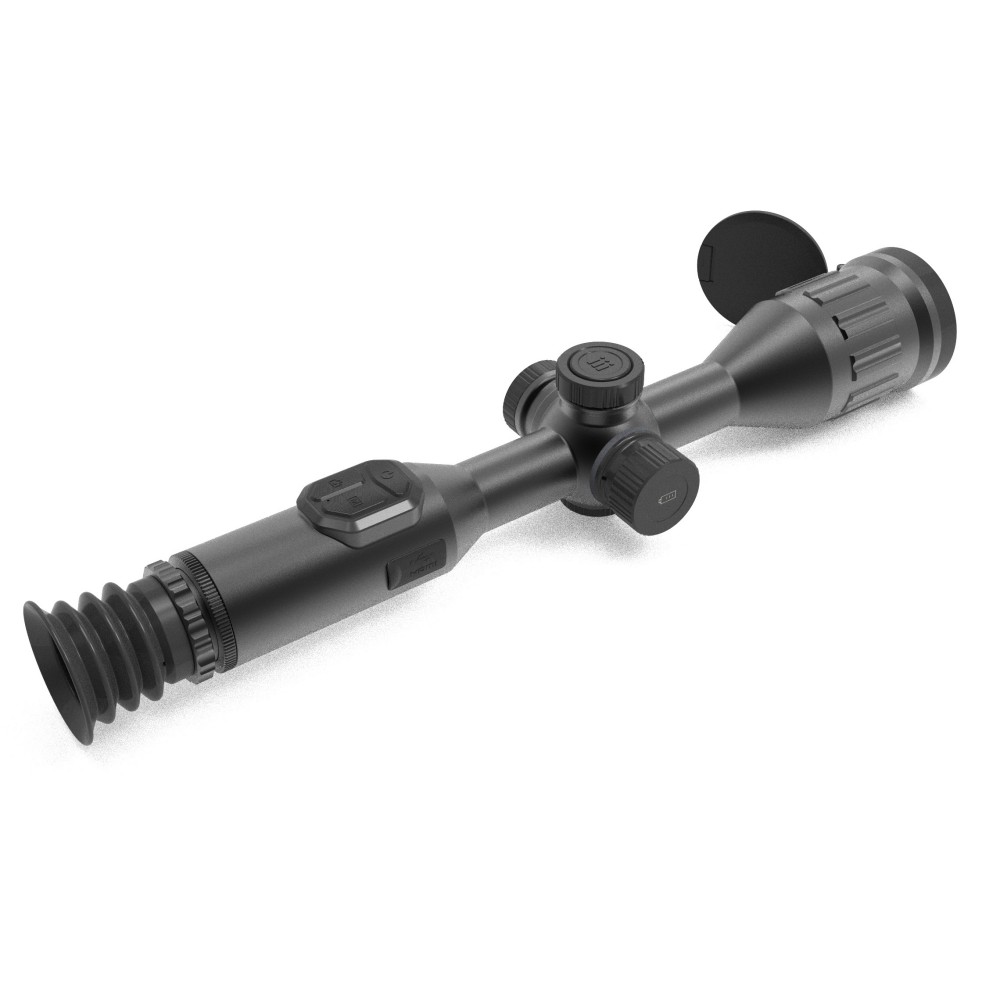

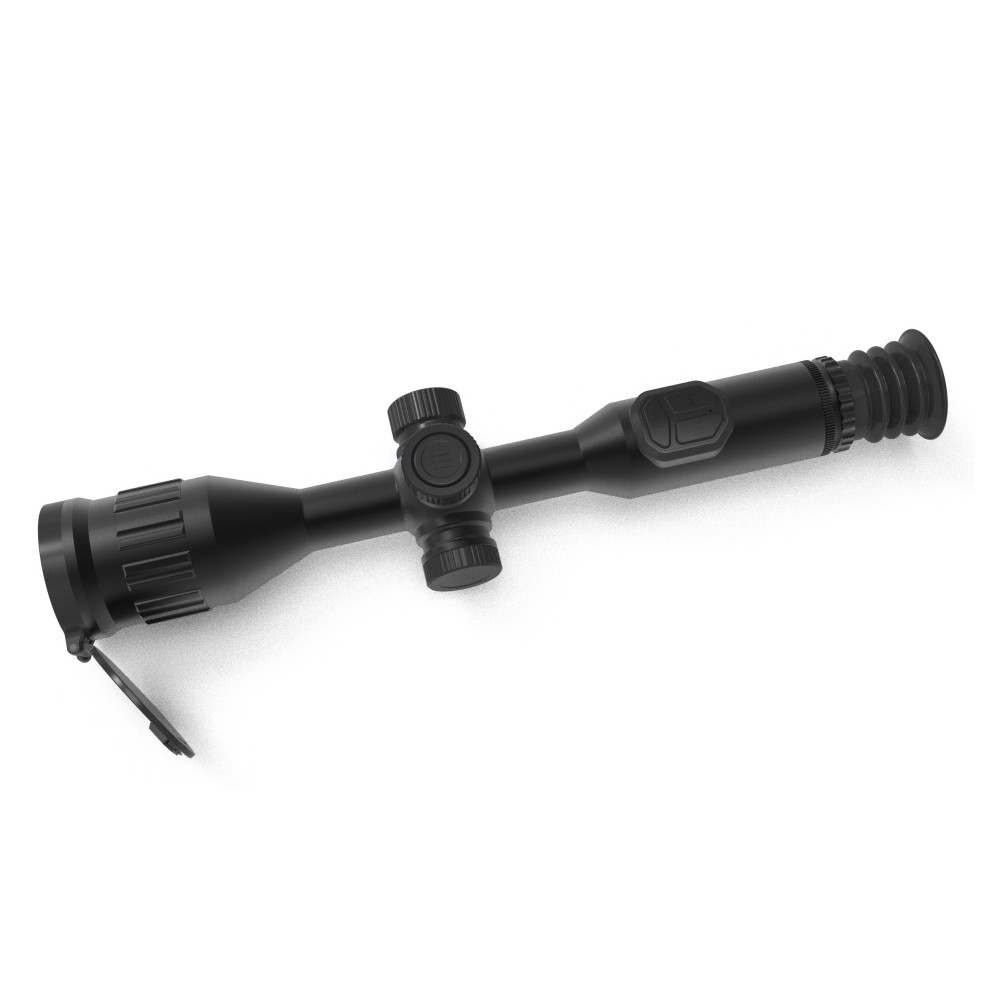

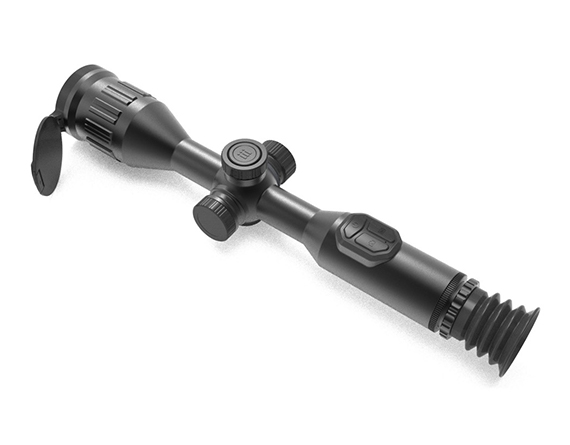

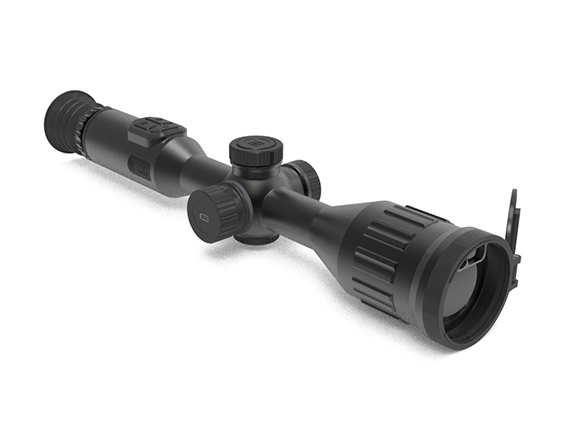

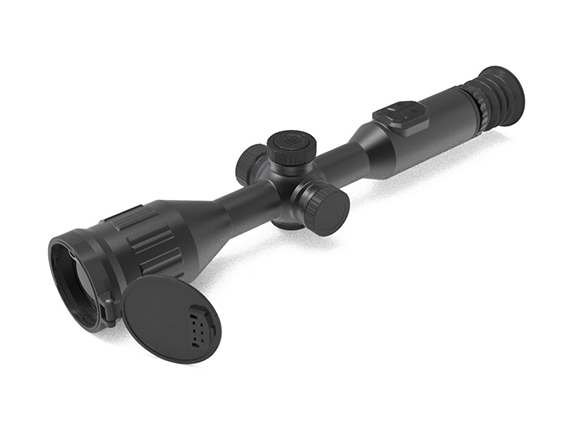

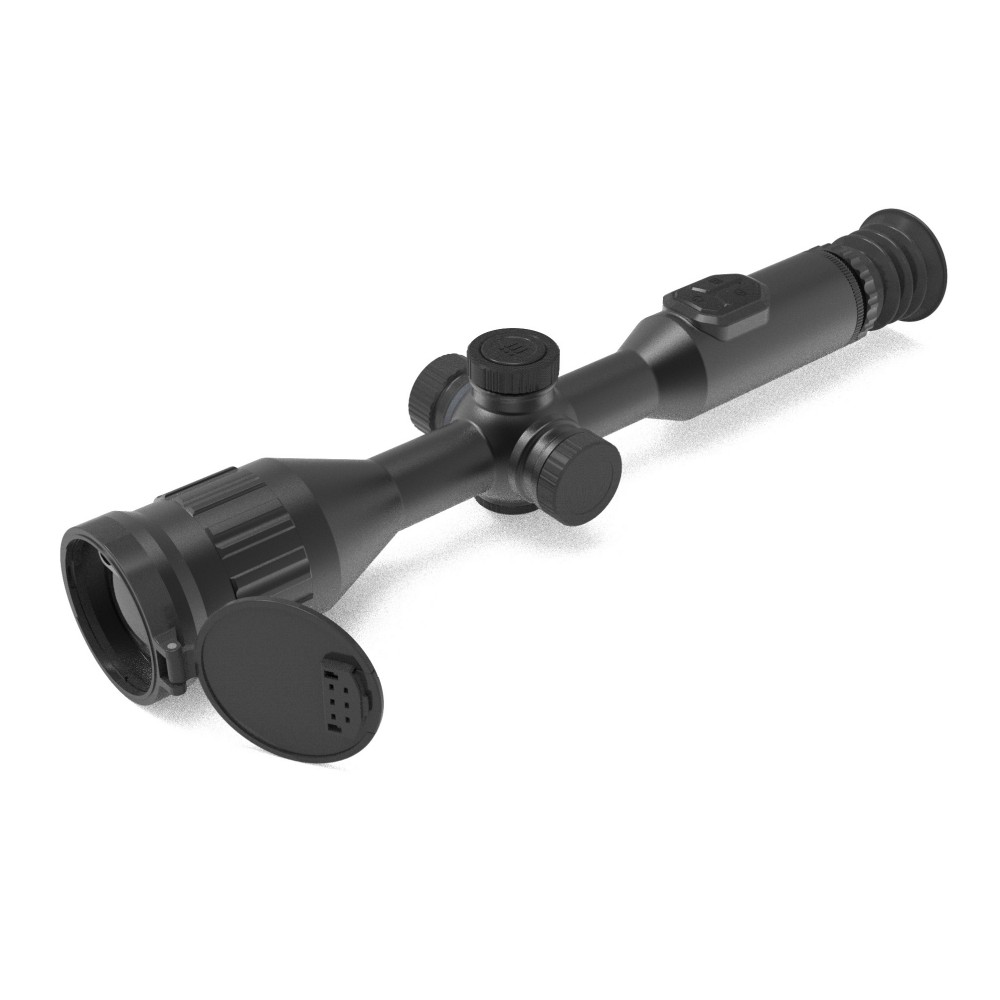

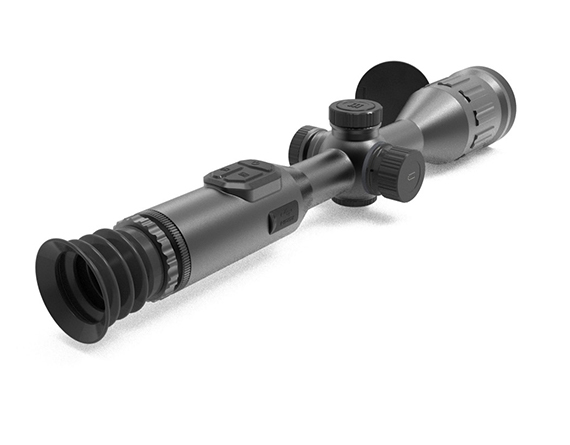

Adventurer650-LRF-Pro / Adventurer650 Thermal Imaging Device
Handheld Thermal Imaging Monocular for Hunting 0.39 AMOLED Touchscreen Thermal Monocular 640×512(50Hz) 12um Outdoor Camping
Product introduction
Adventurer650 Thermal Image Scope has 640 × 512 thermal detector and 1024 × 768 OLED display, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The traditional-style 50mm Tube meets the needs of professional hunters who value traditions and seek technological superiority, ensure an extreme detection range of up to 3500 meters.
☆640×512 resolution @12 μm thermal detector
☆High sensitivity thermal module NETD<20mK ,Frame Rate 50Hz
☆50 mm, F0.9 lens with detection range up to 3500 m
☆1024×768 resolution 0.39-inch OLED display
☆Equipped with an electronic compass for real-time orientation awareness;
☆Support Attitude sensor
☆A large field of view of 8.7°x7.0°,providing ultra-clear and detailed infrared thermal images for both day and night use.
☆Built-in lens laser rangefinder up to 1000 m, with ballistic calculation
☆Rechargeable internal batteries and external battery, 15h continuous operation
☆Support Image Denoising and Image enhancement
☆High shock resistance up to 1000 g/0.4 ms
☆Storage Built-in EMMC (32GB);
Adventurer 650 Thermal Scope is equipped with a 640×512 @12μm thermal detector, with much higher sensitivity (NETD<20mK), ensuring users catch the finest details no matter the weather or light conditions without interruption. With a 1024×768 0.39” AMOLED larger display, Adventurer 650 makes it easier to spot targets quickly and accurately. The built-in lens 1000m LRF and ballistic calculation contribute to more accurate shooting. The scope is mainly used for field and forest hunting.
The Adventurer 650 introduces many innovations to enhance your hunting experience including shutterless technology and the integrated Laser Rage Finder (LRF) which allows you to access advanced ballistic calculator while retaining the traditional appearance of your scope. The detection range for humans is 3500 m, and the recognition range is 590 m., this thermal scope ensures users can spot and identify targets at long distances with confidence.
Built around Adventurer 650 incredible new 1024×768
px, Sub 20mK NETD sensor. This high-resolution sensor delivers sharp and detailed images even at the basic magnification level. It also allows adjustment of screen brightness and contrast, making the viewed images clearer and more refined. Not only does this help you to positively identify animals but also gives you a clear view of the surroundings and background. This highly accurate thermal sensor will also continue to deliver in the most challenging conditions, such as rain and fog.
The 1000m LRF discreetly fits inside the front objective lens which allows you to accurately judge the distance to your target without compromising the traditional look of your . The built-in ballistic calculator displays the holdover point on your reticle, making it possible to accurately adjust for shooting at different distances, even in total darkness.
The new viewfinder screen delivers an immersive experience, with an 8.7°x7.0°exceptionally wide field of view. You can customise the display to give you all the information you need in a rounded viewing area that will feel familiar to anyone who has used a traditional optical scope.
The supports digital zoom 1x/2x/4x, multiple color palettes (White Hot/Black Hot/Red Hot/Fusion/Golden Hot etc.). With WiFi transmission, video & audio recording, snapshots.
Another unique technology which is set to revolutionise your thermal shooting experience is shutterless technology. The shutter is used in traditional thermal devices to control image noise. It is a physical process which requires your image to freeze for a few seconds to complete. During that interruption it is impossible to take your shot. To avoid this problem, Adventurer 650 have developed software which has replaced the physical shutter and removed this problem.
2 built-in 21700 lithium batteries (5000mAh) plus 1 external replaceable 18650 lithium battery (3400mAh), with a maximum operating time of up to 15 hours.The display also shows you the status of the internal battery and the external battery separately so it is easy to manage your power consumption.
Built for demanding environments, the features IP67 waterproof housing, <=1000 g shock resistance, and works in minus 20℃ to plus 50℃. Its compact <=950g body ,life make it portable for camping, hiking, wildlife observation,farm inspection, and search & rescue missions.
Specification
- Tab1
|
Item category
|
Adventurer650-LRF-Pro
|
Adventurer650
|
|
Thermal Module
|
||
|
Image Sensor
|
UFPA (VOx)
|
UFPA (VOx)
|
|
Resolution
|
640×512
|
640×512
|
|
Pixel Pitch
|
12µm
|
12µm
|
|
Frame Rate
|
50Hz
|
50Hz
|
|
NETD
|
≤20mk
|
≤20mk
|
|
Spectral Range
|
8-14µm
|
8-14µm
|
|
Optical Parameter
|
||
|
Focal length / Aperture
|
50mm; F0.9
|
50mm; F0.9
|
|
Field of View
|
8.7°×7.0°
|
8.7°×7.0°
|
|
Focusing Mode
|
Focus Ring
|
Focus Ring
|
|
Eye Relief / Exit Pupil
|
55mm / 6mm
|
55mm / 6mm
|
|
Diopter
|
+5D to -5D
|
+5D to -5D
|
|
Detection Range
|
3.5km (Human; 2pixels)
|
3.5km (Human; 2pixels)
|
|
Recognition Range
|
590m (Human; 12pixels)
|
590m (Human; 12pixels)
|
|
Image Display
|
||
|
Screen
|
AMOLED, 0.39 inch
|
AMOLED, 0.39 inch
|
|
Resolution
|
1024×768
|
1024×768
|
|
Brightness Adjustment
|
Support
|
Support
|
|
Contrast Adjustment
|
Support
|
Support
|
|
Image Denoising
|
Support
|
Support
|
|
Image enhancement
|
Support
|
Support
|
|
Color Palette
|
White Hot/Black Hot/Red Hot/Fusion/Golden Hot etc.
|
|
|
Digital Zoom
|
1×; 2×; 4×
|
1×; 2×; 4×
|
|
Power Supply
|
||
|
Battery type & Number
|
2 built-in & 1 external replaceable Lithium batteries
|
|
|
Battery Parameter
|
21700(5000mah)×2+18650(3400mah) ×1
|
|
|
External Power Supply
|
DC 5V (USB Type-C)
|
DC 5V (USB Type-C)
|
|
Power Consumption
|
≤2.2W(25℃)
|
≤2.2W(25℃)
|
|
Battery Operating Time
|
≥15h (25℃)
|
≥15h (25℃)
|
|
Peripheral
|
||
|
Electronic Compass
|
Support
|
Support
|
|
Attitude Sensor
|
Support
|
Support
|
|
WIFI / Bluetooth
|
Support; 2.4G
|
Support; 2.4G
|
|
Storage
|
Built-in EMMC (32GB)
|
Built-in EMMC (32GB)
|
|
Distance Measurement
|
Laser,905nm
|
Laser,905nm
|
|
Ranging Distance & Accuracy
|
1Km; ±1m
|
1Km; ±1m
|
|
General
|
||
|
Video Output Interface
|
Micro HDMI (Type D)
|
Micro HDMI (Type D)
|
|
Data Transmission Interface
|
USB (Type-C)
|
USB (Type-C)
|
|
Protection Level
|
IP67
|
IP67
|
|
Operating Temperature
|
-20°C to +50°C
|
-20°C to +50°C
|
|
Max. Recoil
|
1000g/0.4ms
|
1000g/0.4ms
|
|
Weight(without battery)
|
≤950g
|
≤935g
|
|
Dimension
|
425×88×75(mm)
|
425×88×75(mm)
|
