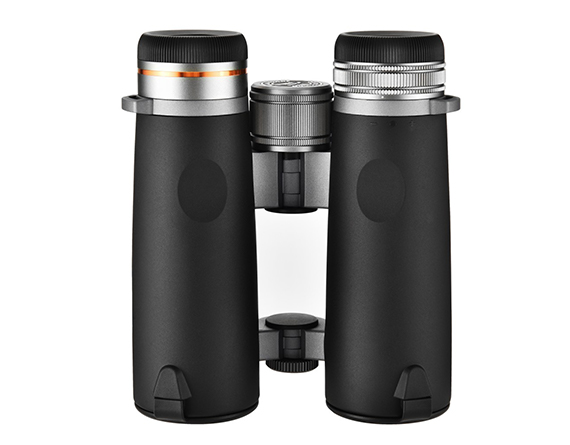

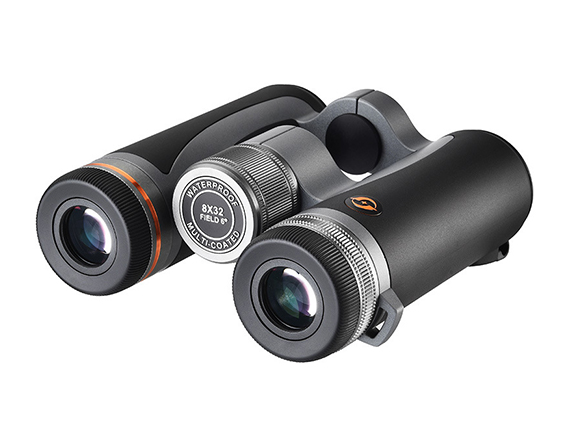

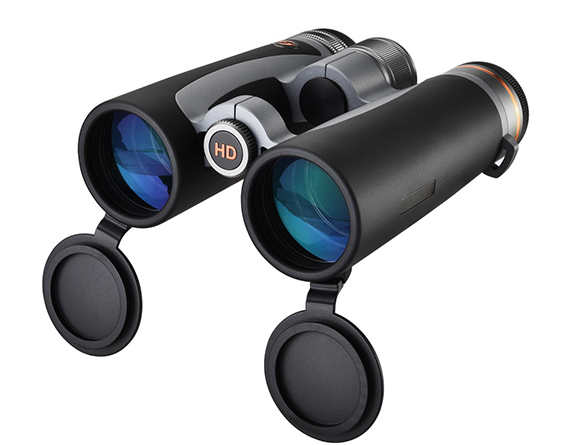

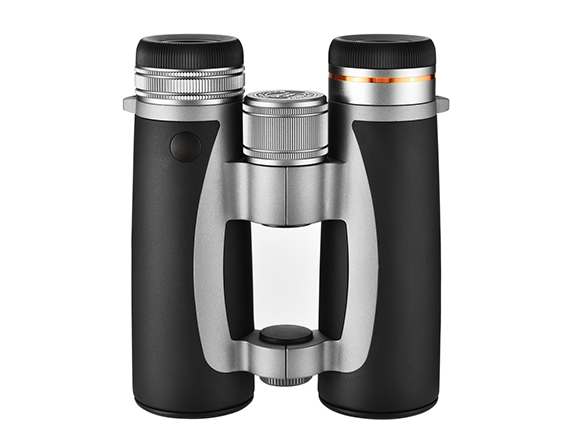

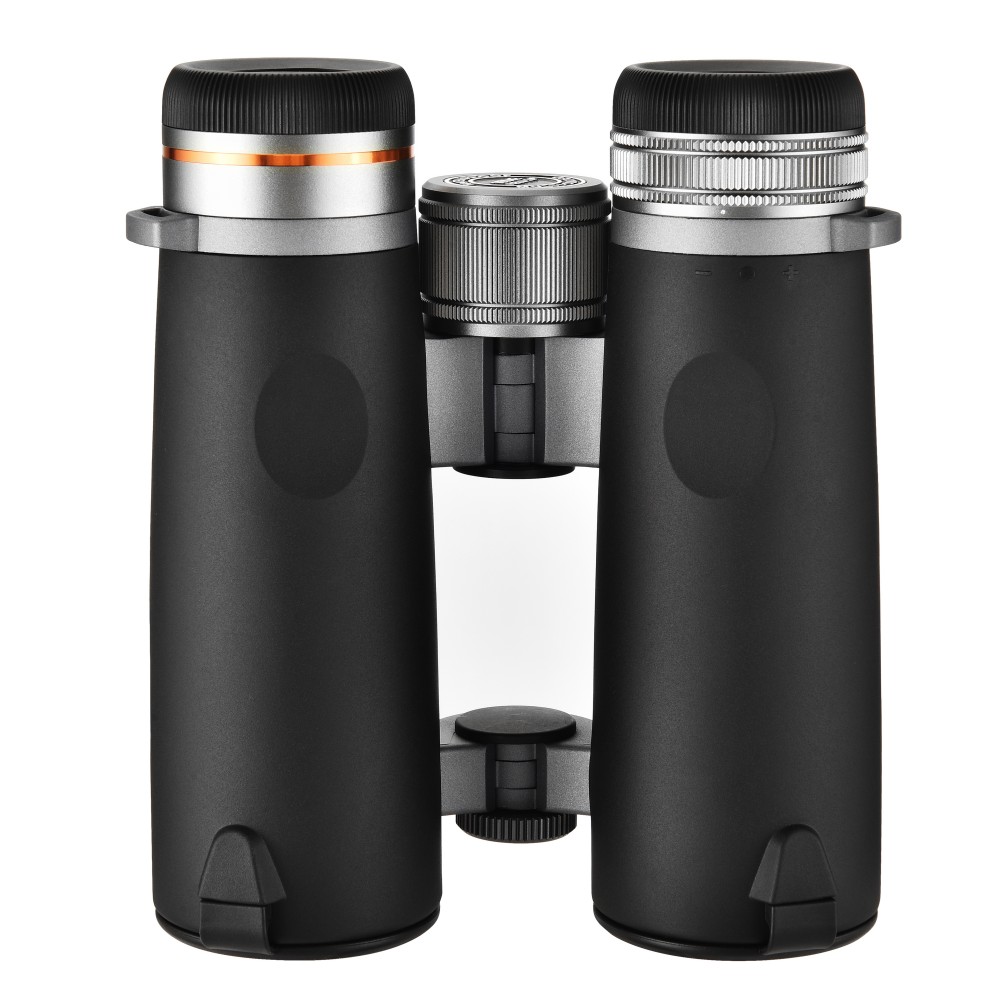

YBR37 8X32 Binoculars
YBR37 High Power Binoculars IPX7 Waterproof Compact Telescope with with Strap and Carrying Bag for Bird Watching Travel Concerts
Product introduction
Integrates different parameters to meet different needs

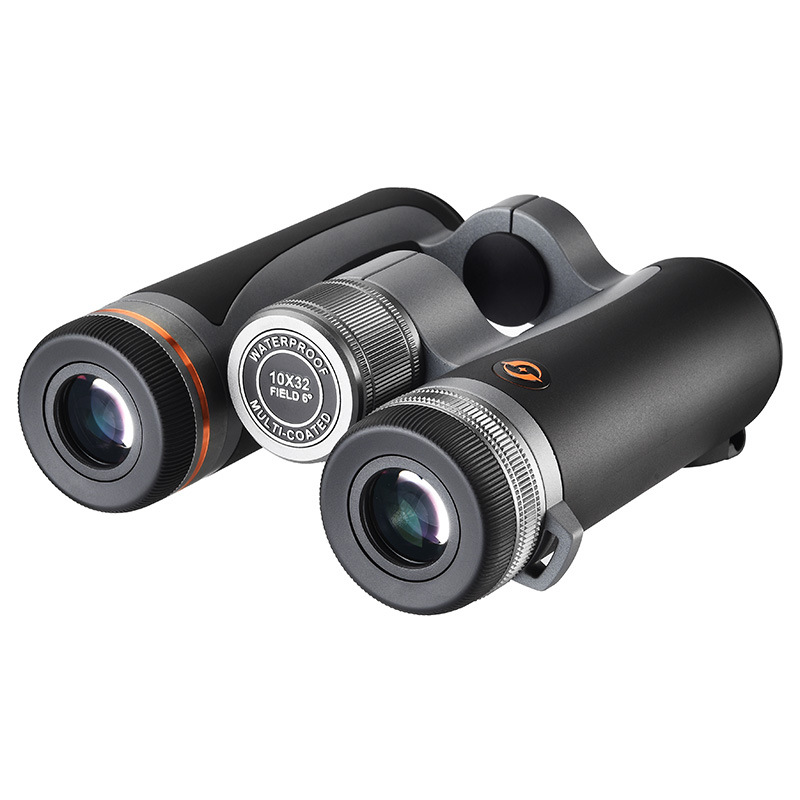

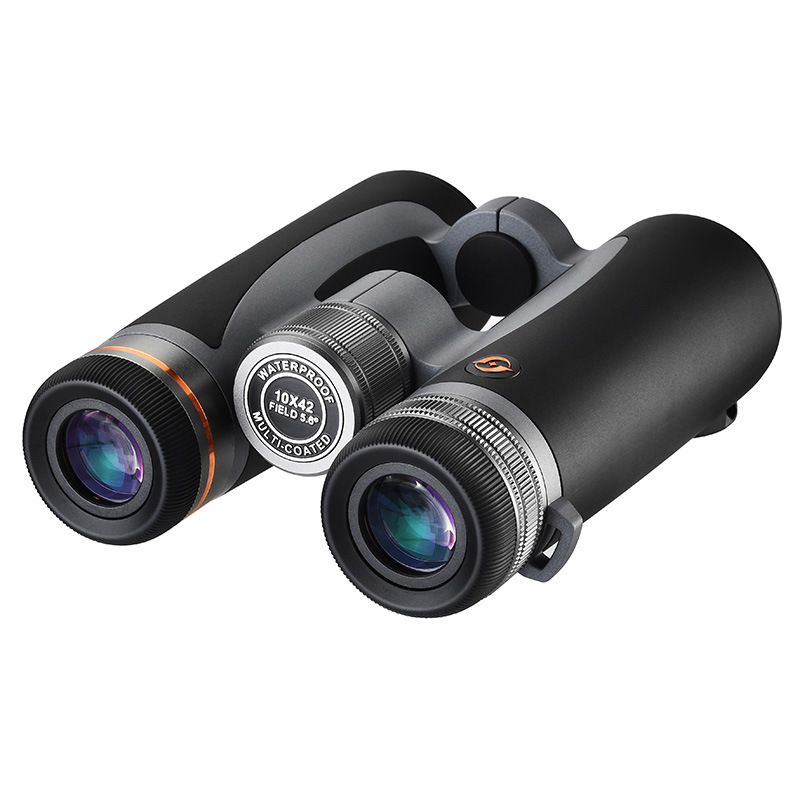

This Binoculars Series offer multiple magnification options including 10X42, 8X42, 10X32, 8X32 and 12X32, delivering clear and bright image quality.
Clearer View of Distant Targets

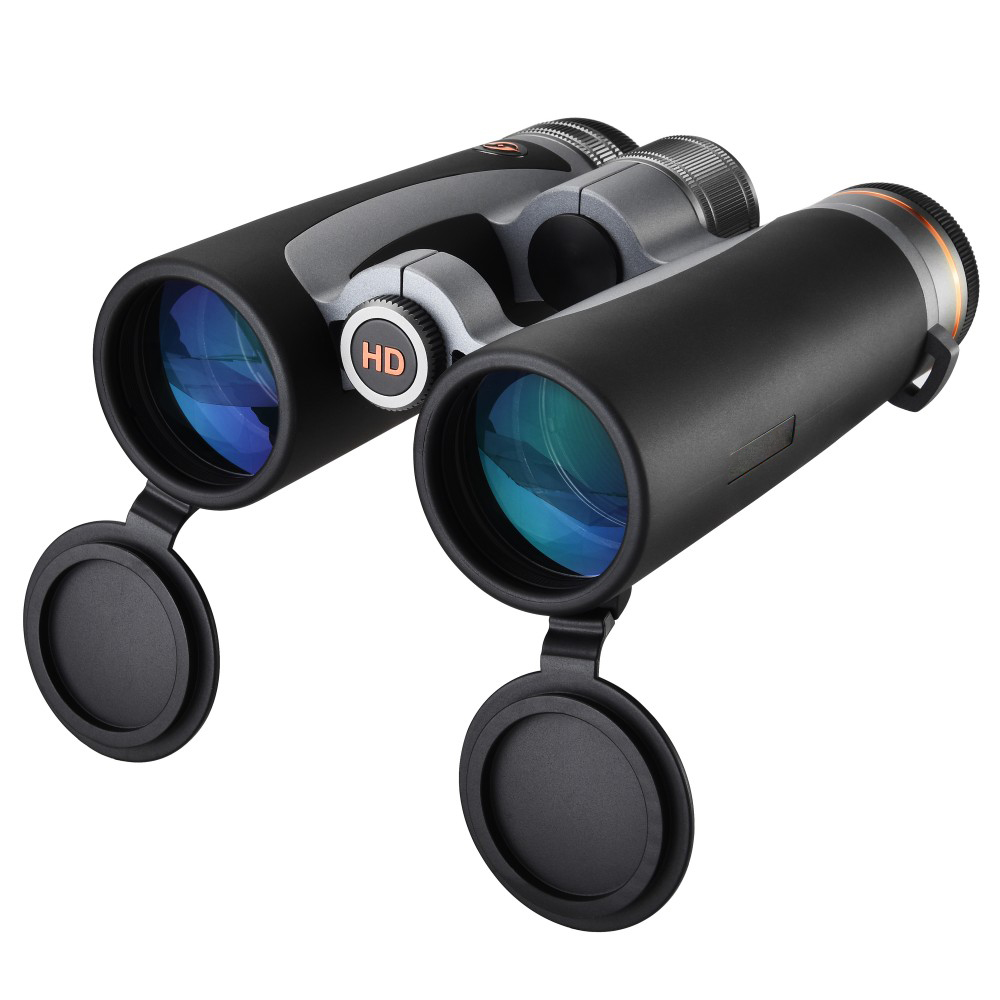

Larger objective lens diameter allows more light to enter, resulting in sharper images. Optional 42mm/32mm objective lenses are available.
Big Eyepiece
20mm/22.5mm big eyepiece for more comfortable view experience.
Fully Multi-coated Lens
All lens including eyepiece and objective lens are fully multi-coated, light transmittance is 90% above.
Large BAK4 Prism with coating process
Advance large BAK4 prism (20mm) with FMC coating in order to provide bright and crisp images.
Advanced ED Glass
Objective lens use advanced ED glass with abbe 90.3, lead to extra low dispersion,less chromatic fringe.bring a clear and sharper image.
Topping Optical System
11 pieces lens with FMC green coating in total for best optical performance. Objective lens 3E2G; Ocular lens 3E2G /4E3G.
Tripod & Mobile Holder Available
More stabilized metal screw tripod interface.Mobile holder available for sharing exciting moment.
Sturdy Metal Structure
The mirror body is made of plastic-steel PPS material, and the surface protective cover is made of rubber.This waterproof binoculars can withstand the harsh conditions of outdoor use.
Field of View Angle 6º/6.1º/5.4º/5.6º/4.5º
Wider field of view for more comfortable viewing, with respective coverage of 105m/1000m, 107m/1000m, 94m/1000m, 98m/1000m, 79m/1000m.
Minimum Focus Distance: 5m/2.5m
Capable of observing close-range targets such as insects, plants or hard-to-reach objects.
IPX7 Waterproof Standard
IPX7 level waterproof allow the binocular fall into 2m deep water for 30min within breaking optical performance.
Nitrogen-filled Fog Proof
100% pure nitrogen-filled lens protect clear film without fog impact.
Non-slip large-size Focusing Wheel
Rotates to adjust clarity, offering high precision and convenient operation.
Twist-up Eyecup with 2 Click-stops
Twist-up eyecup with 2 click-stops position, get right view position easier.

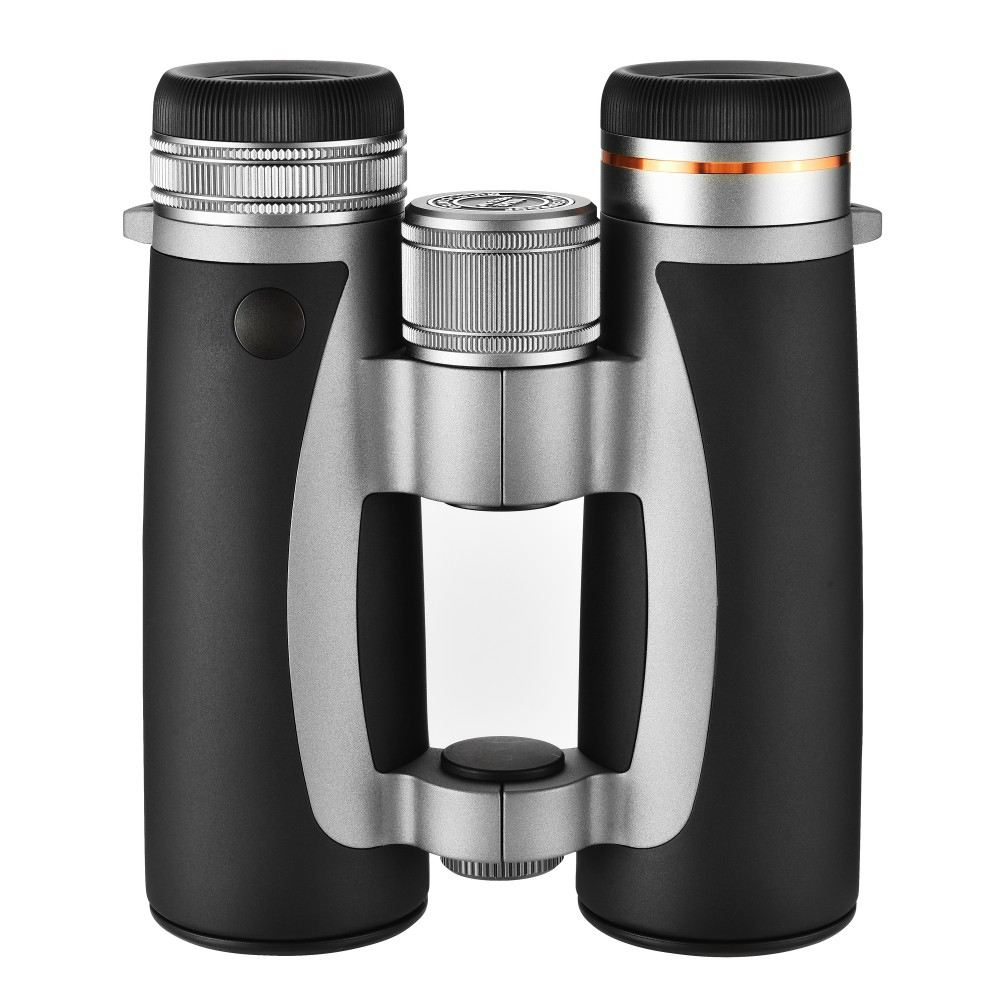

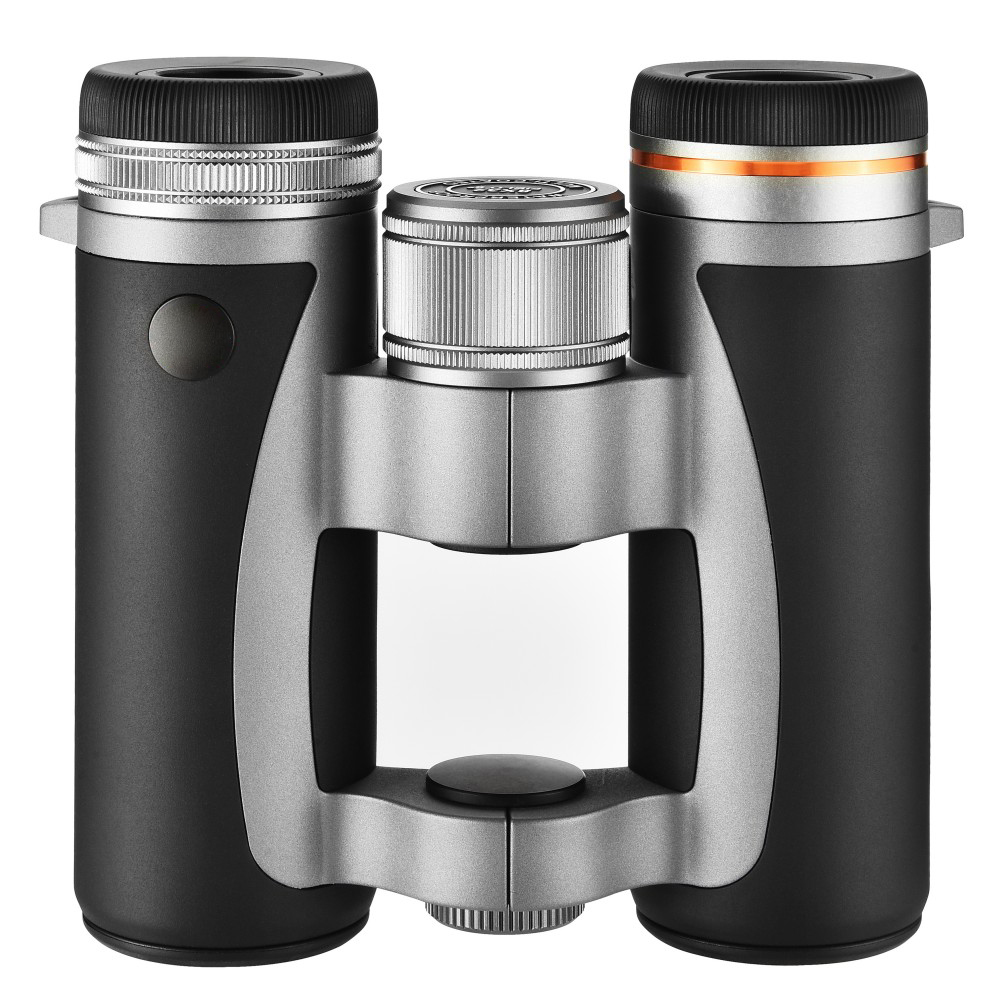

Double-hinge Design
Elegant in Appearance and Comfortable to Grip
Diopter Adjustment
±5 diopter adjustment to compensate for visual acuity differences between the two eyes.
Application Scenarios
Suitable for various occasions, providing high-definition vision to put everything in the world within your grasp.
Specification
- Tab1
|
Model Number
|
8X32
|

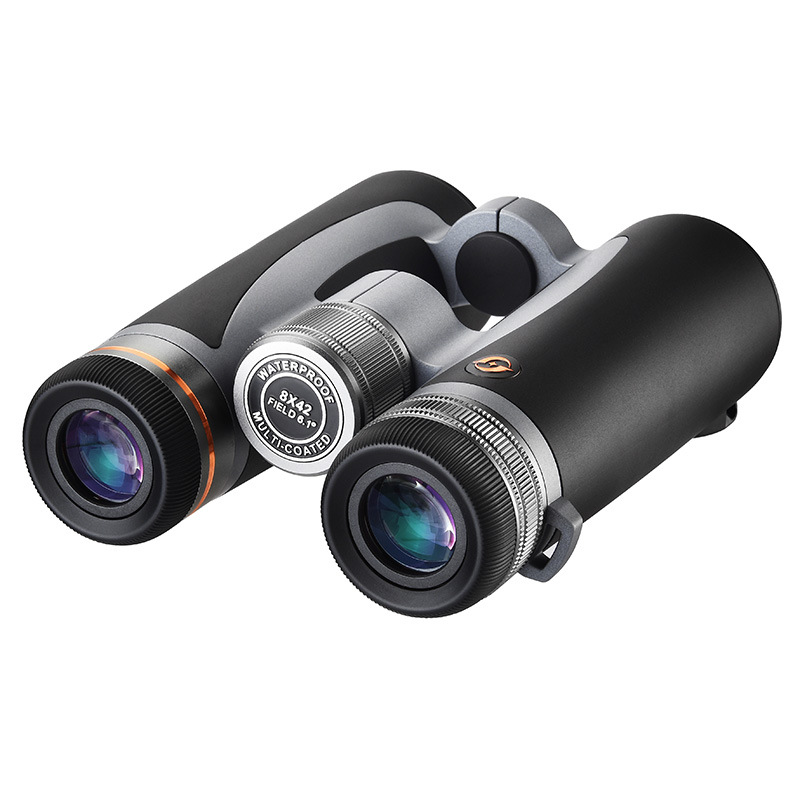

8X42
|
10X32
|
10X42
|
12X32
|
|
Magnification (X)
|
8X
|
8X
|
10X
|
10X
|
12X
|
|
Eyepiece Diameter (mm)
|
20mm
|
22.5mm
|
20mm
|
22.5mm
|
20mm
|
|
Objective Lens Diameter (mm)
|
32mm
|
42mm
|
32mm
|
42mm
|
32mm
|
|
Field of View Angle (deg)
|
6º
|
6.1º
|
5.4º
|
5.6º
|
4.5º
|
|
Field of View Range
|
105m/1000m 315ft/1000yds
|
107m/1000m 321ft/1000yds
|
94m/1000m 282ft/1000yds
|
98m/1000m 294ft/1000yds
|
79m/1000m 237ft/1000yds
|
|
Exit Pupil Distance (mm)
|
16.5mm
|
21mm
|
15mm
|
15mm
|
10.8mm
|
|
Exit Pupil Diameter (mm)
|
4.0mm
|
5.25mm
|
3.2mm
|
4.2mm
|
2.7mm
|
|
Minimum Focal Length (m)
|
2.5m/8.2ft
|
5m/16.4ft
|
2.5m/8.2ft
|
5m/16.40ft
|
2.5m/8.2ft
|
|
Prism Material
|
Bak-4
|
||||
|
Waterproof Rating
|
IPX7
|
||||
|
Product Color
|
black/green/coffee
|
||||
|
Product Dimensions (mm)
|
130X55X130mm
|
156X57X126mm
|
130X55X130mm
|
156X57X126mm
|
130X55X130mm
|
|
Single Unit Weight (g)
|
493g
|
692g
|
503g
|
687g
|
495g
|
|
Accessory Weight (g)
|
320g
|
390g
|
320g
|
390g
|
320g
|
|
Packaging Dimensions (mm)
|
168X168X64mm
|
199X199X74mm
|
168X168X64mm
|
199X199X74mm
|
168X168X64mm
|
|
Quantity per Carton (pcs/ctn)
|
20pc/ctn
|
20pc/ctn
|
20pc/ctn
|
20pc/ctn
|
20pc/ctn
|
|
Outer Carton Dimensions (cm)
|
41X35X36CM
|
46X41X42CM
|
41X35X36CM
|
46X41X42CM
|
41X35X36CM
|
|
Gross Weight/Net Weight (kgs)
|
17.3kgs/16.3kgs
|
22.7kgs/21.7kgs
|
17.5kgs/16..5kgs
|
22.5kgs/21.5kgs
|
17.3kgs/16.3kgs
|
|
Optical Structure
|
Eyepiece: 3E2G
|
Eyepiece: 3E2G
|
Eyepiece: 4E3G
|
Eyepiece: 4E3G
|
Eyepiece: 4E3G
|
|
Objective Lens: 3E2G
|
Objective Lens: 3E2G
|
Objective Lens: 3E2G
|
Objective Lens: 3E2G
|
Objective Lens: 3E2G
|
|
|
Prism Type
|
Roof
|
||||
|
Optical Material
|
All lenses are optical lenses
|
||||
|
Coating Condition
|
Multi-layer Coating
|
||||
|
Focusing System
|
Central Focusing
|
||||
|
Body Material
|
Plastic Steel (PPS)
|
||||
|
Surface Covering/Skin
|
Rubber
|
||||
|
Eyepiece
|
Rotatable Eye Cups
|
||||
|
Resolution
|
6.5″
|
6.5″
|
6.5″
|
6.5″
|
6.5″
|
|
Relative Brightness
|
16
|
27.6
|
10.24
|
17.6
|
7.3
|
|
Twilight Factor
|
16
|
18.3
|
17.88
|
20.5
|
19.6
|
|
Light Transmission Rate
|
69%
|
||||
|
Diopter Adjustment Range
|
-5 TO +5 DIOPTER
|
||||
|
Pupil Distance Adjustment Range
|
58.7mm-74mm
|
||||
|
Additional Functions
|
/
|
||||
|

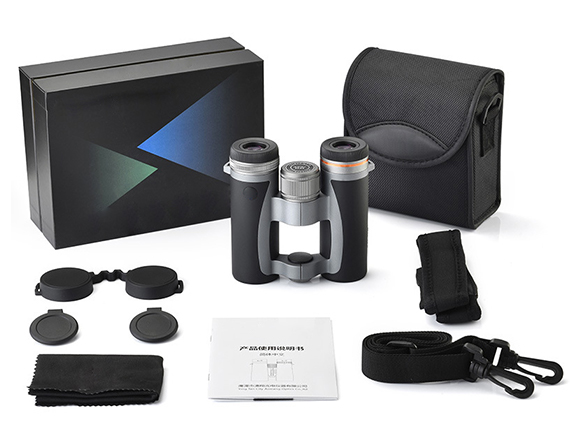

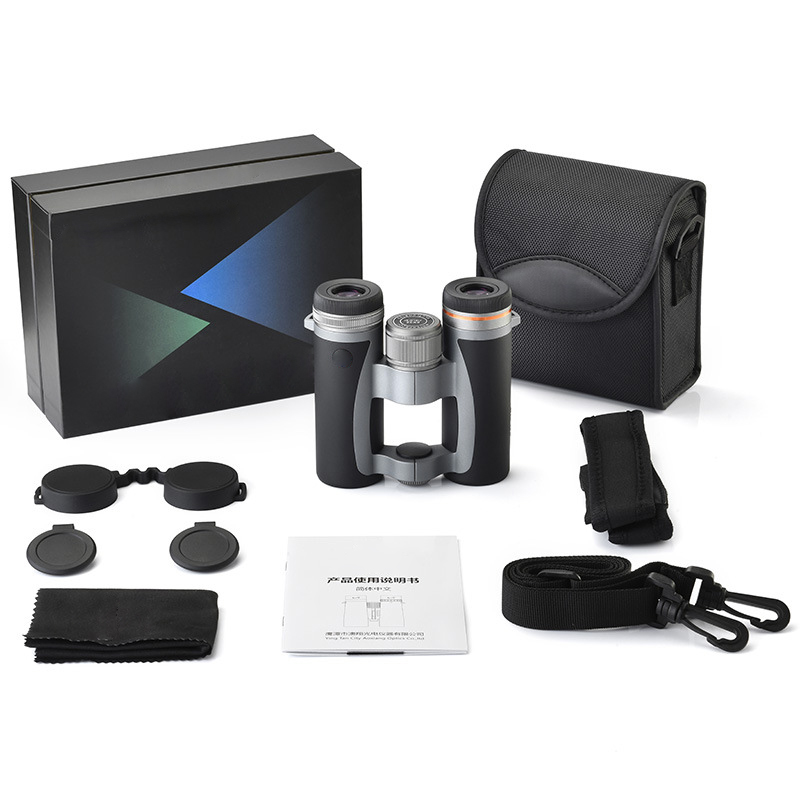

Accessories
|
Color Box,Soft Bag,Shoulder Strap,Lens Cleaning Cloth,Desiccant
|
||||
