Laser rangefinders are indispensable measurement tools used across a variety of fields, including construction, renovations, finishing, the military, forestry, sports, the power industry, hunting, and agriculture. These devices are essential wherever quick and precise measurements of distance, angle, or slope are required. Common rangefinders include laser rangefinders and ultrasonic rangefinders. This article will discuss the working principle of laser rangefinder. How exactly do laser rangefinders work, and how can you choose the right one for your needs? This guide will delve into the following topics:
◆How does a laser rangefinder work?
◆What are the benefits of using a laser rangefinder?
◆How do you measure distance with a laser rangefinder?
◆Which laser rangefinder should you choose?
How Does a Laser Rangefinder Work?
Laser rangefinders utilize electromagnetic pulses in the form of laser beams, emitted via their optoelectronic systems. When the laser beam hits a target’s surface, it reflects back to the rangefinder. The device then processes the returned beam to calculate the distance, employing one of several methods:
1.Phase Shift Measurement: This technique measures the phase delay between the emitted and reflected electromagnetic waves, a method commonly used in phase laser rangefinders.
2.Pulse Time-of-Flight Measurement: This approach calculates the travel time of the laser pulse from the rangefinder to the target and back. It’s widely used in pulse laser rangefinders.
3.Interferometric Measurement: This is the most precise and fastest method, utilizing interference patterns to measure distance. However, these rangefinders are costly and less durable, making them less suitable for field use.
Professional laser rangefinders boast impressive accuracy, often achieving 1 mm precision per kilometer. Standard models for construction can measure distances up to 150 meters, while specialized long-range models can extend their reach to 1,500 meters. This versatility makes them invaluable for various industries, including hunting, forestry, and road construction.
What Are the Benefits of Using a Laser Rangefinder?
Laser rangefinders stand out from optical and ultrasonic tools due to their advanced functionality and precision. Key benefits include:
♦Exceptional Accuracy: With tolerances ranging from ±1 to ±5 mm per kilometer, laser rangefinders are highly reliable.
♦Single-Person Operation: Unlike optical rangefinders, which require at least two operators, laser rangefinders can be used by one person, saving time and reducing staffing needs.
♦Advanced Features: Most models offer electronic alignment aids, automatic calibration, and functions for calculating measurements based on the Pythagorean theorem. They can also measure surface area, volume, and perform continuous measurements.
♦User-Friendly Interface: High-resolution displays and intuitive controls make these tools convenient for everyday use, even in challenging conditions.

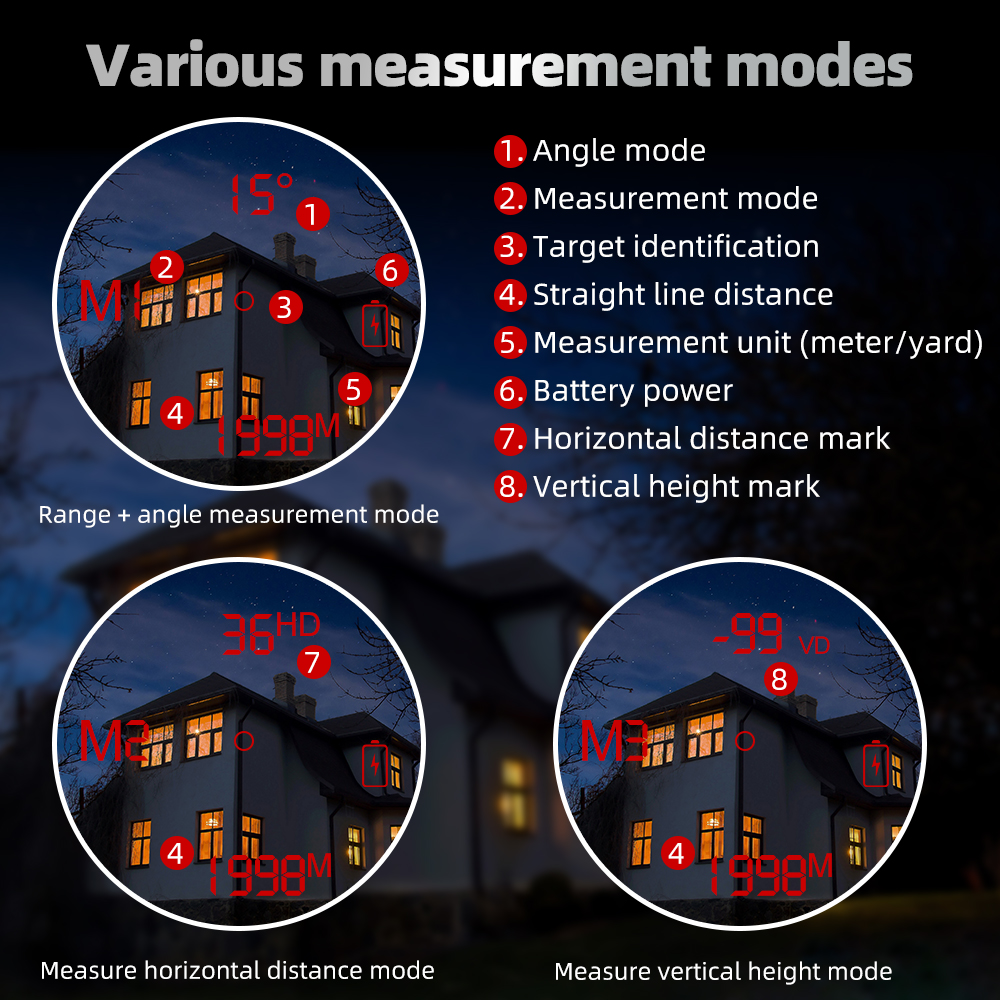

How Do You Measure Distance with a Laser Rangefinder?
Using a laser rangefinder is straightforward:
1.Basic Distance Measurement: Point the laser at a target, activate the device, and the measurement is displayed on the screen. Many models store up to 100 measurements in their internal memory.
2.Continuous Measurement: This mode calculates the highest and lowest distances during a single measurement cycle, ideal for dynamic measurements. Also known as “Scanning Mode”.
3.Room Measurements: By measuring length, width, and height, the device can calculate surface area or cubic volume using built-in algorithms.
4.Mathematical Calculations: Advanced models, such as the EXTECH DT60M, can estimate heights and distances using the Pythagorean theorem, which is particularly useful for inaccessible points.
5.Speed Measurement: A laser rangefinder can gauge the speed of a moving object. Traffic police commonly use it to measure vehicle speeds. Likewise, hunters can employ it to track the speed of their prey.
When using a laser rangefinder, always ensure safety. Laser beams can harm the eyes, so check the surrounding area before activating the device. Regular maintenance is essential, especially if the rangefinder is used in harsh environments.
Which Laser Rangefinder Should You Choose?
The right laser rangefinder depends on your specific needs and working conditions. Here are some factors to consider:
1. Operating Range
The effective range of a laser rangefinder varies widely:
♦Construction Models: Typically offer ranges of 40–120 meters.
♦Long-Range Models: Can measure distances up to 1,500 meters, suitable for forestry, agriculture, and hunting.
2. Measurement Accuracy
Short- and medium-range devices generally have a tolerance of around ±5 mm, while high-end models achieve ±1–2 mm precision.
3. Laser Dot Visibility
The visibility of the laser dot depends on the target material and lighting conditions. High-contrast glasses can improve visibility for prolonged measurements.
4. Minimum Unit Displayed
For maximum precision, choose a device with a minimum resolution of 0.1 mm.
5. Durability and IP Rating
If the device will be used in dusty or wet environments, opt for a model with a high IP rating (e.g., IP54 or higher) to ensure resistance to water and dust.
It’s crucial to base your decision on your actual requirements. Different models offer varying measurement ranges, and generally speaking, the longer the measurable distance, the higher the price tag. For instance, those basic ones with a relatively short range might be more budget-friendly, suitable for indoor use or small outdoor spaces like measuring the length of a backyard. Among them, handheld rangefinders typically have a measurement range within 1000 meters. Their compact and portable design makes them extremely convenient for outdoor use. Whether you’re hiking in the mountains and need to quickly measure the distance to a landmark, or simply exploring a local park and want to know the span of a particular area, a handheld rangefinder can be your handy tool.
However, it’s important to note that when the measurement distance exceeds 1000 meters, the accuracy of the rangefinder tends to decline. There are several reasons for this. Firstly, targets beyond 1000 meters are often difficult to observe clearly. Even with optical enhancements, it can be challenging to pinpoint the exact location to which the laser is directed. Secondly, environmental factors play a significant role. In adverse weather conditions like rainy days, raindrops can scatter the laser beam, leading to measurement errors. The moisture in the air can also interfere with the laser’s propagation path, causing inaccuracies in the readings.
Take a 1500-meter rangefinder as an example. At such a long range, it can only effectively measure relatively large targets. A tall building, for instance, provides a large surface area for the laser to reflect back, making it possible to obtain a reading. But if you were to try and measure a small animal or a person at that distance, the chances of getting an accurate measurement are slim due to the target’s small size and potential movement, which further complicates the process. So, always consider your specific needs and the operating environment when selecting a laser rangefinder.
Conclusion
Laser rangefinders are versatile, accurate, and user-friendly tools that enhance productivity across a variety of industries. Understanding their working principles and features can help you select the best device for your specific requirements. Whether you need a compact tool for indoor use or a robust model for outdoor applications, there’s a laser rangefinder designed to meet your needs.
