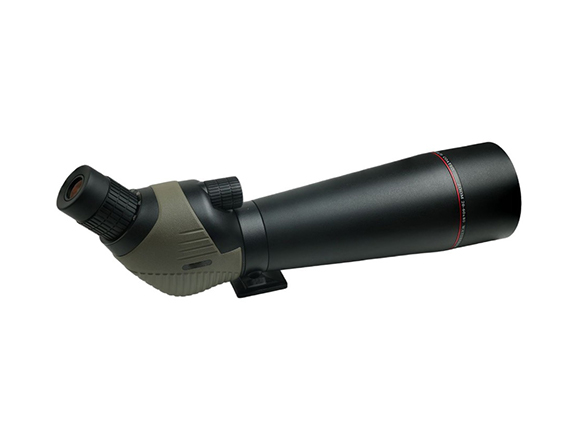

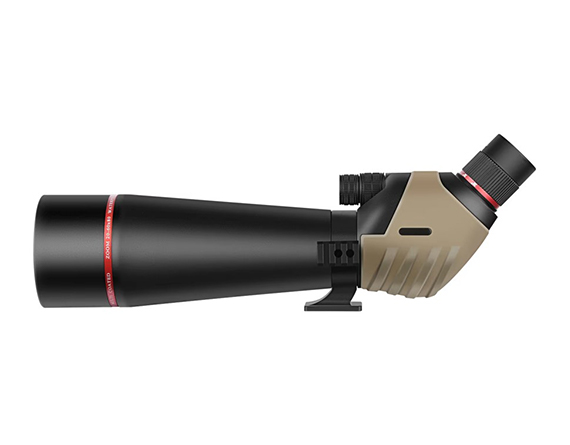

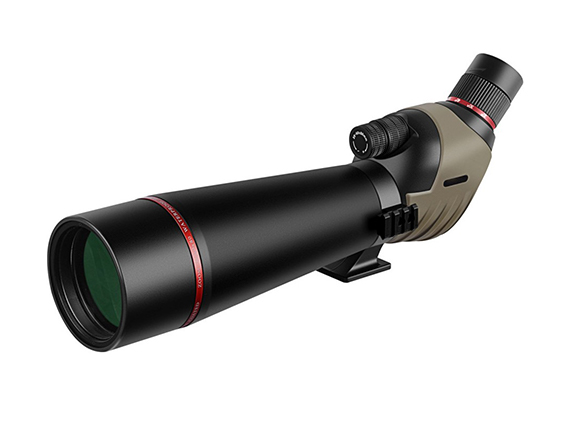

TFG268 20-60x80 Spotting Scope
20-60×80 Spotting Scopes with Tripod and Phone Holder, BAK4 High Definition Waterproof for Bird Watching Wildlife Hunting
Product introduction
The 20-60×80 Spotting Scope is a high-performance optical instrument with a magnification range of 20x to 60x. Equipped with an 80mm large-aperture objective lens and BAK4 prisms, it delivers excellent 90% light transmittance and sharp, clear imaging. Boasting a rugged and durable construction that meets the IPX7 waterproof and dustproof standard, it can be used both underwater and in all weather conditions, making it ideal for outdoor environments. A stable tripod is also included as standard equipment.

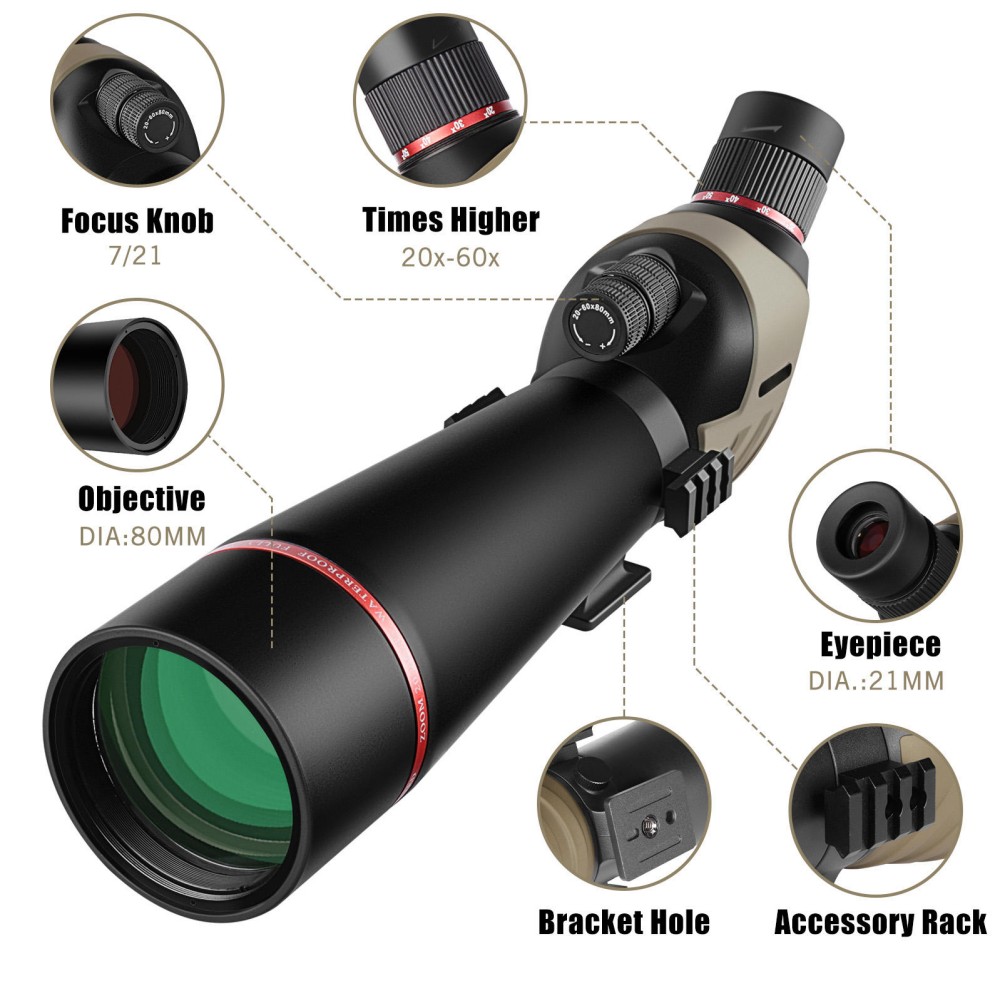

♦20–60x Continuous Zoom: Versatile for terrestrial and astronomical observation; simply twist the zoom ring to adjust magnification and lock onto targets quickly.
♦80mm Fully Multi-Coated Objective Lens: Maximizes light intake for crisp, detailed imaging even in low-light conditions.
♦BAK4 High-Density Prisms: Enhances image contrast and completely eliminates chromatic aberration and distortion.
♦45° Angled Eyepiece Design: Reduces neck fatigue during extended observation sessions.

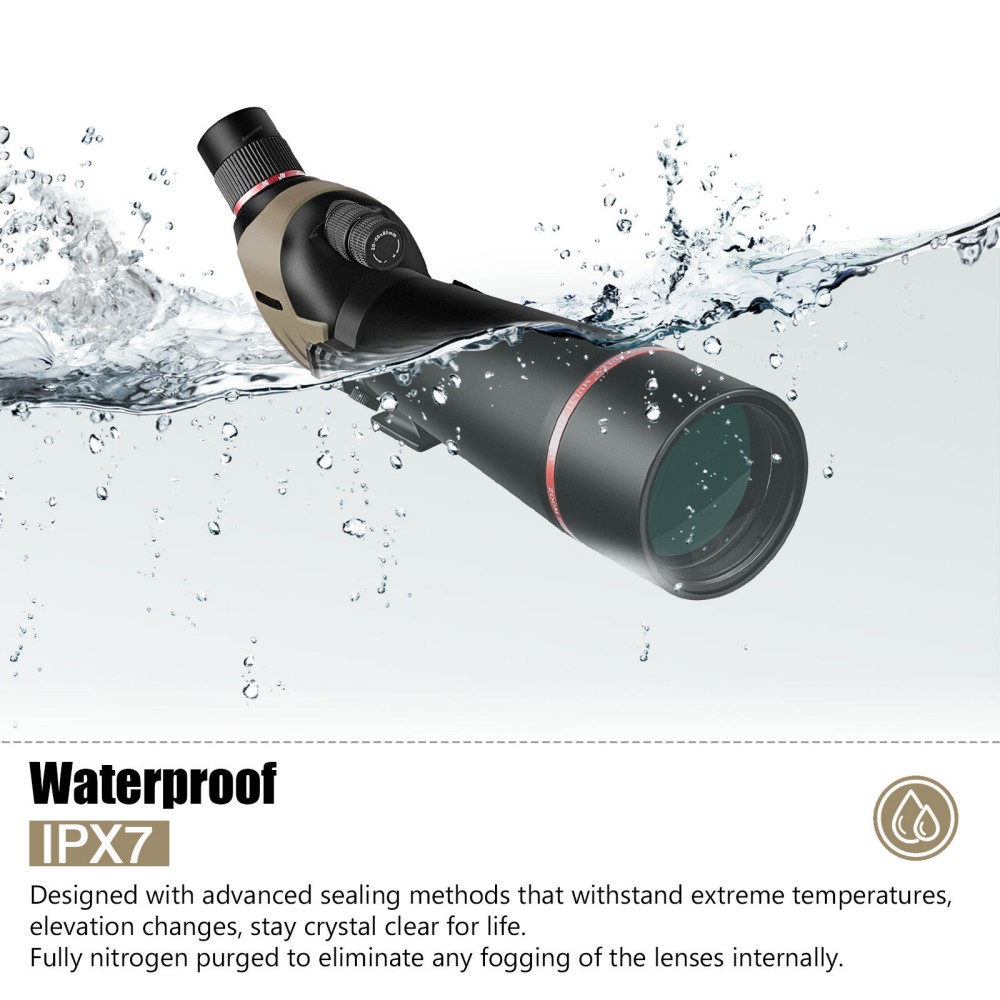

♦IPX7 Nitrogen-Filled Waterproof & Fogproof: Features nitrogen purging and O-ring sealing technology for reliable performance in harsh environments, ensuring long-lasting durability.
♦7m Close-Focus Capability: Enables effortless close-range observation with a minimum focusing distance of 7 meters, capturing fine details with precision.
♦Up to 90% light transmittance: unobstructed light penetration, maximum restoration of natural light texture, bid farewell to dim and oppressive atmosphere, and make the space/field of vision more transparent and bright.
♦Wide Exit Pupil Diameter (4.2–1.35mm): Ensures sharp, clear vision in dim light, adapting seamlessly to both bright and low-light scenarios for near and far viewing.
♦Comfortable Eye Relief (17–13.5mm): Accommodates eyeglass wearers, allowing full-field viewing without removing glasses.
♦2.85°–1.45° Adjustable Field of View: Switches flexibly between wide panoramic views and narrow close-ups—perfect for birdwatching, sports events, and landscape viewing.
♦Lightweight & Portable Design: Weighs only 1050g, making it an ideal companion for fieldwork and remote-area expeditions.
♦Fully Multi-Coated (FMC) Optics: Significantly boosts light transmittance, suppresses glare and ghosting, and produces brighter, sharper target images with true-to-life color reproduction.
♦Rugged Protective Housing & Eyepiece Guard: The non-slip, shock-absorbent rubber housing ensures uncompromised performance even after accidental drops.
Retractable Eyepiece Sunshade: Minimizes glare interference and protects the eyepiece lens during storage and transportation.

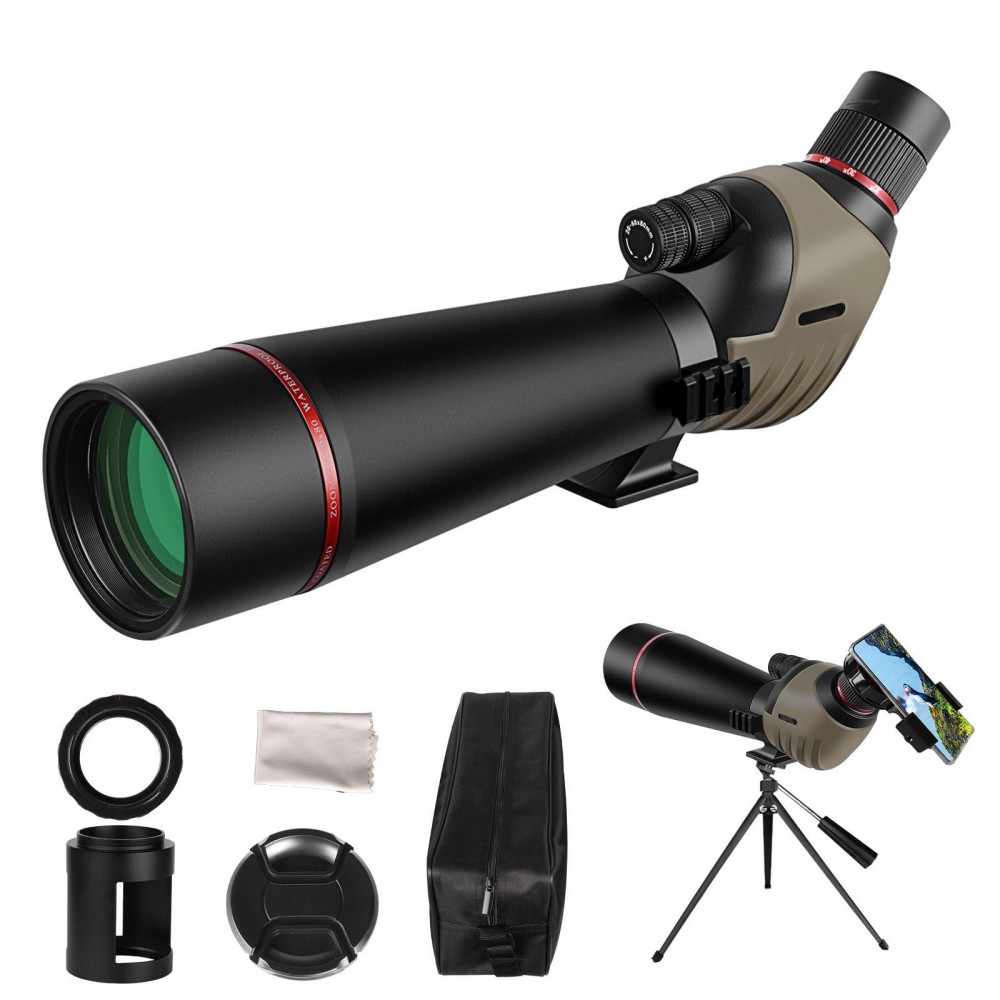

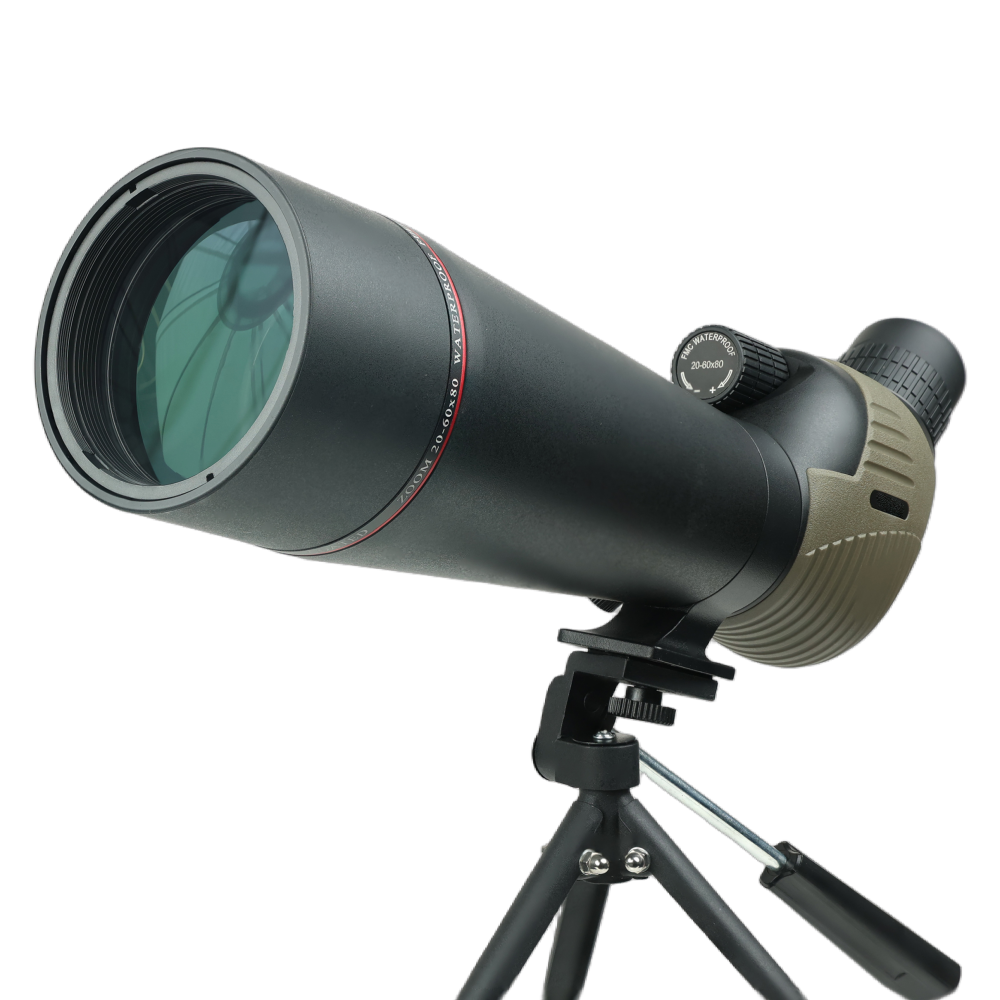

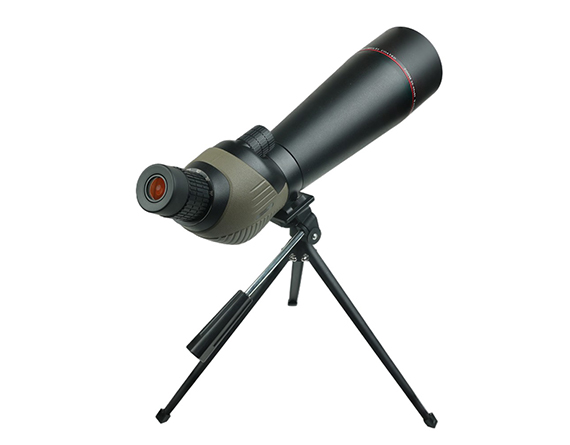

♦Included Smartphone Adapter & Tripod: The universal smartphone adapter allows direct capture of HD images and videos through the eyepiece. The tripod drastically reduces vibration for stable support during long-distance observation.
♦Multi-Scenario Applications: Landscape & cultural sightseeing / Wildlife watching / Astronomical stargazing
Specification
- Tab1
|
MODELS
|
TFG268 20-60×80
|
|
|
SPEC.
|
||
|
POWER
|
20X-60X
|
|
|
OBJ. LENS DIA.
|
mm
|
80mm
|
|
EYEPIECE DIA.
|
mm
|
★21
|
|
TYPE OF PRISM
|
Type / Material
|
★Porro / Bk7
|
|
PRISM COATING
|
Yes / No
|
Yes
|
|
NUMBER OF LENS
|
Pieces & Groups
|
7Pcs/4 Groups
|
|
LENS COATING
|
Coated/Fully Coated/Multi Coated/Fully Multi Coated
|
Fully Multi Coated
|
|
FOCUS SYSTEM
|
Cent. / Ind. / Fix
|
★Cent./ Focusing
|
|
FOCUSING LENS
|
Eye. / Obj. / Int.
|
Int.
|
|
EXIT PUPIL DIAMETER
|
mm
|
4.2-1.35mm
|
|
EXIT PUPIL DIST.
|
mm
|
17-13.5mm
|
|
FIELD OF VIEW
|
Angel
|
2.85-1.45°
|
|
Ft / 1,000Yds
|
150-76Ft / 1000Yds
|
|
|
M / 1,000M
|
50-25.3M / 1000M
|
|
|
RESOLUTION
|
3″
|
|
|
MIN. FOCAL LENGTH
|
M / Ft.
|
7/21
|
|
ZOOM SYSTEM
|
Type & Location
|
Yes
|
|
WEATHER PROOF
|
Yes / No
|
Yes
|
|
WATER RESIST
|
Yes / No
|
Yes
|
|
NITROGEN FILLED
|
Yes / No
|
Yes
|
|
Tripod
|
Yes / No
|
Yes
|
|
FOLDING EYECUPS
|
Yes / No
|
Folding
|
|
Case
|
Hard,Soft
|
Soft
|
|
STRAP
|
Yes / Nylon
|
Yes / Nylon
|
|
CLEANING CLOTH
|
Yes / No
|
Yes
|
|
SILICA GEL
|
Yes / No
|
Yes
|
|
UNIT DIMENSION
|
mm
|
430x155x100mm
|
|
UNIT WEIGHT
|
g
|
1050
|
