What is Infrared Thermal Imaging?
Infrared thermal imaging refers to the process of capturing infrared radiation (heat) emitted by objects and converting it into visible images. Infrared radiation, also known as thermal radiation, consists of electromagnetic waves with wavelengths ranging from 0.78 microns to 1000 microns. This radiation is invisible to the human eye but can be detected by specialized devices, such as infrared cameras or thermal imagers.
The infrared spectrum is divided into two main categories:
- Near-infrared: Wavelengths from 78 to 2.0 microns.
- Thermal infrared: Wavelengths from 0 microns to 1000 microns.

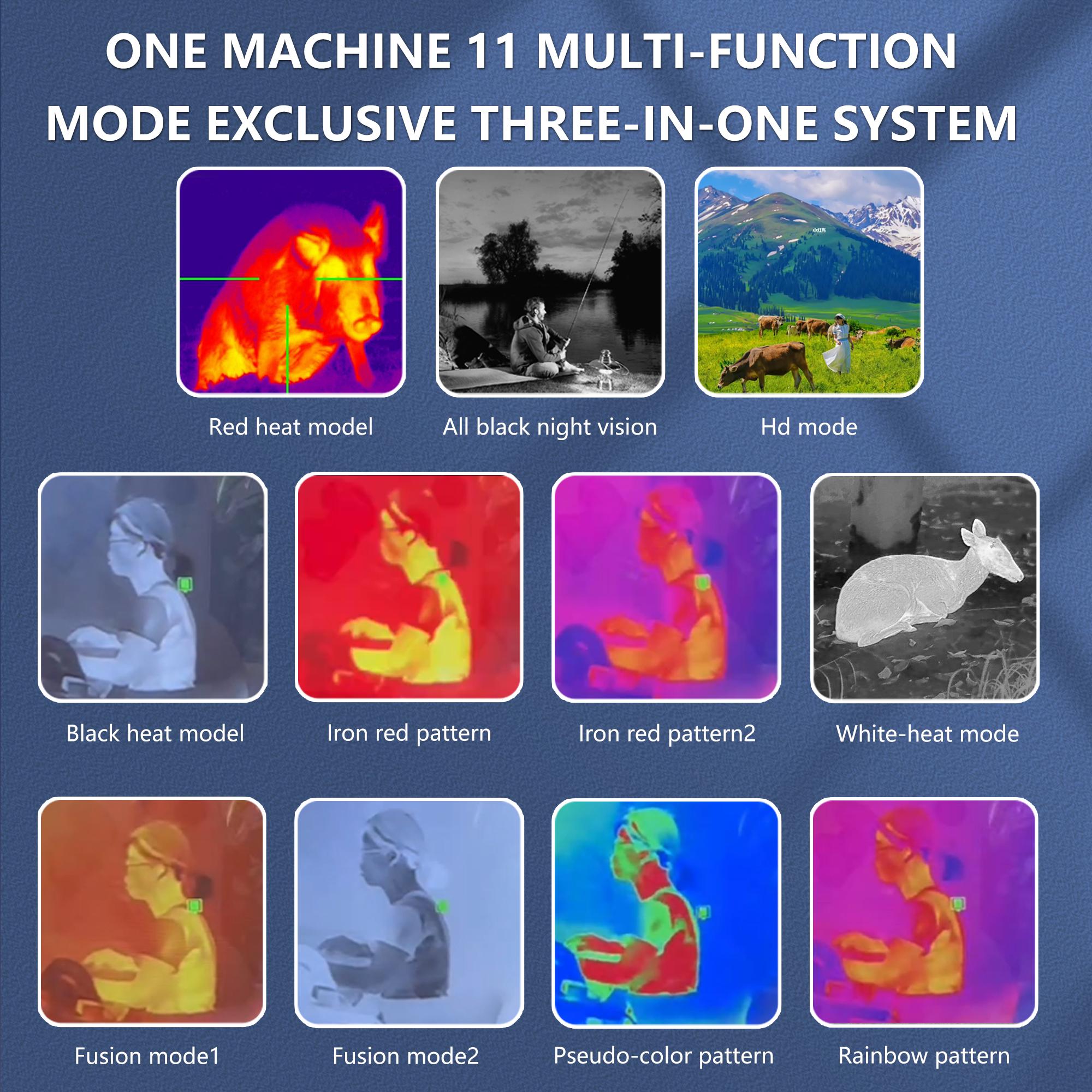

Thermal imagers detect the radiation emitted by objects above absolute zero (i.e., anything with a temperature greater than -273°C) and convert it into thermal images (also known as heat maps). These images display the temperature distribution of an object’s surface, allowing observers to see temperature differences in the form of a visual representation. This process helps in visualizing temperature patterns on the surface of objects, which is fundamentally different from the regular visible light images captured by ordinary cameras.
The thermal image reveals areas of heat, which are often invisible to the naked eye, and highlights hot and cold regions based on the infrared radiation they emit. This allows infrared thermal imaging to be used for a variety of applications, including surveillance, inspections, and diagnostics.
Features of Infrared Thermal Imaging
Infrared thermal imaging offers several unique features that distinguish it from traditional optical imaging:
1.Universal Emission of Infrared Radiation:
All objects with a temperature above absolute zero emit infrared radiation. This includes common objects like humans, animals, machines, and buildings. Even small temperature variations, which are invisible in visible light, can be captured by thermal imagers.
2.Transmission Through Smoke and Dust:
Unlike visible light, which can be obstructed by smoke, fog, and dust, infrared radiation can pass through these obstructions, making thermal imaging especially useful in challenging environments. For example, it can be employed in firefighting, search and rescue operations, and military applications to detect heat signatures through smoke or other obstructive factors.
3.Atmospheric Windows:
The infrared spectrum has specific wavelengths, typically 3-5 microns and 8-14 microns, known as atmospheric windows. These wavelengths are largely unaffected by the Earth’s atmosphere, which absorbs much of the visible light and near-infrared radiation. Therefore, infrared thermal imaging in these ranges is highly effective in observing objects in darkness or through environmental hazards like smoke, fog, or dust.
4.Non-contact and Remote Sensing:
Infrared thermal imagers allow for non-contact measurement of temperature, which makes them ideal for inspecting dangerous or hazardous environments without direct interaction. This capability also makes them incredibly valuable for remote sensing, where the temperature of distant objects can be assessed from a safe distance.
Infrared Thermal Imager: Definition and Working Principle
An infrared thermal imager is a device that uses infrared thermal imaging technology to detect the infrared radiation emitted by objects. The core principle of thermal imagers involves photoelectric conversion and signal processing. The infrared radiation emitted by objects is absorbed by the imager’s detector, which converts this radiation into an electronic signal. This signal is then processed and transformed into a video image or thermal image that represents the temperature distribution on the surface of the object.
Thermal imagers are available in two primary types:
- Refrigerated: These devices use cooling mechanisms to improve the performance of the detector, particularly in terms of temperature sensitivity.
- Non-refrigerated: These are typically more compact, less expensive, and use uncooled detectors, making them more accessible for various commercial applications.
The most advanced infrared thermal imagers can achieve temperature sensitivities of up to 0.03°C, which allows them to detect even minor temperature variations.
Applications of Infrared Thermal Imagers
Infrared thermal imagers have a broad range of applications across many industries and fields. Below are some of the key areas where thermal imaging technology is essential:
1.Electrical Installations and Power Systems:
Thermal imagers are extensively used in electrical inspections to identify potential hazards like overheating, loose connections, unbalanced loads, and short circuits. Early detection of these issues helps prevent fires, electrical failures, and downtime in critical systems.
2.Transformer Monitoring:
In power plants and substations, thermal imagers help detect issues such as overheating bushings, poor connections, and blocked cooling pipes in transformers. These problems, if left unaddressed, can lead to arcing, short circuits, or fire.
3.Motors and Generators:
Infrared thermal imaging can identify faults in motors and generators, such as overheating bearings, unbalanced loads, windings issues (short circuits or open circuits), and carbon brush malfunctions. Such issues can lead to equipment failure, system downtime, or even catastrophic accidents if not detected early.
4.Building Inspections:
Thermal imagers are valuable tools for building inspectors, helping to detect air leaks, moisture accumulation, blocked pipes, structural damage, and electrical faults in the walls and roofs of buildings. They can also be used to assess insulation performance, ensuring that buildings are energy-efficient and free from hidden damage.
5.Security and Surveillance:
Infrared thermal imaging is widely used in security applications for surveillance and perimeter monitoring. Thermal imagers allow security personnel to detect intruders or suspects even in complete darkness or in environments with poor visibility, such as in fog, smoke, or nighttime.
6.Firefighting and Forest Fire Monitoring:
Firefighters use thermal imagers to locate hot spots, fire sources, and victims trapped in smoke-filled environments. Similarly, thermal imagers are employed in forest fire monitoring to detect early signs of fires in dense forests, enabling faster response times.
7.Medical Diagnostics:
Thermal imaging has proven beneficial in medical diagnostics, such as in the detection of inflammation, poor blood circulation, muscle injuries, and certain cancers. Thermal imagers are also used in non-invasive scans of the body to detect fever, tissue damage, or nerve disorders.
8.Non-Destructive Testing (NDT) and Quality Control:
Infrared thermal imagers are used in non-destructive testing for materials inspection, where they help detect flaws, defects, and thermal anomalies in components without causing any damage to the materials. This is especially important in aerospace, automotive, and manufacturing industries to ensure product quality and safety.
9.Environmental Monitoring:
Thermal imagers are used for monitoring environmental conditions such as volcanic eruptions, landslides, and flooding. These tools can detect temperature anomalies, which may indicate geological activity or climatic changes, helping experts respond to natural disasters more effectively.
Conclusion
Infrared thermal imagers are powerful tools that enable users to visualize temperature variations in both natural and man-made environments. Their ability to detect heat signatures through smoke, fog, or darkness makes them invaluable in various applications, from industrial inspections to security surveillance and medical diagnostics. With their unique capability to visualize temperature differences, these devices provide essential insights that would otherwise be hidden from the human eye, allowing for early problem detection, enhanced safety, and efficient operations across numerous industries.
