Golf laser rangefinder with the latest design, Slope Tech, Fast Flag-Lock, 6X Magnification, 1000m rangefinder
R32 Rangefinder

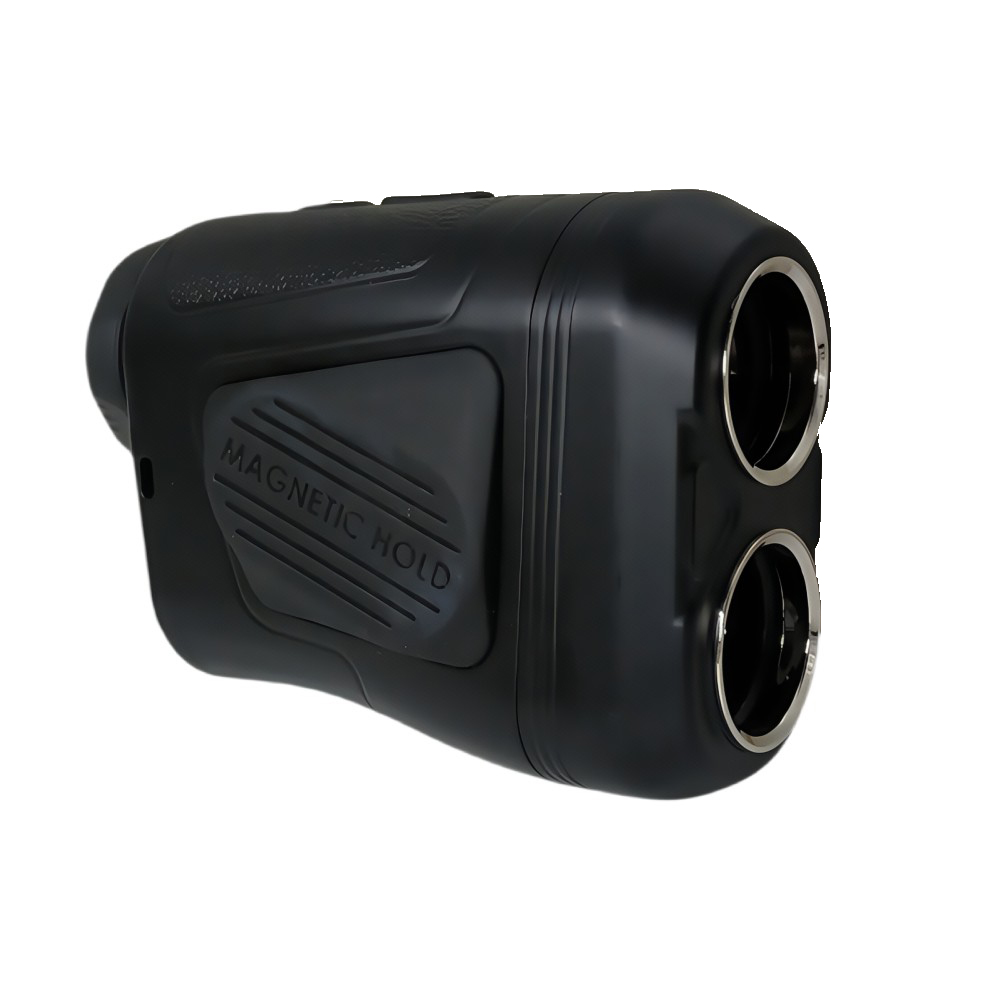

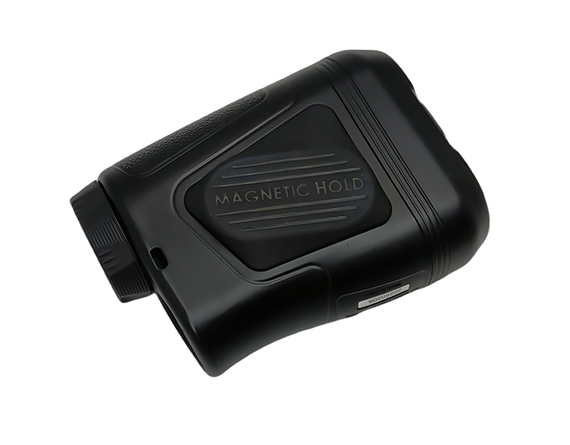

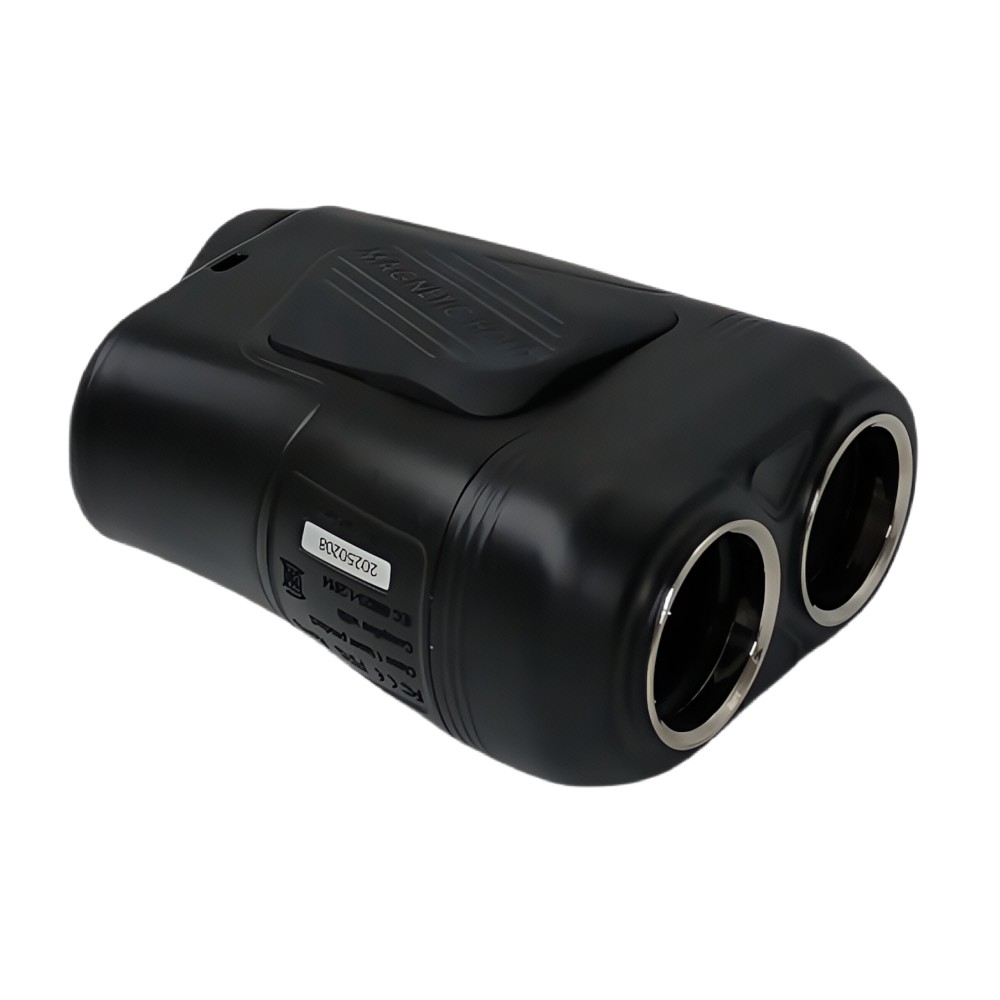

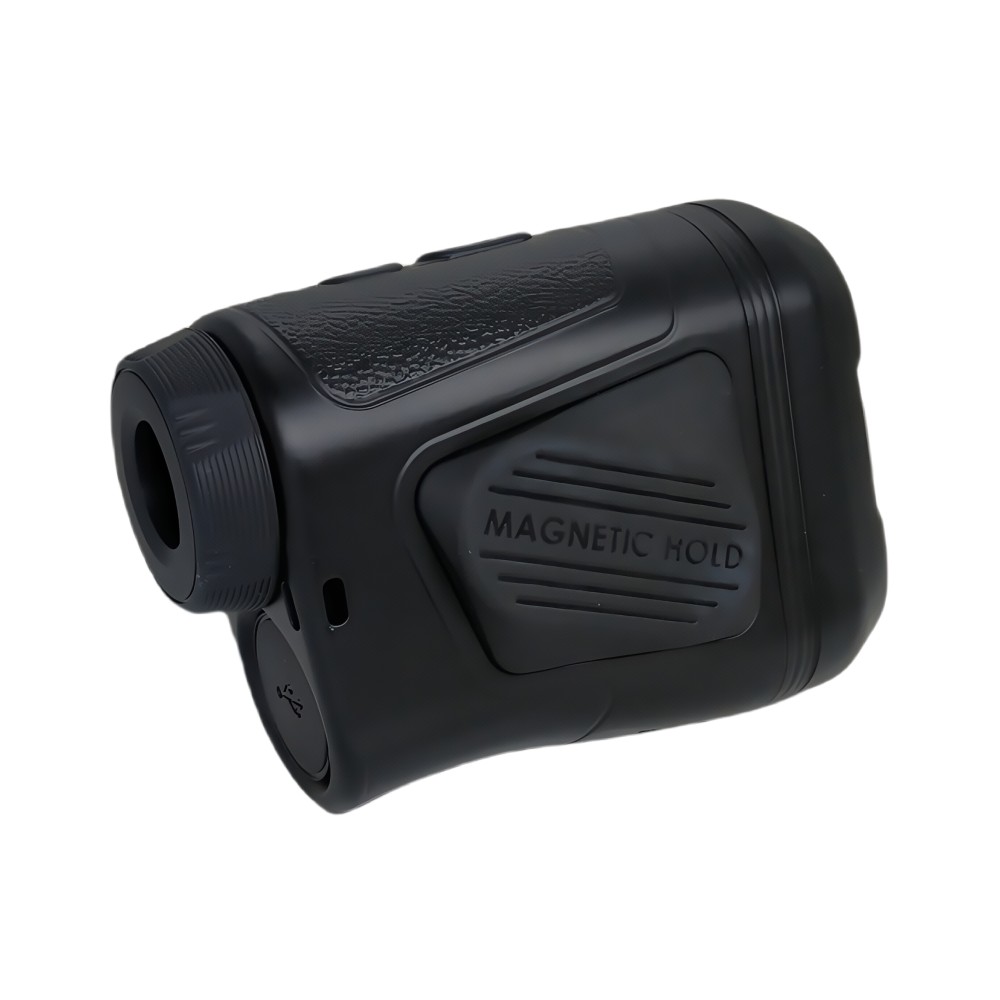

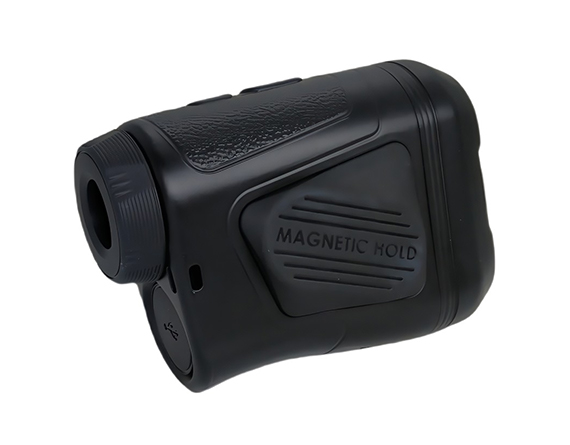

R32 Multi-function Golf Laser Rangefinder Magnetic Adsorption with Angle Switch for Hunting
5 RANGING MODES FOR GOLFING:
Mode 1: Normal distance measurement mode
Mode 2: Normal golf mode
Mode 3: Golf slope measurement mode
Mode 4: Hunting bow distance measurement mode
Mode 5: Speed measurement mode
Product introduction
R32 multi-function golf laser rangefinder is a portable photoelectric instrument that integrates telescope and laser angle measuring instrument, combining the functions of telescope, golf rangefinder and goniometer.
Specification
- Tab1
|
Performance
|
5Y to 1000Y at visibility 5km
|
|
Rangefinder Range
|
5-1000Y
|
|
Rangefinder Accuracy
|
5-500M（Y） ±1M(Y)
|
|
500-1000M(Y) ±2M(Y)
|
|
|
±1M(Y)±0.2%
|
|
|
Inclinometer range
|
-45° to +45°
|
|
Inclinometer Accuracy
|
±2°
|
|
Distance unit settings
|
meters yards
|
|
Angle unit settings
|
degrees
|
|
Data displayed
|
range, elevation, horizontal distance,height difference, slope adjusted distance
|
|
Function limitation of slope measurement in golf competition
|
slope switch
|
|
Vibration prompt function
|
Yes
|
|
（First target priority）
|
Yes
|
|
Flag locking distance
|
≤300M
|
|
Slope
|
Yes
|
|
Scan
|
Yes
|
|
Battery condition
|
Yes
|
|
Magnification X Obj Lens:
|
6 x 24
|
|
Optics Magnification
|
6x
|
|
Objective diameter
|
24mm
|
|
Material of the Prism
|
BK4
|
|
Eyepiece Diameter
|
15mm
|
|
Angle of view
|
7°
|
|
Field of view (at 1000m/yds)
|
113m/yds
|
|
Exit pupil
|
3.5mm
|
|
Exit pupil Relief
|
15±1mm
|
|
Lens Coating:
|
Multi-Coated
|
|
Diopter compensation
|
± 4dpt.
|
|
Laser
|
class 1, eye-safe, 905nm
|
|
Maximum measuring time
|
≤0.5s
|
|
Operating temperature
|
-10 to 50°C
|
|
Waterproof
|
IPX54
|
|

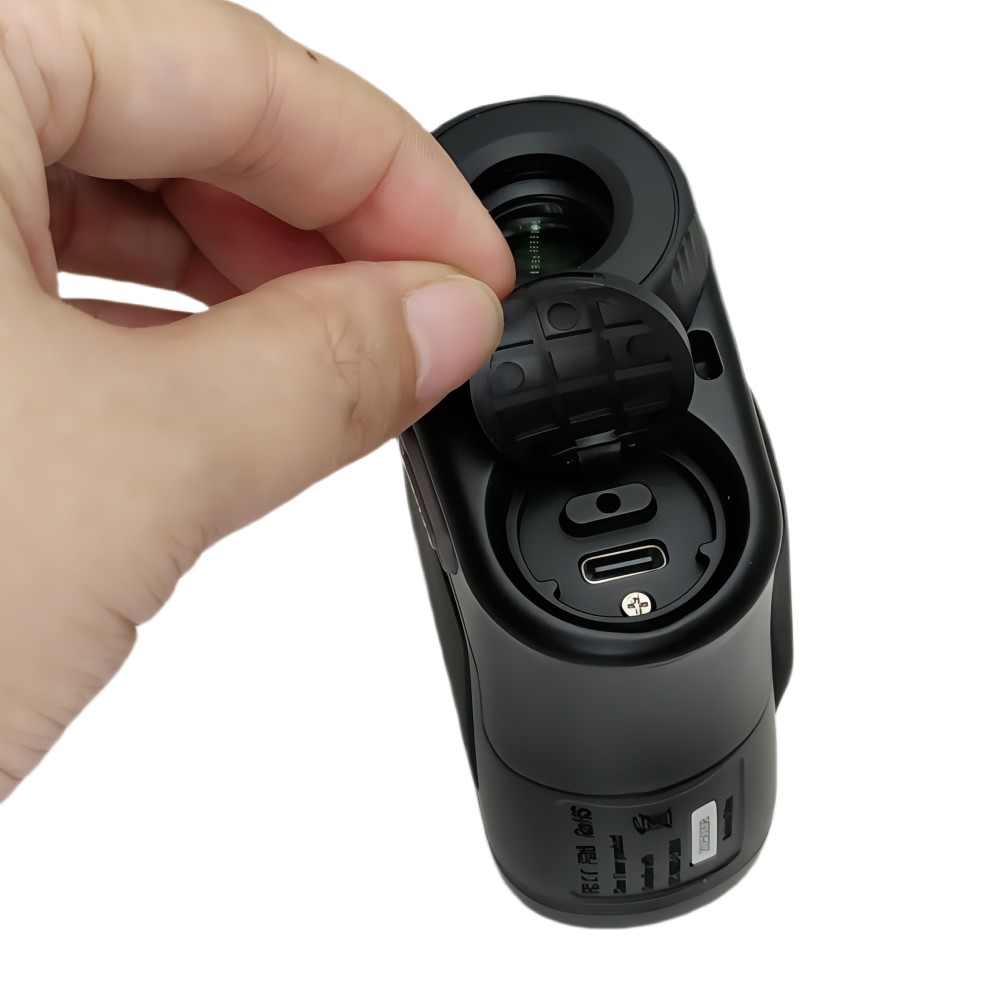

Battery
|
rechargeable lithium battery capacity 450mA/h
|
|
Weight (with battery)
|
160g±5g
|
|
Dimensions
|
101*75*39 mm
|
Product Description
EXCELLENT PROFESSIONAL GOLF RANGEFINDER

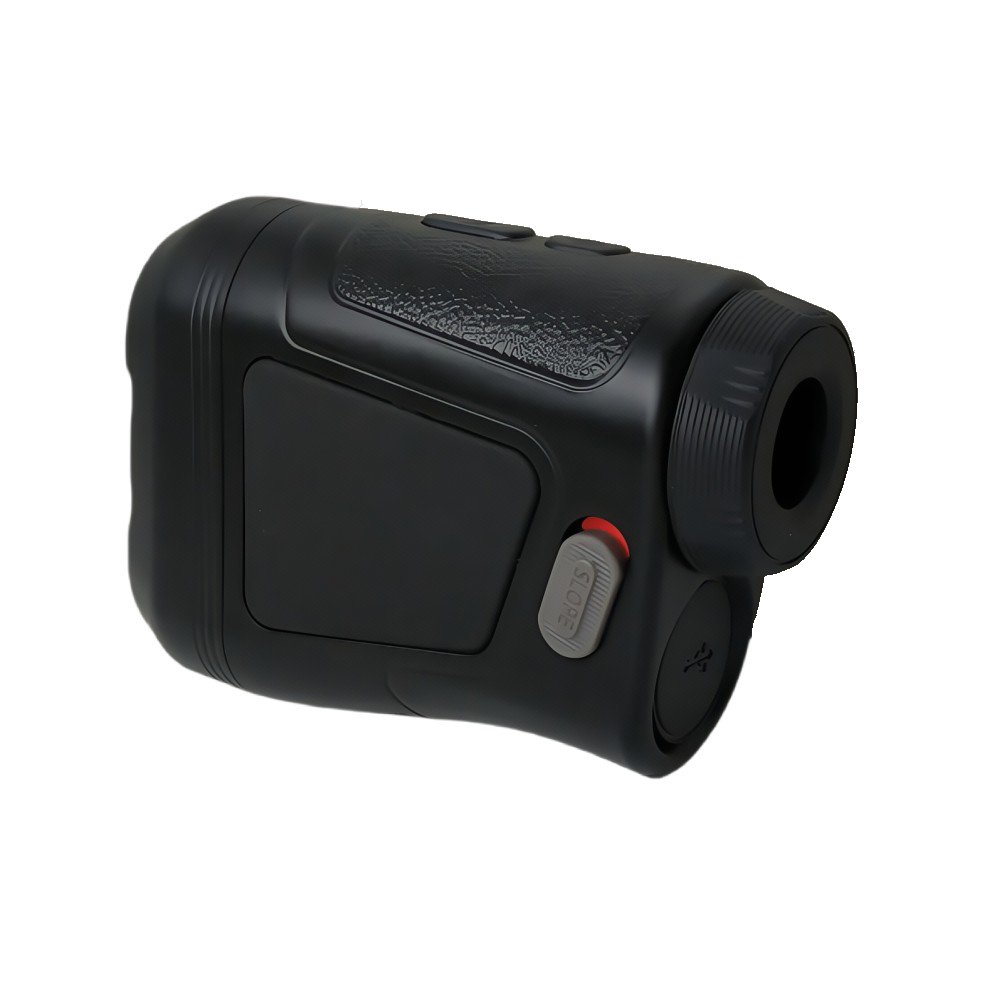

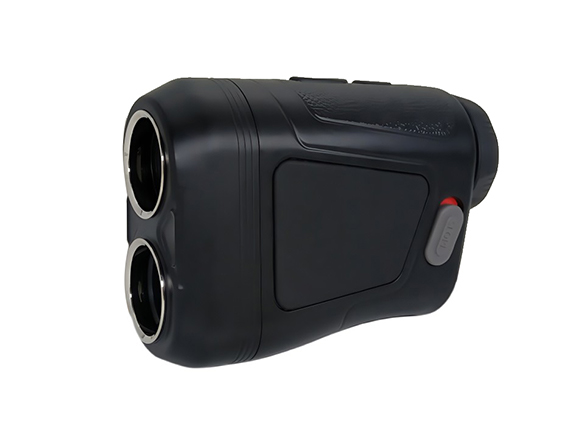

WITH ANGLE SWITCH
When the angle switch is turned on, it is the golf slope measurement mode (M3), which displays more readings than the normal golf mode (M2), including slope measurement height and slope measurement adjustment distance.
FAST FOCUS SYSTEM & ACCURATE READINGS
laser rangefinder adopts the advanced target acquisition system that ensures you receive the accurate yardage to the flag or desired location. Provides fast measurement with ±1yd accuracy, this golf range finder also with flag seeker tech to accurately measure target subjects. Perfect for tournament legal golf rangefinders.

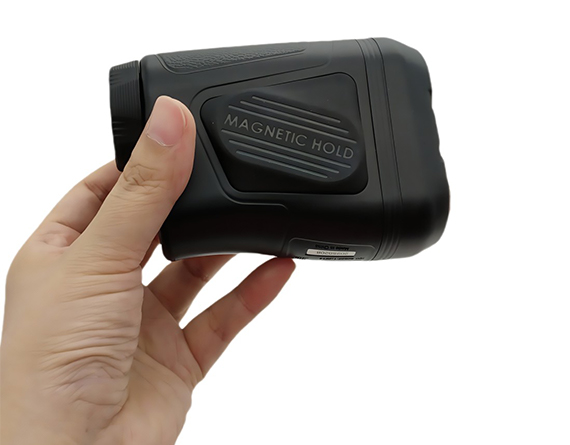

PORTABLE AND CONVENIENT DESIGN
With a compact size of 10 x 7.5 cm, this golf rangefinder is easy to carry and can be easily attached to your golf bag or belt, making it the perfect golfing companion.
Picture display
