In what situations is a monocular used?

What Does Monocular Mean?

A monocular is a compact optical device designed to magnify distant objects, making them appear closer and more detailed. Similar to a telescope, a monocular uses lenses or mirrors that gather and focus light (or other forms of radiation in digital, night vision, or thermal models) to create an image. If you’re a novice in the world of telescopes, a monocular is the optimal choice to start with. Compared to binoculars, a monocular is much easier to operate. You don’t have to adjust the focal lengths of two separate barrels, which simplifies the process significantly. Unlike binoculars, which have two eyepieces for viewing with both eyes, monoculars are designed to be used with one eye. As a result, monoculars are typically smaller, lighter, and more cost-effective than binoculars, making them a popular choice for many outdoor and specialized applications.

A (Very) Brief History of Telescoping Optics

The origins of telescoping optics can be traced back to the early 17th century. The first telescopic device is often attributed to Hans Lippershey, a German-born optician. Lippershey’s initial design consisted of two simple lenses held together to magnify distant objects. He called it a “looker.” In 1608, Lippershey applied for a patent for his invention with the Dutch government, but the patent was denied because the design was considered too simple. However, the publication of his design led to significant advances in the field of optical magnification.

In 1609, the renowned Italian scientist Galileo Galilei improved upon Lippershey’s idea and created a telescope that could magnify objects up to 10 times. Galileo’s telescope was primarily used for astronomical observations, but the basic principles of telescopic optics quickly found applications in other fields, including navigation and military use. Throughout the 1700s, telescopes and other magnified optics were widely used for naval exploration and military reconnaissance.

For handheld monocular telescopes, the maximum magnification should not exceed 12 times, and the maximum objective diameter should not exceed 60mm, otherwise it needs to be used with a tripod.

What Do the Numbers on a Monocular Mean?

When shopping for a monocular, you’ll typically see two key numbers in the specifications, such as 8×33mm. These numbers refer to the magnification power and the diameter of the objective lens. Understanding these specifications is crucial for choosing the right monocular for your needs.

• Magnification (x):This number indicates how much larger an object will appear through the monocular compared to what you see with the naked eye. For example, an 8x monocular will make objects appear 8 times larger. For example, using an 8x monocular telescope to look at a target at 800 meters is equivalent to looking at a target at 100 meters with your eyes.Higher magnification allows you to see objects from a greater distance but can also reduce the field of view, making it harder to locate and track moving objects. Additionally, higher magnification often leads to a narrower field of view and may require a steadier hand to maintain a clear image.
• Objective Lens Diameter (mm):The second number refers to the diameter of the objective lens farthest from your eye, typically measured in millimeters. A larger objective lens allows more light to enter the monocular, resulting in a brighter and clearer image. However, larger lenses can also make the monocular bulkier and harder to stabilize, which can diminish the benefits of magnification. The quality of the lens itself also plays a significant role in image clarity.

While higher magnifications and larger objective lenses offer certain advantages, they also come with trade-offs. For example, larger monoculars can be more challenging to hold steady for prolonged periods, reducing the stability and clarity of the image. Choosing the right balance of magnification and objective lens size is essential to optimize both image quality and ease of use.

Uses for Monoculars

One of the greatest advantages of a monocular is its compact size. Due to their lightweight and space-efficient design, monoculars are ideal for quick scanning and short-term observation. Many models are small enough to fit into a pocket, making them convenient for a variety of outdoor activities. While binoculars are often preferred for extended use, monoculars excel in situations that require portability and one-handed operation. Here are some common uses:

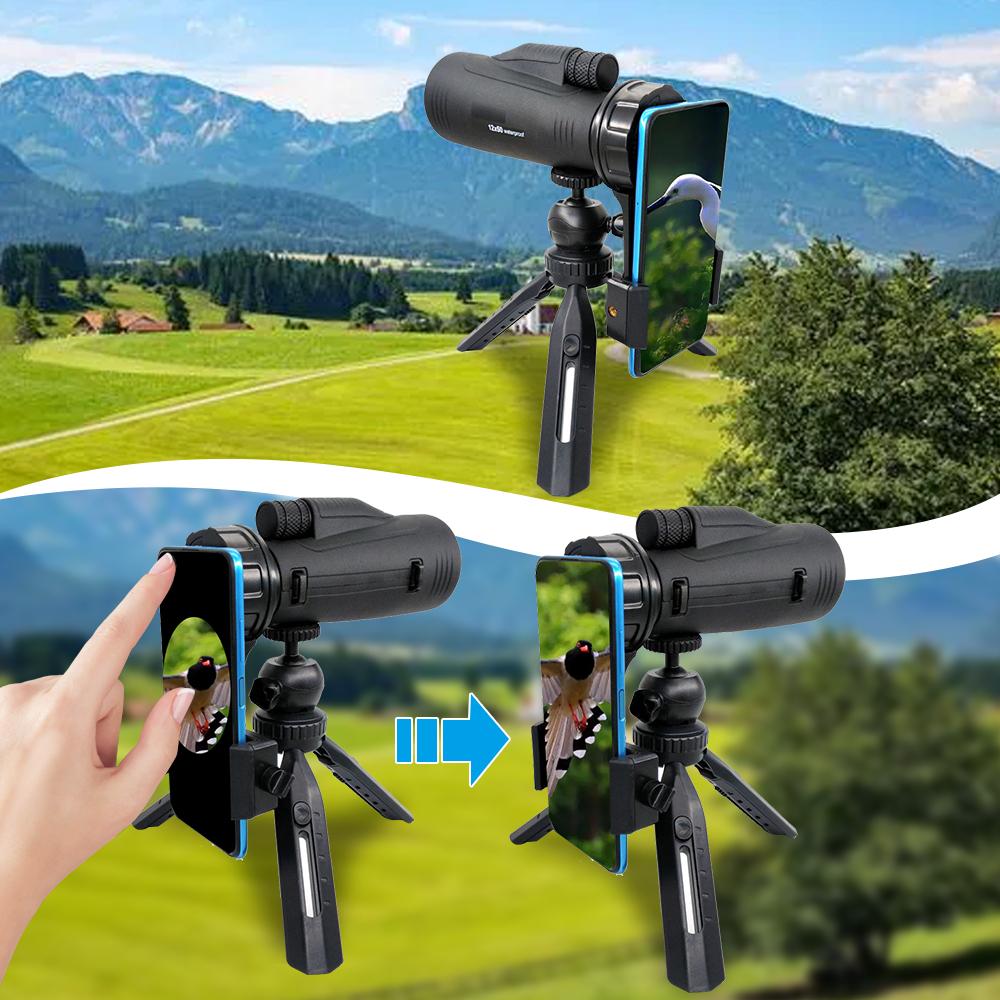

• Equip with a tripod and a phone clip. Use the phone clip to hold the phone and align the phone’s camera with the eyepiece of the monocular. Then you can observe the view through the monocular on the phone screen and take photos for sharing. A tripod can make the shooting more stable. Currently, most merchants will include a phone clip and a tripod when selling monoculars. They are affordable, adding a lot of fun to your telescope – using experience and serving as a cost – effective way to use a telescope. When choosing a phone clip, pay attention to its quality. It should fully surround the eyepiece to block stray light and have a strong clamping force to prevent the phone from falling. You can refer to my store. I’ve selected 6 of the best phone clips from dozens of options. They offer high cost – performance and excellent shooting effects.
  • Hiking and Camping:Monoculars are perfect for hikers and campers who need to quickly observe distant objects without the bulk of binoculars. Their small size allows them to be easily carried in a backpack or pocket.
  • Hunting:Hunters often use monoculars to scout for wildlife. They are lightweight and portable, allowing for quick observation without carrying heavy equipment. Monoculars are particularly useful for short-range observation and situational awareness.
  • Boating:Boaters use monoculars for navigation and spotting distant objects on the water. Their compact design makes them ideal for marine environments, where space is often limited.
  • Spectator Sports and Performances:Monoculars are commonly used by spectators at concerts, sporting events, and theater performances. The lightweight nature of monoculars makes them easy to carry and use for occasional viewing.
  • Surveillance and Law Enforcement:Specialized monoculars, including digital, night vision, and thermal models, are often used in law enforcement and military applications. These devices help officers and soldiers conduct surveillance and spot targets in low-light conditions or complete darkness.

  Benefits of Using a Monocular vs. Binoculars

  There are several key advantages to using a monocular rather than binoculars, particularly in outdoor and recreational activities:

  • Portability and Size:Monoculars are incredibly compact and lightweight, making them easy to carry on outdoor excursions. Whether you’re hiking, camping, or birdwatching, a monocular won’t weigh you down like a pair of binoculars might.
  • One-Eyed Viewing:Since monoculars are designed for use with just one eye, they allow users to maintain a wider field of view with the other eye. This is especially useful for maintaining situational awareness in dynamic environments.
  • Ease of Use:Monoculars are straightforward to use, with simple focus adjustments and typically one-handed operation. This makes them an excellent choice for quick observations without needing to adjust a more complex device like binoculars.
  • Affordability:Monoculars are generally less expensive than binoculars, which can be a significant advantage for those on a budget. You can often find high-quality monoculars for a fraction of the price of a comparable pair of binoculars.
  • Convenience in Tight Spaces:Because monoculars are smaller and lighter, they can be used in tight spaces or situations where binoculars might be too bulky. For example, when navigating through dense forest or when trying to avoid detection during surveillance, a monocular is a more practical tool.


    When Should You Choose Binoculars Over a Monocular?

    While monoculars are ideal for many applications, there are certain situations where binoculars might be a better option. For example:

    • Extended Observation:If you need to observe distant objects for long periods of time, binoculars may be more comfortable since they allow you to use both eyes. This reduces eye strain and provides a more immersive experience.
    • Birdwatching and Wildlife Viewing:Bird watchers and wildlife enthusiasts often prefer binoculars for their superior field of view and ability to keep both eyes open while scanning.
    • Scouting or Surveillance in Open Areas:When you need to track objects over a wide area, binoculars provide better depth perception and a more stable image, especially when combined with higher magnification.

    Conclusion

    Monoculars are versatile, portable, and affordable optical devices that are well-suited for a wide range of activities, from hiking and hunting to surveillance and military operations. Whether you’re observing nature, attending an outdoor event, or conducting nighttime surveillance, a monocular can provide the magnification and clarity you need without the bulk of binoculars. Understanding the specifications, such as magnification and objective lens size, will help you choose the best monocular for your needs and ensure a clear, enjoyable viewing experience.
