FFP scopes place the reticle in front of the erector. They are more specifically designed for tactical shooters and hunters where the distance to target changes and is often unknown. With an FFP reticle, the size of the reticle will appear to change as the scope’s magnification is changed. And it helps with calculating bullet drop and wind calls.
6-24X56 Hunting popular Rifle Scope

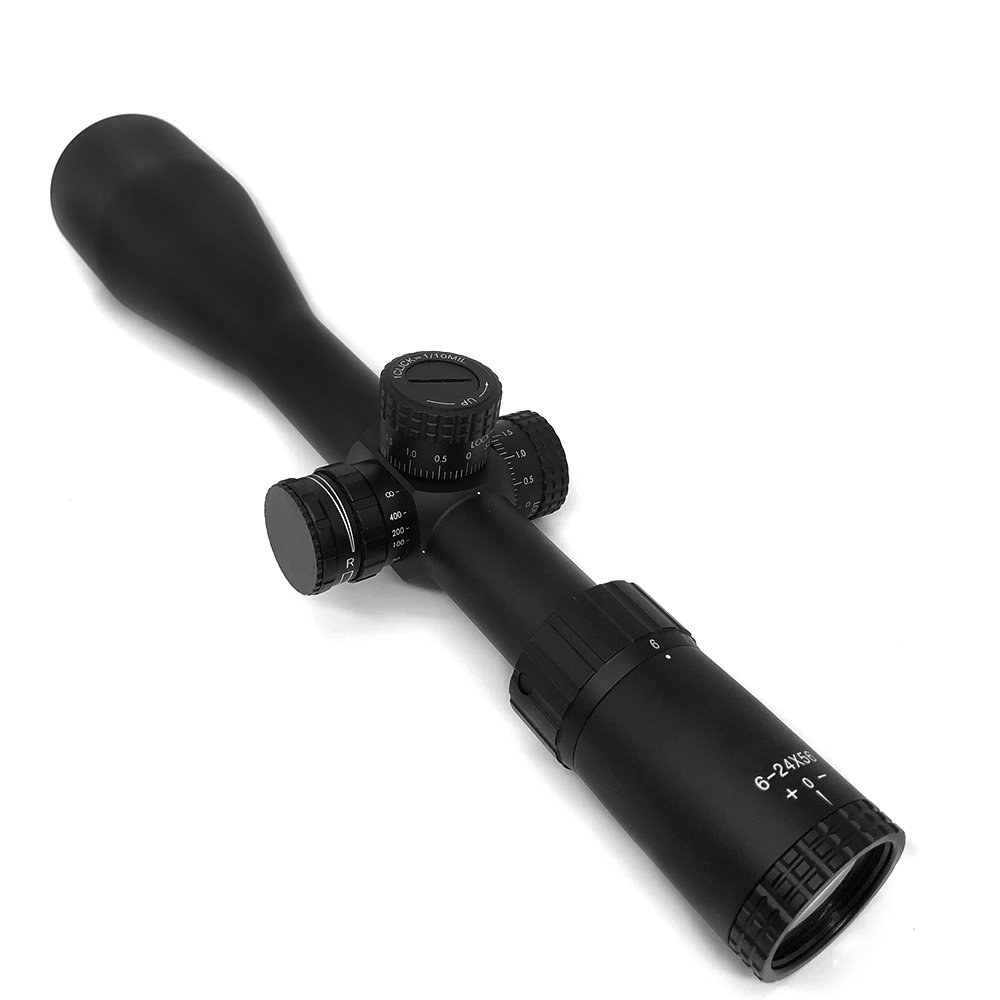

6-24 X 56 First Focal Plane Tactical Scopes For Long Range Shooting
This 6-24×56 FFP riflescope is designed especially for tactical shooting and hunting. HD bak4 prism and fully multi-coated lenses transmit a crisp, bright sight picture. The first focal plane, glass-etched reticle keep subtensions accurate throughout the 4x zoom range.
Product introduction
- Fit for long range shooting, big game hunting, sniper shooting, etc.
- First Focal Plane design for direct size conversion of target.
- Premium optical performance with super bright view and genuine color rendering.
- Extra long eye-relief and large field of view for comfortable aiming and targeting searching
- Ruggedly constructed out of 30mm ONE-PIECE TUBE for ensured accuracy, stand up to repeated 1000G shock test.
- Tactical-Style tool-free Windage and Elevation Turrets for convenient alignment and zeroing.
Specification
- Tab1
| Magnification | 6-24x |
| Objective diameter | 56mm |
| Maintube diameter | 30mm |
| Eyepiece Field of view | 20mm |
| Diopter range +/- | 2 |
| Exit Pupil Distance (mm) | 101.2 |
| Standard Klick value for E/W (MOA) | 0.125 |
| Total travel elevation (@ 100 yds) | ≥ 50MOA |
| Total travel windage (@ 100 yds) | ≥ 50MOA |
| Parallax Compensation | 25 yds. – ∞ |
| Parallax compensation type | Side focus |
| Fast focus eyepiece | yes |
| Sealing gas used | Nitrogen |
| Clear aperture min magnification (mm) | 50 |
| Clear aperture max magnification (mm) | 56 |
| Eff. exit pupil diameter @ min. magnification ± 3 % | 8.33 |
| Eff. exit pupil diameter @ max. magnification ± 3 % | 2.33 |
| Maximum resolution in Arc. Second (min. Magnification) | 4 |
| Maximum resolution in Arc. Second (max. Magnification) | 3 |
| Range of Function temperature (Unit can still be operated) | -25°C/+55°C |
| Storage temperature | -40C to +85C |
| Range of Dioptric compensation +/- dpt | 2 |
| Permissible backlash Dioptric Compensation | <0.25dpt |
| objective field of view @ 100m min magnification (ft @100yds) | 18.2 |
| objective field of view @ 100m max magnification (ft@100yds) | 4.5 |
| Change of impact point after change of magnification (MOA) | 0.75 |
| Centering Reticle, full Field of View | ± 7 % |
| Straightening of the Reticle | ± 2 ° |
Product Description
FFP scopes place the reticle in front of the erector.
Fit for long range shooting, big game hunting, sniper shooting, etc
- Fit for long range shooting, big game hunting, sniper shooting, etc.
- First Focal Plane design for direct size conversion of target.
Premium optical performance with super bright view and genuine color rendering.
- Extra long eye-relief and large field of view for comfortable aiming and targeting searching
- Ruggedly constructed out of 30mm ONE-PIECE TUBE for ensured accuracy, stand up to repeated 1000G shock test.
- Tactical-Style tool-free Windage and Elevation Turrets for convenient alignment and zeroing.
