SECOZOOM 5-25x56mm riflescope is designed to provide exceptional quality, performance, and precision at a tremendous value. It is an incredibly versatile optic that is well-suited for both hunting and shooting training applications.
5-25x56 Illuminated Reticle Scope 30mm Tube
5x To 25 x56 Practice Scopes For Wild Hunting Training
High precision scope with 5-25x magnification, a 56mm objective lens.
FFP SFP two option.
Constructed from a single piece of aircraft-grade aluminum, It is built to be strong and shockproof.
Product introduction
High precision scope with 5-25x magnification, a 56mm objective lens.
It has two options. Functionally designed first focal plane and second focal plane rangefinder reticle, with easy-to-read ranging information that remains constant regardless of magnification, for faster range estimation and holdover correction
Dial controlled reticle illumination in both red and green with multiple brightness intensities, for better reticle visibility at night or in low light in environments
Aircraft grade aluminum construction with a 30mm sealed, nitrogen charged tube for resistance to water and fog
Specification
- Tab1
| Magnification Low | 5 |
| Magnification High | 25 |
| Objective diameter | 56 |
| Maintube diameter | 30 |
| Eyepiece Field of view | 18 |
| Diopter range +/- | 2 |
| Exit Pupil Distance (mm) | 101.2 |
| Standard Klick value for E/W (MOA) | 0.125 |
| Turret adjustments knob | yes |
| Total travel elevation (@ 100 yds) | ≥ 50MOA |
| Total travel windage (@ 100 yds) | ≥ 50MOA |
| Parallax Compensation | 25 yds. – ∞ |
| Parallax compensation type | Side focus |
| Fast focus eyepiece | yes |
| Sealing gas used | Nitrogen |
| Clear aperture min magnification (mm) | 50 |
| Clear aperture max magnification (mm) | 56 |
| Eff. exit pupil diameter @ min. magnification ± 3 % | 10 |
| Eff. exit pupil diameter @ max. magnification ± 3 % | 2.24 |
| Maximum resolution in Arc. Second (min. Magnification) | 4 |
| Maximum resolution in Arc. Second (max. Magnification) | 3 |
| Range of Function temperature (Unit can still be operated) | -25°C/+55°C |
| Storage temperature | -40C to +85C |
| Range of Dioptric compensation +/- dpt | 2 |
| Permissible backlash Dioptric Compensation | <0.25dpt |
| objective field of view @ 100m min magnification (ft @100yds) | 19.5 |
| objective field of view @ 100m max magnification (ft@100yds) | 3.9 |
| Change of impact point after change of magnification (MOA) | 0.75 |
| Centering Reticle, full Field of View | ± 7 % |
| Straightening of the Reticle | ± 2 ° |
Product Description
High precision scope with 5-25x magnification, a 56mm objective lens.
Dial controlled reticle illumination in both red and green with multiple brightness intensities, for better reticle visibility at night or in low light in environments
The Christmas-tree style reticle ensures accurate subtensions throughout the magnification range, making it easy to measure and range targets. Additionally, the fast focus eyepiece allows for quick and easy reticle focusing. Turrets and scoreboards can be customized.
small size
small size: The compact size makes it easy to take with you anywhere, and it will not easily be held in your hands during riding.
waterproof: Made of high quality material, waterproof and wearresisting, durable in use.
low light: Our sights are made of high quality matte, so it will not irritate your private part with a much better night vision for you.
The fully multi-coated lenses ensure superior light transmission for bright, high-contrast images.

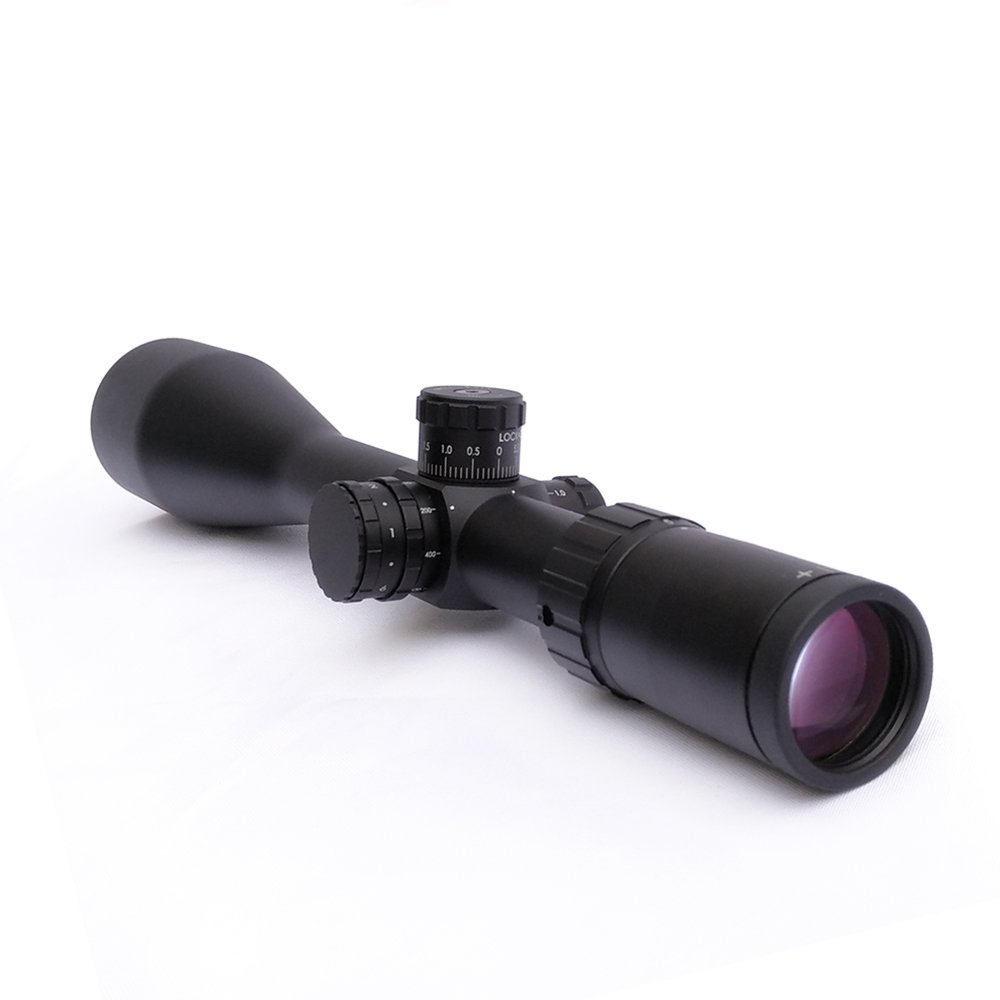

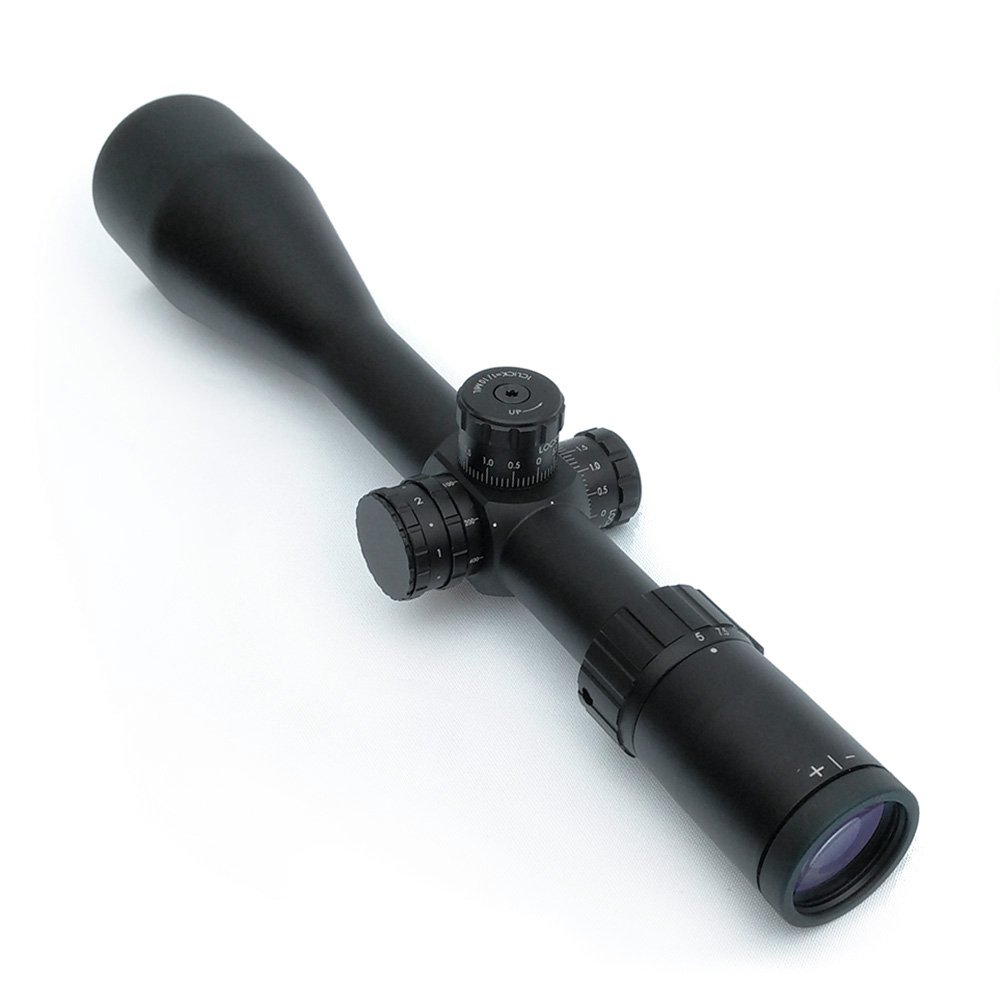

Picture display
