Fully-Multi coated lenses can deliver an amazing 95 percent light transmission across 300 percent more of the visual light spectrum for a high-contrast and color accurate picture, ensuring that the picture stays visible by keeping fog, rain and dirt off the lenses so you never miss a moment.

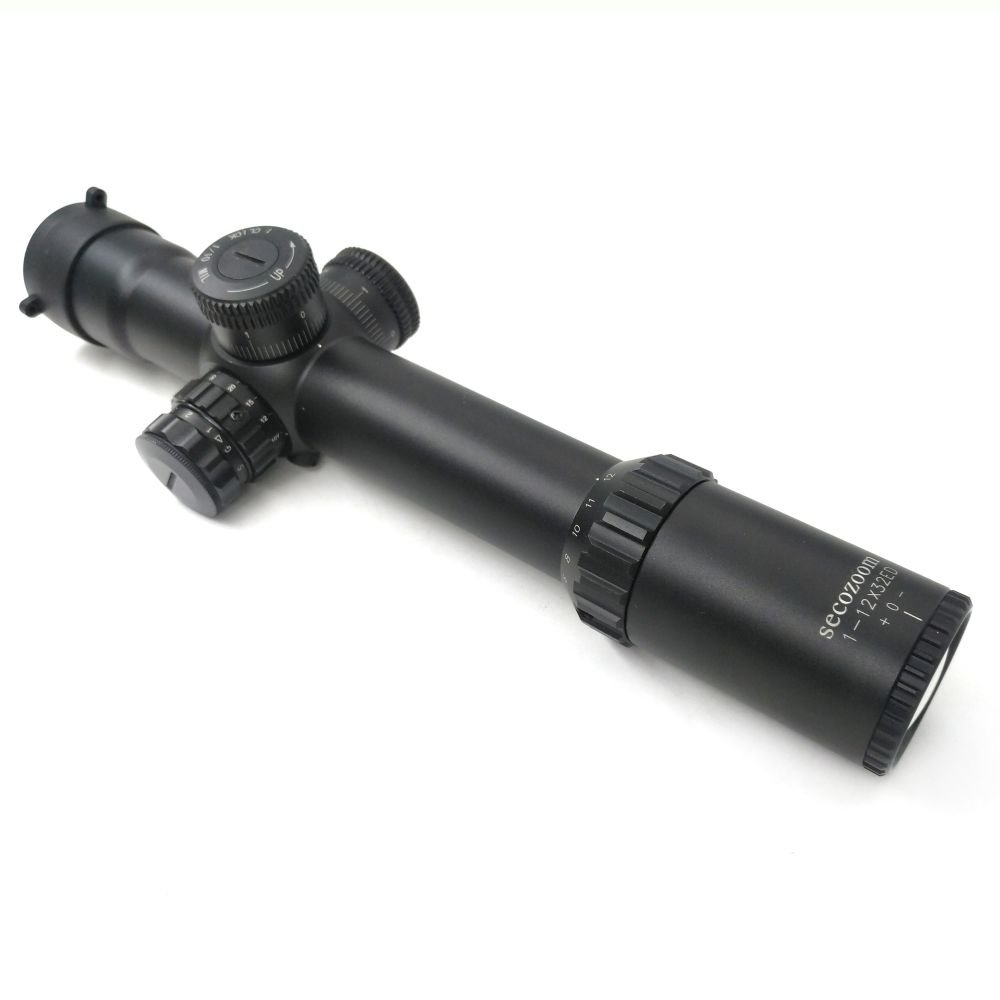

1-12x30 ED FFP Optical Scope
1-12×30 ED FFP OEM Optics Reticle Optical Scope with 1.38in Tube AOE Red and Green Illuminated Scope
Fully-Multi coated lenses
Special Inner and Outer Structure
Product introduction
* Forged & milled T6061 aircraft aluminum bodies* Impact resistance to more than 3000 times the force of gravity.
* ED glass lenses of optically flawless transmissivity, composited to aspheric lens elements to eliminate chromatic aberrations with apochromatic lense with extra low dispersion glass.
* Fully Multi-coating, raises the interstellar optical devices.
* Massive 35mm primary objective lenses offer nearly triple the light transmission area of lesser designs.
* With long eye relief and an ultra-forgiving eye box, you’ll be able to quickly get a sight picture and acquire your target. The fast focus eyepiece allows quick and easy reticle focusing.
* Vaporless, fogless, mirageless- unaffected by atmospheric ranges from below sea level to 5 miles above it.
* waterproof for marine-ops, dustproof for desert warfare & ergonomically compatible with arctic gloves or desert heat.
* Revolutionary front and rear reticle focal plane design dramatically reduces parallax & provides an immovable reticle plane with variable power accuracy identical to fixed power designs.
* Capped reset turrets are finger adjustable with clicks that can be reset to zero after sighting in.
* Variable power illumination to the reticle-red and green and black
Read More
Specification
- Tab1
|
Model
|
1-12×30 SFP
|
1-12×30 FFP
|
1-12×30ED SFP
|
1-12×30 ED FFP
|
|
Power
|
1×-12×
|
1×-12×
|
1×-12×
|
1×-12×
|
|
Objective Diameter (mm)
|
30
|
30
|
30
|
30
|
|
Ocular lens diameter (mm)
|
37
|
37
|
37
|
37
|
|
Ocular length (mm)
|
68
|
68
|
68
|
68
|
|
Field of View (ft@100yds)
|
110-9.2
|
97.2-8.1
|
110-9.2
|
97.2-8.1
|
|
Filed of View (m/100m)
|
36.7-3.1
|
32.4-2.7
|
36.7-3.1
|
32.4-2.7
|
|
F.O.V. angle (°)
|
20.8o-1.75o
|
18.4o-1.55o
|
20.8o-1.75o
|
18.4o-1.55o
|
|
Exit Pupil (mm)
|
11-2.5
|
11-2.5
|
11-2.5
|
11-2.5
|
|
Coating
|
FMC
|
FMC
|
ED FMC
|
ED FMC
|
|
Number of lens
|
13
|
13
|
13
|
13
|
|
Mount length (mm)
|
151mm
|
159.5mm
|
151mm
|
159.5mm
|
|
Focus type
|
||||
|
Parallax
|
±0.125
|
±0.125
|
±0.125
|
±0.125
|
|
Eye relief (in)
|
5-3.66
|
5-3.5
|
5-3.66
|
5-3.5
|
|
Type of reticle
|
red and green illumination reticle
|
red and green illumination reticle
|
red and green illumination reticle
|
red and green illumination reticle
|
|
Mian body diameter (in)
|
1.18
|
1.38
|
1.18
|
1.38
|
|
Ocular cell diameter (in)
|
1.77
|
1.77
|
1.77
|
1.77
|
|
Eye guard
|
YES
|
YES
|
YES
|
YES
|
|
Diopter compensation
|
-3～+2
|
-3～+2
|
-3～+2
|
-3～+2
|
|
movement range
|
±60
|
125
|
±60
|
125
|
|
Length (mm)
|
292
|
292
|
292
|
292
|
|
Water proof @ 300mm deep and 54℃
|
YES
|
YES
|
YES
|
YES
|
|
Fog proof
|
YES
|
YES
|
YES
|
YES
|
|
Impact resistance
|
2000G
|
2000G
|
2000G
|
2000G
|
|
Weight (G)
|
640
|
640
|
640
|
640
|
Product Description
Fully-Multi coated lenses
Special Inner and Outer Structure
* The scope includes a Special inner and outer structure to control the interaction between the inner and outer tubes of the scope, which provides long lasting reliability in these interaction and ensures the reticle would not rotate when adjusting.

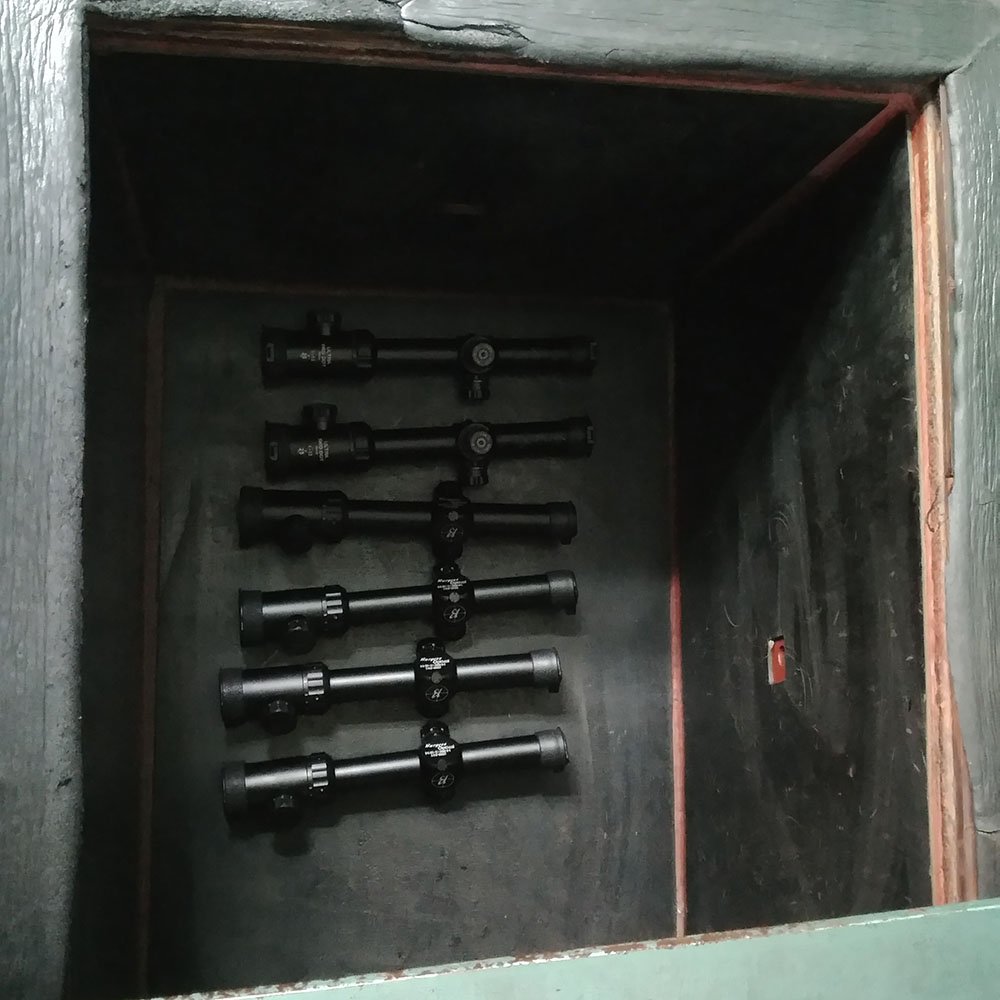

* Built on an ultra strong 1 inch machined-aluminum tube. Completely sealed and 100% nitrogen filled makes it fog and rain proof.
This scope could be used under any weather condition.
12.5x zoom ranges

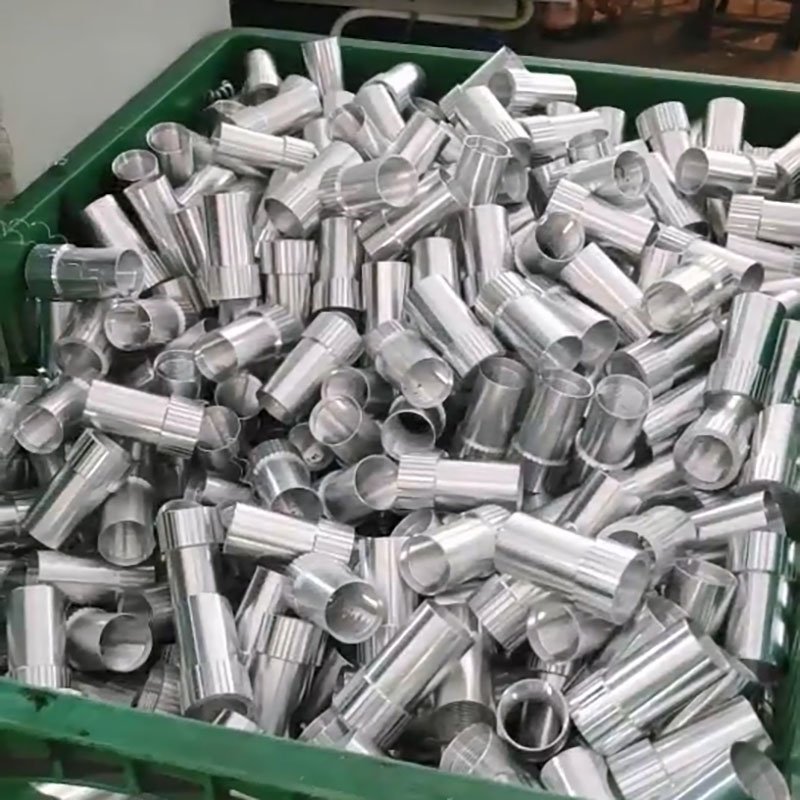

* Forged & milled T6061 aircraft aluminum bodies
* Impact resistance to more than 3000 times the force of gravity.
* ED glass lenses of optically flawless transmissivity, composited to aspheric lens elements to eliminate chromatic aberrations with apochromatic lense with extra low dispersion glass.
* Fully Multi-coating, raises the interstellar optical devices.
100% waterproof
* Massive 35mm primary objective lenses offer nearly triple the light transmission area of lesser designs.
* With long eye relief and an ultra-forgiving eye box, you’ll be able to quickly get a sight picture and acquire your target. The fast focus eyepiece allows quick and easy reticle focusing.
* Vaporless, fogless, mirageless- unaffected by atmospheric ranges from below sea level to 5 miles above it.
* waterproof for marine-ops, dustproof for desert warfare & ergonomically compatible with arctic gloves or desert heat.
* Revolutionary front and rear reticle focal plane design dramatically reduces parallax & provides an immovable reticle plane with variable power accuracy identical to fixed power designs.
